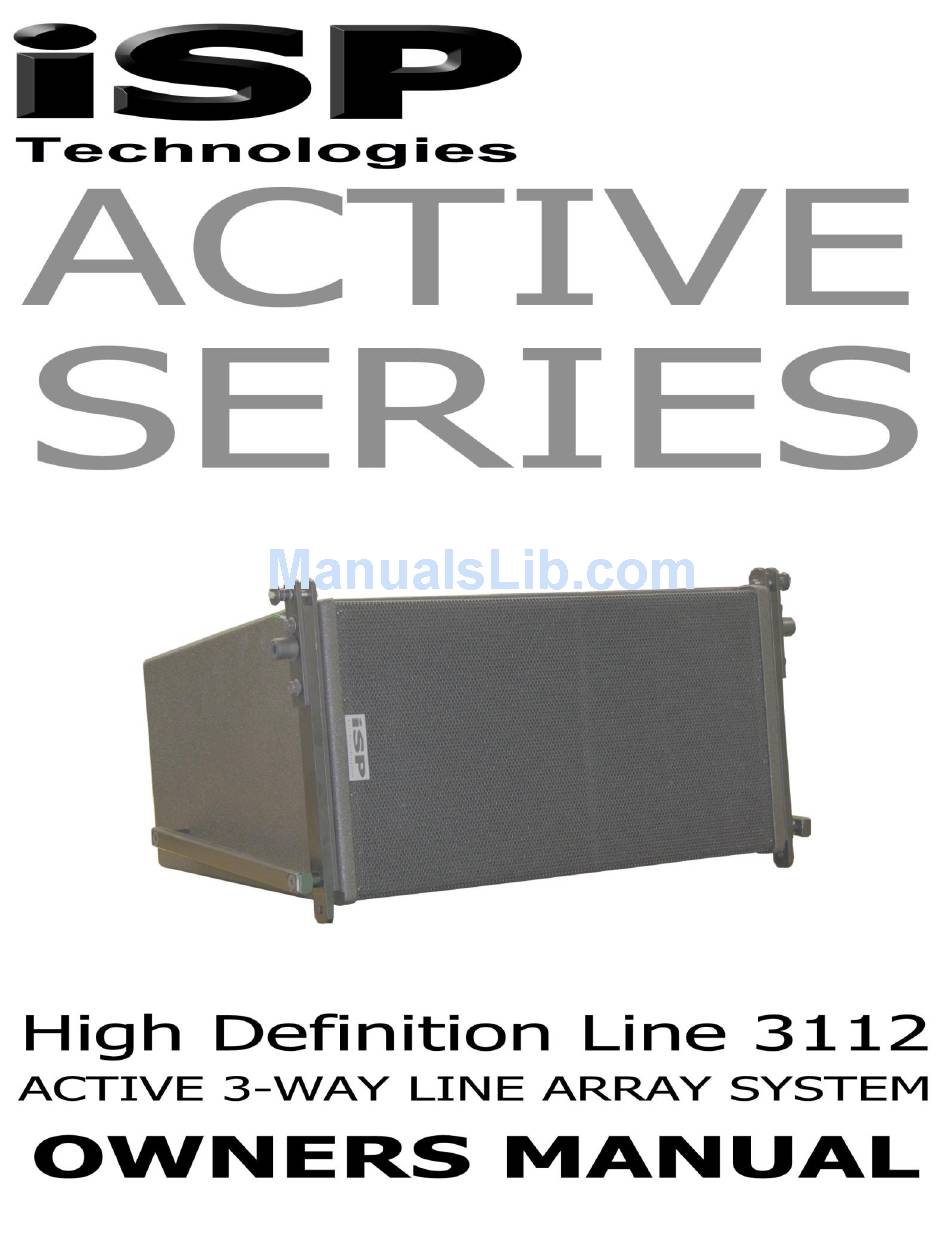

iSP Technologies HDL3112 ACTIVE SERIES Owner's Manual

High definition line 3112 active 3-way line array speaker system.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDL3112 ACTIVE SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for iSP Technologies HDL3112 ACTIVE SERIES

Summary of Contents for iSP Technologies HDL3112 ACTIVE SERIES

  • Page 2 IMPORTANT SAFETY INSTRUCTIONS! Please read the following very carefully before operating this unit  Read ALL instructions carefully before using this unit. Keep these instructions for future reference. Heed all warnings and follow all instructions.  Do not use this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur.
  • Page 3 NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED ISP TECHNOLOGIES SERVICE PERSONNEL. The lightning bolt triangle is used to alert the user to the risk of electric shock. The exclamation point triangle is used to alert the user to important operating or maintenance instructions.
  • Page 4 INTRODUCTION Thank you for purchasing ISP Technologies HIGH DEFINITION LINE HDL3112 speaker system. The HDL 3112 is a high output three-way active speaker system designed to deliver HI-FI sound quality for medium and high SPL sound reinforcement applications. The HDL 3112 is a single element line array cabinet available in two maximum vertical coverage angles, either 8 degree or 15 degree, with adjustable splay angles.

  • Page 5: Attachment To Structures

    ISP Technologies is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. ISP is also not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures.
  • Page 6 CAT-5 cable in order to provide a ground connection for the input circuit. An ETHERCON input breakout cable is available from ISP Technologies allowing for separate XLR input connections for each of the 3-Band input signals Low, Mid and High. If you make a custom input...
  • Page 7 The rear panel of the HDL 3112 also power connections allowing connection to AC power with Neutrik PowerCon inlet connector. Under the Power input Neutrik PowerCon outlet connector, which allows connection to one additional cabinet. It is not recommended to connect more than additional cabinet this...

  • Page 8: Thermal Conditions

    In a flown configuration the cabinet angles are set by sliding the link from the top cabinet down into the slot of the rear hinge on the next cabinet and inserting the quick release pin in the proper hole selection desired splay angle.

  • Page 9: Specifications

    SPECIFICATIONS (per box) Configuration: 3-way LF Drivers: 1 x 12 inch, very high sensitivity, neo magnet, reflex loaded. MF Drivers: 1 x 3 inch compression, neo magnet, horn loaded HF Drivers: 3 x 1.75 inch compression, neo magnet, horn loaded, poly diaphragms Coverage: HDL 3112 8°: 8V x 110H HDL 3112 15°: 15V x 110H...

  • Page 10: Warranty And Service

    Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem,...
