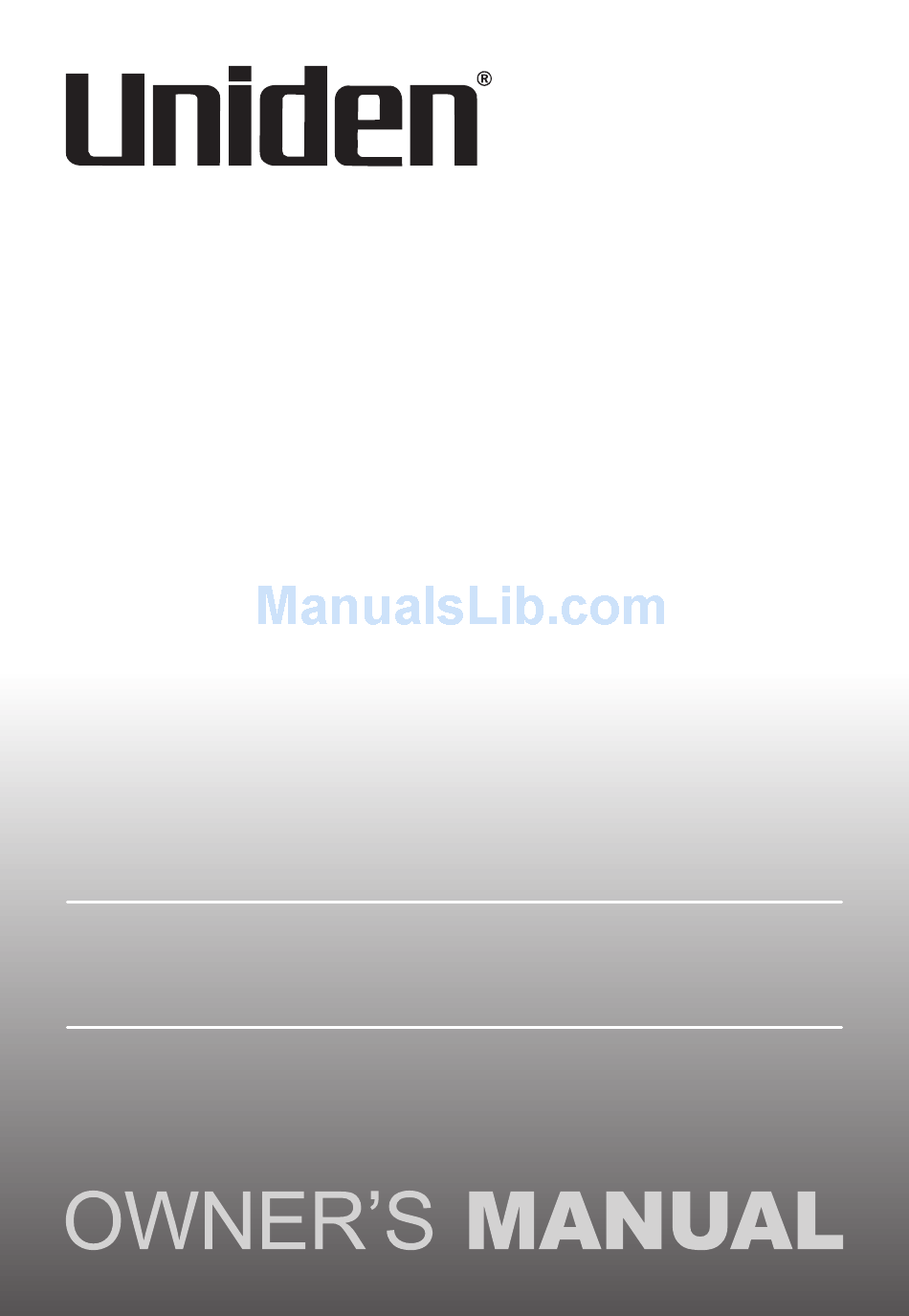

- Page 1 UH043SX-2NB UHF CB Transceiver For more exciting new products please visit our website: Australia: www.uniden.com.au New Zealand: www.uniden.co.nz...
-
Page 2: Controls And Indicators
Memory/Scan Key 20 CTCSS ON Indicator Channel/Power Hi-Lo Key 21 Battery Level Indicator Speaker 22 HI Transmit Indicator Headset Jack 23 Lo Transmit Indicator Select/Power On-Off Key 24 CTCSS and DCS Code/Volume 10 Volume/Select Up Key Level Indictor 11 Volume/Select Down Key 25 Volume Setting Indicator 12 Microphone 26 VOX Indicator 13 Receive Indicator 27 Busy Channel Lockout Indicator 14 Transmit Indicator 28 Keypad Lock Indicator 15 Channel Indicator 29 Charging LEDs UNIDEN UH043SX-2NB UHF CB Transceiver... -
Page 3: Getting Started
Getting Started Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture. NOTE Battery Installation Your UH043SX-2NB unit uses the included NiMH battery pack for power. The unit can be powered with optional 4 AAA ALKALINE batteries. If you don’t use the UH043SX-2NB for long periods, Uniden recommend removing the batteries. The UH043SX-2NB is designed to retain the previous user settings. This feature will continue to use a small amount of battery power while NOTE the unit is switched off. To avoid damage to the unit do not mix old and new batteries. To install the batteries: 1. Make sure your radio is off. 2. Release the battery cover clip, then remove the battery cover. 3. Insert NiMH battery pack according to the orientation on the battery pack. Insert 4 AAA ALKALINE batteries (not included) according to the polarity symbols inside the battery compartment. 4. Align the battery cover tabs with the UH043SX-2NB tab holes then replace the cover clip. Do not charge alkaline or non rechargeable batteries. NOTE UNIDEN UH043SX-2NB UHF CB Transceiver... - Page 4 Getting Started Installing the Charge Cradle 1. Plug the AC adaptor into the rear of the charge cradle and into the mains power. 2. Place the UH043SX-2NB into the charge cradle. The charge light will come on to indicate the unit is charging. 3. Before operating the UH043SX-2NB, charge the battery pack for 16 hours. Do not charge alkaline or non rechargeable batteries. NOTE User License Information The citizen band radio service is licenced in Australia by ACMA Radio-communications (Citizen Band Radio Stations) Class Licence and in New Zealand by MED General User Licence for Citizen Band Radio and operation NOTE is subject to conditions contained in those licences. UNIDEN UH043SX-2NB UHF CB Transceiver...
-
Page 5: Low Battery Alert
Getting Started Belt Clip To attach the belt clip: Slide the belt clip until it snaps into place. Belt Clip Locker To remove the belt clip: To remove the belt clip, press and hold belt clip locker, slide the belt clip at the same time until released. Low Battery Alert If the battery level becomes low, the battery indicator icon on the display begins flashing. When the batteries in the unit are low, the unit will go into a battery Low mode. The Transmit mode is disabled. Replace the alkaline batteries immediately or if you are using the NiMH battery pack, place the radio on the charge cradle to recharge. Full charge will take up to 16 Hrs. Back Light The UH043SX-2NB has an automatic display back light which remains on for 10 seconds after a key press (all keys except PTT key). The back light will work even if the keypad is locked but will not work during low battery alert mode. UNIDEN UH043SX-2NB UHF CB Transceiver... -
Page 6: Adjusting The Key Beeps
Level 7 (Maximum Volume). Adjusting the Key Beeps Your radio emits a beep each time one of the keys (except for the PTT key) is pressed. 1. To turn OFF this beep: Press and hold / CALL key while turning on the radio. 2. To turn ON this beep: Press and hold / CALL key while turning on the radio. Roger Beep Roger Beep is a BEEP that is sent to notify the end of transmission (both PTT and VOX transmission.) Roger Beep can be heard through the speaker when Key Beep is on. Roger Beep is transmitted even if Key Beep is turned off. However, Roger Beep will not be heard from the speaker. 1. To turn OFF Roger Beep: Press and hold key while turning on the radio. 2. To turn ON Roger Beep: Press and hold key while turning on the radio. Keylock On/Off 1. Press / CALL key for 1.5 seconds to enter keylock on mode. 2. Press / CALL key for 1.5 seconds while in Keylock mode to exit the Keylock mode. While in Keylock on mode, the UH043SX-2NB can still receive and transmit. NOTE UNIDEN UH043SX-2NB UHF CB Transceiver... -
Page 7: Selecting A Channel
Refer to channel guidelines on page 13. For Australia, Channels 05 and 35 are reserved for Emergency Calls. NOTE 3. Press CH / HI / LO key momentarily to exit channel select mode. If no key is pressed within 5 sec the UH043SX-2NB will exit from the channel select mode. To Transmit and Receive The UH043SX-2NB uses the UHF-CB Channels (Channels 22 and 23 are for telemetry and telecommand applications. Transmit is inhibited on these channels). 1. Before you transmit, listen for activity on the selected channel. 2. When the channel is clear, press and hold the PTT key to transmit. -
Page 8: Automatic Squelch Feature
Operation Automatic Squelch Feature The UH043SX-2NB is equipped with an Automatic Squelch System which shuts off weak transmissions and unwanted noise. Monitor This feature enables users to listen for weak signals on the current channel at the press of a key. To use monitor 1. Press MON key. The RX icon will flash. 2. Release within 1.5 seconds and the unit exits Monitor mode. 3. Press and hold MON key for 2 seconds for continuous listening. The receiver circuit will stay open, letting in both the noise & weak signals. The RX icon flashes in this status. 4. To return to normal Receive mode press MON key. The RX icon disappears or stops flashing in this status. Scanning The scan function scans all channels which are stored in the SCAN CHANNEL MEMORY and stops at an active channel. If a PRIORITY channel has been selected then this channel will be monitored for activity every 3 seconds. When the signal stops, the UH043SX-2NB waits 2 seconds (Reply Delay) before scanning resumes. To initiate scanning; 1. Press MEM / SCN key momentarily to begin scanning. -
Page 9: To Operate In Duplex Mode (Repeaters)
UHF CB Repeaters are used to retransmit or relay your signal. Repeaters will extend the range of your radio and overcome the shielding effect caused by solid obstructions. Contact your retailer for a list of repeaters available in your area. NOTE Operation With the Aid of a Repeater 1. Press SELECT / key six times. appears on the display. 2. Press or to change to for CH01-CH08 and to for CH41-CH48. 3. Press SELECT / to confirm To deactivate the duplex operation repeat activation process and change to or to . UH043SX-2NB will return to normal operation. or is pressed when the channel is not from CH01-CH08 or CH41-CH48, an error tone sounds. NOTE UNIDEN UH043SX-2NB UHF CB Transceiver... - Page 10 1. Press SELECT / key momentarily to enter CTCSS mode. The current selected CTCSS tone flashes. 2. Press key to select the required CTCSS tone (OFF or 1-38). 3. Press SELECT / key six times to confirm the selected setting and exit to standby mode. For channels with a CTCSS tone setting, the CTCSS tone is displayed below the channel indicator. For channels with the setting of CTCSS OFF, there will be no display below the channel indicator. DCS is a digital extension of CTCSS. It provides 104 extra, digitally coded, squelch codes that follow after the 38 CTCSS codes. CTCSS 1-38, followed by DCS 1-99 plus DCS 100-104 (represented by o0-o4 on the display). 1. Press SELECT / key momentarily to enter CTCSS/DCS mode. 2. Use key to select a DCS code. The DCS codes follow on after the CTCSS codes. The DCS icon will replace the CTCSS code on the display. 3. Press SELECT / key six times to confirm the selected setting and exit to standby mode. The DCS icon will appear when selected. To turn off DCS select CTCSS OFF and no display will show below the channel indicator. Channels 05 and 35 are used for emergency channels. CTCSS and DCS will not operate on these two channels. NOTE UNIDEN UH043SX-2NB UHF CB Transceiver...
-
Page 11: Transmitting A Call Tone
VOX can be turned off by selecting OF icon. 3. Press SELECT / key five times to confirm the setting and exit to standby mode. The VOX icon is shown on the display when VOX is selected to on and the VOX Headset is plugged into VOX Headset Jack. The TX icon blinks when the voice level is possible to transmit at the current selected VOX sensitivity level. Transmitting a Call Tone Your UH043SX-2NB radio is equipped with 5 selectable call tones that will be transmitted when the / CALL key is pressed momentarily. To select a call tone: 1. Press SELECT / key momentarily three times while in standby mode to enter Call Tone mode. The current call tone number (C1-C5) will be indicated. 2. Press the or key to select desired call tone. Each tone will be heard through the speaker. 3. Press SELECT / key four times to confirm and exit to standby mode. - Page 12 2. Press or key to increase or decrease the desired channel number. 3. Press SELECT / three times to confirm and exit to standby mode. PRI will be displayed when a priority channel has been selected. BCL (Busy Channel Lockout) On/Off BCL is used when CTCSS or DCS is selected to prevent transmission when the UH043SX-2NB detects a transmission from another unit using the same CTCSS or DCS code. To set BCL ON/OFF: 1. Press SELECT / momentarily five times while in standby mode to enter BCL ON / OFF mode. The current BCL status will be indicated. 2. Press or key to select ON (on) or OFF (oF). 3. Press SELECT / two times to confirm and exit to standby mode. BCL will be displayed when BCL on...
- Page 13 Operation Scan Channel Memory To store a channel into Scan Channel Memory: 1. Select desired channel using CH / HI / LO key and or key. 2. Press and hold MEM / SCN key. MEM will appear on the display. Repeat steps 1 and 2 to clear channel from Scan Channel Memory. UNIDEN UH043SX-2NB UHF CB Transceiver...
- Page 14 General communication is accepted on all other channels with these guidelines: • Channel 40 - road channel (Australia). • Channels 01-08 (and 31-38), and Channels 41-48 (and 71-78) are repeater channels. Important information - 80 Channel UHF-CB channel expansion To provide all users additional channel capacity within the UHF-CB Band. The ACMA will change the majority of the current wideband 40 channel use to narrowband channel use. This allows for additional channels to be added, up to 80 (77 usable) Channels. This simply means that the new narrowband radio you have purchased will have more channels than older radios. Please refer to the guidelines above and the channel chart for further channel information. A list of currently authorised channels can also be obtained from the ACMA website in Australia and the MED website in New Zealand. Interference / Poor Audio When a new narrowband radio receives a signal from an older NOTE wideband radio the speech may sound loud. Narrowband radios operating on CH41 - CH80 may encounter interference from a nearby wideband radios transmitting on high power on an adjacent channel (frequency). When an older wideband radio receives a signal from a new narrowband radio the speech may sound quiet - the wideband radio user simply adjusts their radio volume for best performance. The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated. UNIDEN UH043SX-2NB UHF CB Transceiver...
-
Page 15: Warranty
Warranty UNIDEN UH043SX-2NB UHF CB Transceiver Please keep your sales docket as it provides evidence for warranty. NOTE Important: Evidence of original purchase is required for warranty service. Warrantor: Uniden Australia Pty Limited, A.B.N. 58 001 865 498, Uniden New Zealand Limited Warranty is only valid in the original country of purchase. ELEMENT OF WARRANTY: Uniden warrants to the original retail owner for the duration of this warranty, its UH043SX-2NB Radio (herein after referred to as the Product), to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original retail owner only, shall terminate and be of no further effect ONE (1) years after the date of original retail sale. This warranty will be deemed invalid if the product is; (A) Damaged or not maintained as reasonable and necessary, (B) Modified, altered or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) Improperly installed, (D) Repaired by someone other than an authorized Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, or (F) Where the Serial Number label of the product has been removed or damaged beyond recognition. - Page 16 © 2011 Uniden Australia Pty Limited. Uniden New Zealand Ltd. Printed in PRC. U01UT929DZZ(0)
