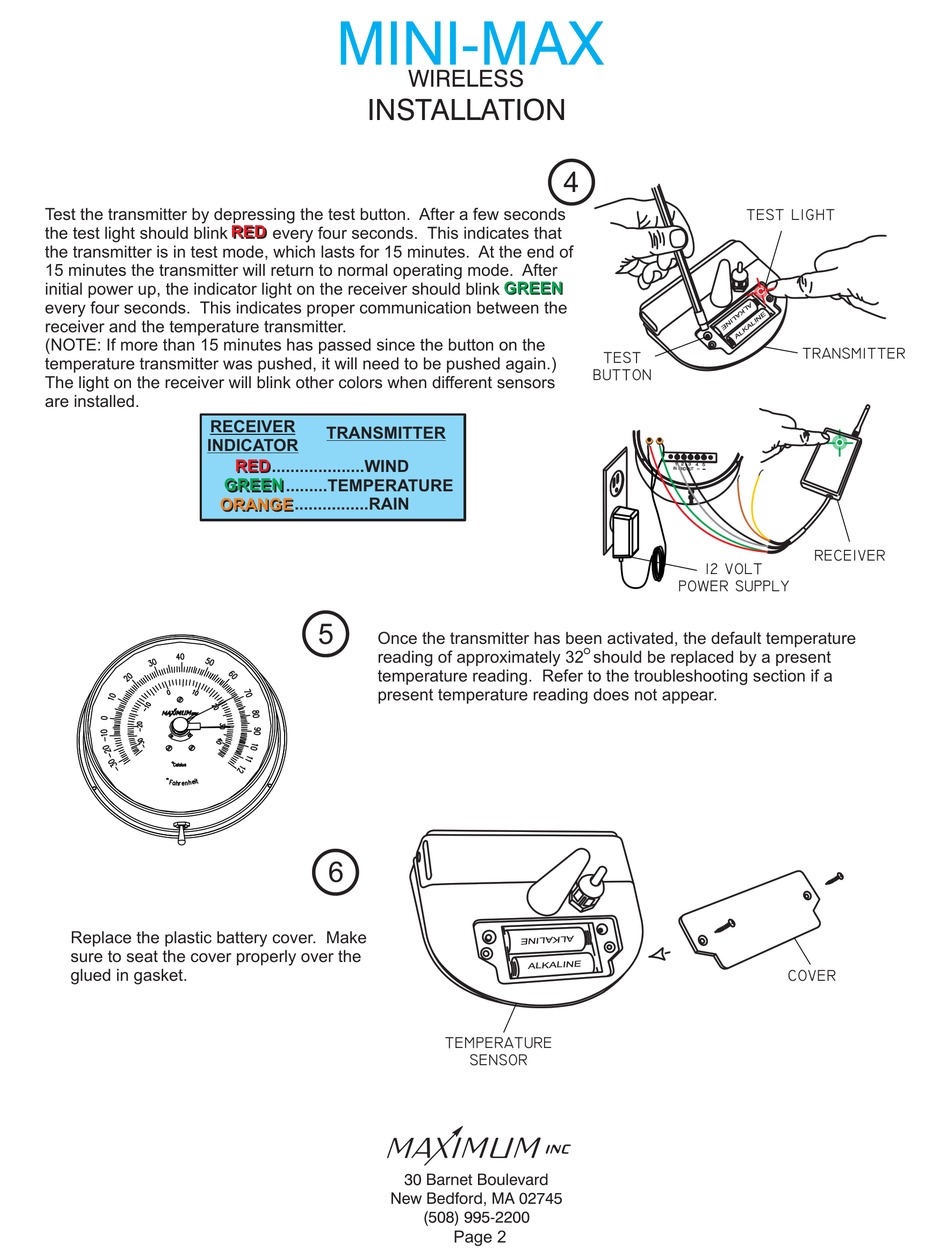

Test the transmitter by depressing the test button. After a few seconds
the test light should blink
the transmitter is in test mode, which lasts for 15 minutes. At the end of
15 minutes the transmitter will return to normal operating mode.
initial power up, the indicator light on the receiver should blink
every four seconds. This indicates proper communication between the
receiver and the temperature transmitter.
(NOTE: If more than 15 minutes has passed since the button on the
temperature transmitter was pushed, it will need to be pushed again.)
The light on the receiver will blink other colors when different sensors
are installed.
RECEIVER
INDICATOR
ORANGE
ORANGE
Replace the plastic battery cover. Make
sure to seat the cover properly over the
glued in gasket.
MINI-MAX
INST
RED
RED
every four seconds. This indicates that
TRANSMITTER
RED
....................WIND
RED
GREEN
.........TEMPERATURE
GREEN
................RAIN
5
Once the transmitter has been activated, the default temperature
reading of approximately 32 should be replaced by a present
temperature reading. Refer to the troubleshooting section if a
present temperature reading does not appear.
6
New Bedford, MA 02745
WIRELESS
ALLA
TION
4
After
GREEN
GREEN
TEMPERATURE
SENSOR
30 Barnet Boulevard
(508) 995-2200
Page 2
TEST LIGHT
TEST
BUTTON
12 VOLT
POWER SUPPLY
TRANSMITTER
RECEIVER
COVER
