Maximum Mini-Max Wireless Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

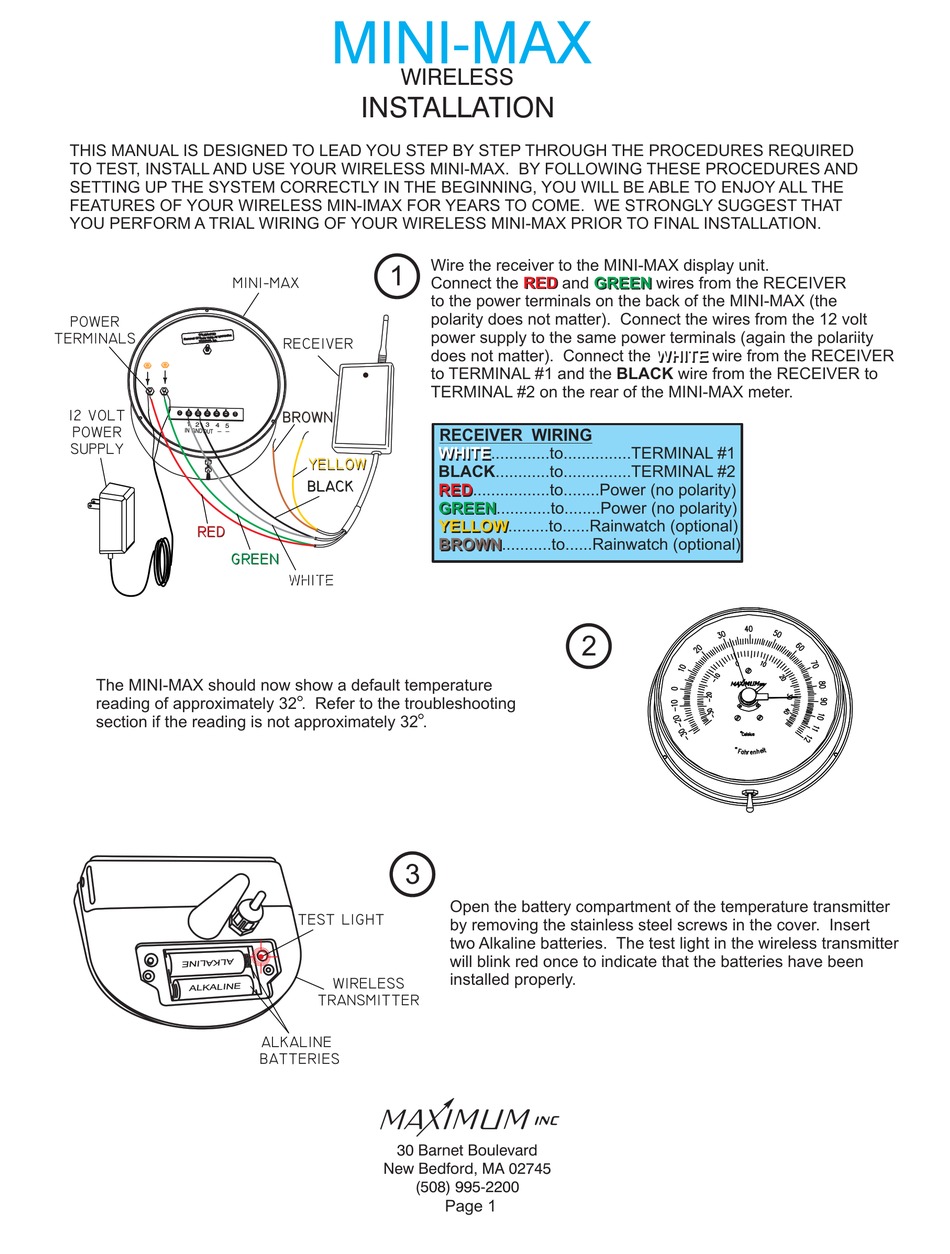

THIS MANUAL IS DESIGNED TO LEAD YOU STEP BY STEP THROUGH THE PROCEDURES REQUIRED
TO TEST, INSTALL AND USE YOUR WIRELESS MINI-MAX. BY FOLLOWING THESE PROCEDURES AND
SETTING UP THE SYSTEM CORRECTLY IN THE BEGINNING, YOU WILL BE ABLE TO ENJOY ALL THE
FEATURES OF YOUR WIRELESS MIN-IMAX FOR YEARS TO COME. WE STRONGLY SUGGEST THAT
YOU PERFORM A TRIAL WIRING OF YOUR WIRELESS MINI-MAX PRIOR TO FINAL INSTALLATION.
POWER
TERMINALS
12 VOLT
POWER
SUPPLY
RED
RED
The MINI-MAX should now show a default temperature
reading of approximately 32 . Refer to the troubleshooting
section if the reading is not approximately 32 .
MINI-MAX
WIRELESS
INST
1
MINI-MAX
RECEIVER
BROWN
BROWN
YELLOW
YELLOW
BLACK
BLACK
GREEN
GREEN
WHITE
WHITE
TEST LIGHT
WIRELESS
TRANSMITTER
ALKALINE
BATTERIES
30 Barnet Boulevard
New Bedford, MA 02745
ALLA
TION
Wire the receiver to the MINI-MAX display unit.
Connect the
RED
and
RED
to the power terminals on the back of the MINI-MAX (the
polarity does not matter). Connect the wires from the 12 volt
power supply to the same power terminals (again the polariity
does not matter). Connect the
to TERMINAL #1 and the
TERMINAL #2 on the rear of the MINI-MAX meter.
RECEIVER WIRING
WHITE.............to...............TERMINAL #1
WHITE
BLACK
............to...............TERMINAL #2
RED
.................to........Power (no polarity)
RED
GREEN
............to........Power (no polarity)
GREEN
YELLOW
.........to......Rainwatch (optional)
YELLOW
BROWN
...........to......Rainwatch (optional)
BROWN
3
Open the battery compartment of the temperature transmitter
by removing the stainless steel screws in the cover. Insert
two Alkaline batteries. The test light in the wireless transmitter
will blink red once to indicate that the batteries have been
installed properly.
(508) 995-2200
Page 1
GREEN
wires from the RECEIVER
GREEN
WHITE
wire from the RECEIVER
WHITE
BLACK
wire from the RECEIVER to
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini-Max Wireless and is the answer not in the manual?

Questions and answers

Related Manuals for Maximum Mini-Max Wireless

Summary of Contents for Maximum Mini-Max Wireless

  • Page 1 THIS MANUAL IS DESIGNED TO LEAD YOU STEP BY STEP THROUGH THE PROCEDURES REQUIRED TO TEST, INSTALL AND USE YOUR WIRELESS MINI-MAX. BY FOLLOWING THESE PROCEDURES AND SETTING UP THE SYSTEM CORRECTLY IN THE BEGINNING, YOU WILL BE ABLE TO ENJOY ALL THE FEATURES OF YOUR WIRELESS MIN-IMAX FOR YEARS TO COME.

  • Page 2: Installation

    MINI-MAX WIRELESS INST ALLA TION TEST LIGHT Test the transmitter by depressing the test button. After a few seconds the test light should blink every four seconds. This indicates that the transmitter is in test mode, which lasts for 15 minutes. At the end of 15 minutes the transmitter will return to normal operating mode.
  • Page 3 RECEIVER Move the active temperature transmitter as close as possible to your preferred final mounting location. Also move the MINI-MAX indicator and receiver combination as close as possible to their final mounting location. Select a location for the transmitter that is protected from direct sunlight and sheltered from rain or physical damage.
  • Page 4 WOOD PANEL Mount the MINI-MAX indicator directly over the cable hole that is also used to route power to the instrument. For the cleanest installation, we recommend making a hole in the wall large enough to insert the wireless receiver. We also recommend mounting the brass meter to one of our pre-drilled mounting panels.

  • Page 5: Operation

    MINI-MAX WIRELESS OPERATION Your Mini-Max has two switches. The toggle switch is for selecting the function. The small push button switch behind the toggle is for resetting the memories. Lightly holding the toggle switch to the left will display the recorded low temperature since the last reset.
  • Page 6 RECEIVER to the power terminals on the back of the MINI-MAX GREEN (no polarity). Connect the wires from the 12 VOLT POWER SUPPLY to the same MINI-MAX power terminals (no polarity). On the MINI-MAX, connect the WHITE...
  • Page 7 RECEIVER to the power terminals on the back of the MINI-MAX GREEN (no polarity). Connect the wires from the 12 VOLT POWER SUPPLY to the same MINI-MAX power terminals (no polarity). On the MINI-MAX, connect the WHITE...

  • Page 8: Troubleshooting

    -If the instrument continues to display the error code, call Maximum for further assistance. Note: Depending on the origin of the problem, error codes may not display on all instruments. 30 Barnet Boulevard...
  • Page 9 ..TEMPERATURE GREEN ORANGE ....RAIN ORANGE -If the instrument continues to display the error code, call Maximum for further assistance. Note: Depending on the origin of the problem, error codes may not display on all instruments. 30 Barnet Boulevard New Bedford, MA 02745...
  • Page 10 BUTTON in the battery compartment of TRANSMITTER. This should cause the LED on the receiver to flash every 2 seconds. -If the instrument continues to display the error code, call Maximum for further assistance. 30 Barnet Boulevard New Bedford, MA 02745...
  • Page 11 TRANSMITTER. This should cause the LED on the receiver to flash GREEN every 4 seconds. GREEN -If the instrument continues to display the error code, call Maximum for further assistance. 30 Barnet Boulevard New Bedford, MA 02745...
  • Page 12 RAIN TRANSMITTER circuit board back to covering only one pin of the 2-pin terminal (it does not matter which pin is covered). Re-install the batteries and cover. -If the instrument continues to display the error code, call Maximum for further assistance. 30 Barnet Boulevard...

  • Page 13: Fcc Notice

    WIRELESS FCC NOTICE Warning: Changes or modifications to this equipment not expressly approved by Maximum, Inc. in writing as the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a CLASS B Digital Device, pursuant to Part 15 of the FCC Rules.
  • Page 14 The shock that you get from touching a doorknob or another person can often be sufficient to damage an instrument. 30 SAMUEL BARNET BOULEVARD NEW BEDFORD, MASSACHUSETTS 02745 U.S.A. TEL. 508.995.2200 WWW.MAXIMUM-INC.COM FAX 800.989.2580...
