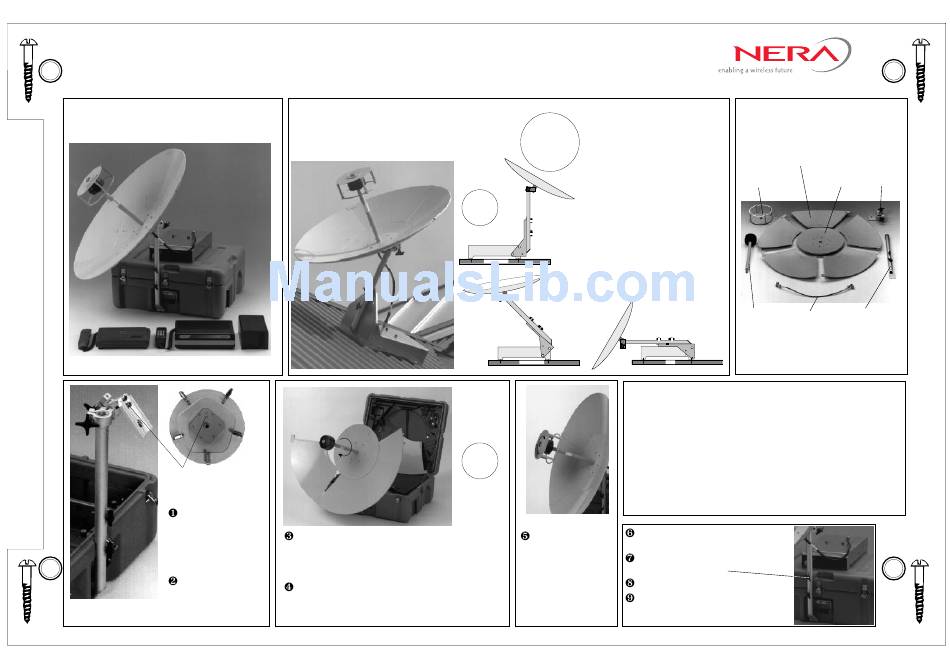

Nera Saturn Bt Mounting Instructions

Drilling template
for wall- or roof-mounting of
Transceiver with antenna
Antenna mounted on trunk
Follow instructions in step 1 - 5.
Antenna
Transceiver
Telephone Fax Display MCU
(option)
handset
Guide holes which lock the
antenna dish in position.
Refer to step 3.
Antenna rod
Insert the antenna
mounting rod into the
slot in the trunk and
fasten the lower locking
screw.
Antenna pivot
Mount the antenna
pivot on the top end of
the rod as shown.
Antenna Mounting Instructions
Antenna mounted on wall or roof
The special antenna bracket attached to the
transceiver permits wall- or roof-mounting of the
antenna.
Coax cable
Antenna bracket
Transceiver
Power
Supply
Dish mid section and feeder
Place the mid section with the guide holes in correct
position, and screw the antenna feeder into place by
rotating the feeder rod.
Dish side sections
Mount the 5 side sections starting with the bottom sec-
tion. Lock the sections together with the toggle latches.
Saturn Bt
The Transceiver is mounted with four
screws. Use this instruction as
template. Place the template at the
position for installation and mark
holes (indicated by screw symbols).
The three fixed angles selectable for
mounting of the antenna bracket on
the Transceiver are illustrated below.
Antenna bracket/mounting rod
a) Mount the Transceiver.
b) Attach the antenna mounting rod
to the antenna bracket as shown.
Wall or roof
c) Install the bracket with the
wanted angle on the Transceiver.
d) Continue with steps 2 to 5 below.
Wall or roof
Re-packing sequence
Lower trunk section:
1 Cables to the left on bottom rear end
2 Display handset in space to the left on bottom front end
3 MCU to the right on bottom rear end covered by foam plate
4 Compass in right front end space
5 Telefax above cables
6 Power Supply in space above Display Handset
7 Transceiver above MCU (cut end towards front)
8 Drilling Template on top of Transceiver
9 Antenna Bracket on top of Drilling Template (pointed end
towards front)
10 Feeder Reflector ahead of Transceiver
11 Pivot to the right of Power Supply
Feeder reflector
Fasten the reflector on
top of the feeder by
means of the knurled
screw.
Antenna Parts
SIDE
SECTIONS
FEEDER
REFLECTOR
FEEDER
COAX
CABLE
Wall
Upper trunk section:
1 Fasten Antenna Mounting Rod
2 Pack Antenna Dish Mid
Section
3 Pack Antenna Side Sections
(first section uppermost)
4 Pack the Antenna Cable
5 Fasten Antenna Sections and
Antenna Cable
6 Fasten Antenna Feeder
7 Pack Trunk Wheels
8 Pack the Spare Telephone
Remove remaining equipment from
trunk.
Transceiver
Close lid and tighten upper Mounting
Rod fastening screw.
Place Transceiver on trunk lid.
Continue to "Connecting Up" on
reverse side.
Connecting up: See reverse side!
MID
PIVOT
SECTION
MOUNTING
ROD
