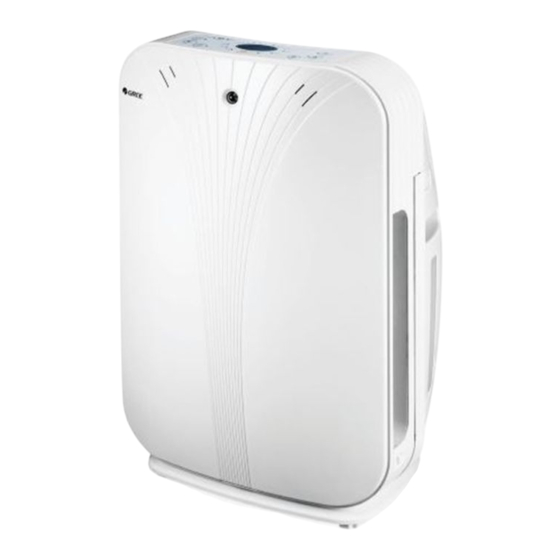

- Page 1 Change for Life Humidified Air Purifier Owner's Manual Residential Humidified Air Purifier MODEL: GCF220BKNA GCC240BKNA GCS260BKNA Thank you for choosing Residential Humidified Air Purifier,please read this owner’s manual carefully before operation and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS ◆ Operation Notice Product Introduction ·························································································· 1 Parts Name ·········································································································· 3 Safety Notice ······································································································· 5 ◆ Function Introduction Preparation before Operation············································································ 7 Display Function Introduction ········································································· 10 Buttons Function Introduction ········································································ 12 Remote Controller Function Introduction ····················································· 13 ◆ Maintenance Maintenance Table ····························································································... -
Page 3: Product Introduction
Product Introduction Product Features Gree humidifi ed air purifi er selectively adopted below fi lter and technology for purifying and humidifying, which can let you enjoy the fresh, natural, comfortable as well as clean living environment. ● Silver ion fi lter Inhibit all kinds of disease germ,washable and durable. - Page 4 GCC240BKNA composite air purifi er ● This kind of air purifi er combines the functions of GCF220BKNA and GCS260BKNA which can satisfy your various kinds of requirement. Refresh Purify...
-
Page 5: Parts Name
Parts Name Front side Rear side Handle Control panel Air outlet Front panel Name plate Power plug Power cord Air inlet Parts’ Name GCF220BKNA ● Strainer sub-assy Water tank Panel Filter Dust- Filter sponge Active carbon Water tray collecting fi lter fi... - Page 6 GCC240BKNA ● Negative Electrostatic plate fi lter sponge Water tank Panel Filter Dust-collecting Filter Active carbon fi lter Water tray fi lter bracket sponge GCS260BKNA ● Negative Active carbon Water tank plate fi lter Panel Filter Dust-collecting Electrostatic fi lter Water tray fi...
-
Page 7: Safety Notice
Safety Notice There various kinds of safety symbol on this manual and product. Read this manual carefully to understand all symbols and follow below safety notices. ■ Ignorance or wrongly understand of these symbols will cause below two circumstances. This symbol indicates the possibility This symbol indicates the possibility Warning Caution... -
Page 8: During Operation
■ The seriousness is classifi ed by the following indications: Please follow below notices to prevent This symbol indicates never to do this. electric shock, injury and damage to property. This symbol indicates always do this. Caution During operation Body ■... -
Page 9: Preparation Before Operation
Filter ● Do not hold the grille or air outlet to move the Model manual controller sponge main unit. GCF220BKNA one copy one set one set one set ● Do not move the main unit when there is GCC240BKNA one copy... - Page 10 4).Remove fi ltering sponge from package and for installation. assemble it in the dust collector. ● GCF220BKNA Take out the strainer sub-assy from carbon box, tear up the sealing tape and write down the initial operation date on the label.
- Page 11 Warning Before fi lling water, cleaning product or maintenance, the appliance must be disconnected from the supply mains or unplug the power supply. 4.Preparation of Water Tank 3.Install water tank ● Hold the handle and insert water tray into water The air cleaning function is available even tank.
-
Page 12: Display Function Introduction
Display Function Introduction Display of Nixie Tube Fan Speed Bar (1) Ambient humidity is displayed during normal It displays current fan speed. One column operation. means silence; Three columns mean low (2)Time is displayed when setting timer. fan speed; Five columns mean medium fan (3) Set humidity is displayed when setting humidity. - Page 13 Display of Dust Degree and Odor Degree The sensor built-in can sense quality of air and change of odor. Through qty of LED lamps, air quality and odor content can be known. Dust Odor LED lamp is on Much Much <LED lamp for Odor Sensor >...
-
Page 14: Buttons Function Introduction
HUMIDIFY activate dust removal function and LED lamp for dust removal will be on. (This button is not available for model GCF220BKNA.) Press this button to turn on humidify mode. LED lamp for humidify mode will be on. Press this button again to cancel humidify... -
Page 15: Remote Controller Function Introduction
When the to turn on electrostatic mode. Press this unit is standby, in timer setting mode, press button again to quit this mode. (This button button"+" or "–"to adjust time for turning on is not available for model GCF220BKNA.) the unit. -
Page 16: Maintenance Table
Maintenance Table Warning Before fi lling water, cleaning product or maintenance, the appliance must be disconnected from the supply mains or unplug the power supply. During maintenance, refer to “Preparation before Operation “for disassembly and installation of each part. Front panel Filter subassembly Filter Activated carbon fi... - Page 17 Don’t use petrol, volatile oil, lacquer thinner, putty-powder or kerosene. ● (Otherwise electric shock, fi re or damage of the parts may be incurred.) The unit can’t be washed by water. ● (Otherwise, electric shock, fi r or malfunction may be incurred.) Air inlet of sensor of Water tank Water tray...
-
Page 18: Maintenance For Water Tray And Filter Sub-Assy
Maintenance for Water Tray and Filter Sub-assy 1.Remove of water tray and fi lter sub-assy 3.Water tray Maintenance once a month or whenever there’s (1) Remove water tray (See P9). standard peculiar smell or dirt (2) Pull out the water tray and remove the fi lter Maintenance water clean sub-assy. - Page 19 The water tray and fi lter will get dirt and peculiar odor, do maintain periodically. 6.Filter replace method 5. Filter sub-assy Service life for when the unit is operated Maintenance once a month or whenever there’s replacement for accumulative 2000 hours standard peculiar smell or dirt Maintenance...
-
Page 20: Maintenance For Dedust Parts
Maintenance for Dedust Parts Notice When the cleaning indicator light Maintenance standard is on or there’s dirt 1. Please wear rubber gloves when wiping and cleaning. 2. Do not break the tungsten fi lament during disassembly Maintenance method Wash with water, and wipe and cleaning. -
Page 21: Replacement Of Filter And Filter Cotton
Replacement of Filter and Filter cotton Filter replacement method Service life for replacement when the unit is operated for accumulative 2000 hours 1. Remove the dust collector assy (as following picture shows), then remove the fi lter behind the collector. Press the clamp on dust collector rack by hand, to remove the fi... -
Page 22: Replace Battery
Replace Battery 1. Open the back cover of the remote control according to the arrow direction. 2. Replace it with CR2025 battery, and then close the lid. Battery Note: The battery should be placed where children can not reach. If a child accidentally swallow ●... -
Page 23: Troubleshooting
Troubleshooting Please be noted of following content before consigning for maintenance, if the problem cannot be solved, please ask the GREE franchised store for help. Please make sure the front panel is well assembled. ● If the bulge of front panel inner side is damaged? ●... - Page 24 fl oater) ―Fill water into the water tank. If the fan motor is with malfunction? ● No air outlet ―Please contact with GREE franchised store. If the air inlet of the sensor is accumulated with ● dust? Room dust (dust sensor) ―clean the dust at air suction port with dust...
- Page 25 If the unit is placed by window or a location ● facing cold air? The environment humidity is high. The humidity shows ―Move the unit to other place. is always high The room located in north or beside the bathroom ●...
-
Page 26: Specifi Cation
Specifi cation Model GCF220BKNA GCC240BKNA GCS260BKNA Rated voltage 220-240V~ 50Hz Rated power(W) Rated airfl ow volume(m³/h) Humidifying volume(ml/h) Net weight(kg) Dimension(mm) 385X278X608 Applicable room area( ㎡ ) ● The net weight is measured when the water tank is empty, the fl ume is without water and the wet membrane is dry. - Page 27 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn www.gree.com 66166085...
