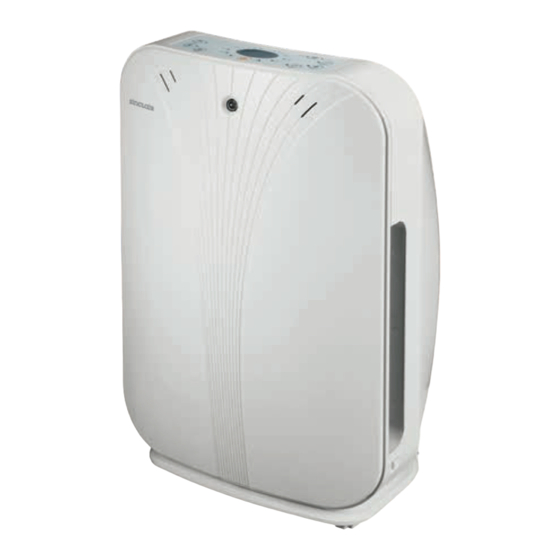

- Page 1 Operation manual Air purifier SP-240A...
-
Page 2: Table Of Contents
CONTENTS Operation Notice ◆ Safety Notice······································································································· 1 Product Introduction·························································································· 3 Parts Name ·········································································································· 5 Function Introduction ◆ Preparation before Operation············································································ 7 Display Function Introduction ········································································· 10 Buttons Function Introduction ········································································ 12 Remote Controller Function Introduction ····················································· 13 Maintenance ◆ Maintenance Table ···························································································· 14 Maintenance for Water Tray and Filter Sub-assy ··········································... -
Page 3: Safety Notice
Safety Notice There various kinds of safety symbol on this manual and product. Read this manual carefully to understand all symbols and follow below safety notices. ■ Ignorance or wrongly understand of these symbols will cause below two circumstances. Children shall not play with the appliance. ■... - Page 4 The seriousness is classified by the following indications: ■ Please follow below notices to prevent This symbol indicates never to do this. electric shock, injury and damage to property. This symbol indicates always do this. Caution When turning over the body, do not remove ■...
-
Page 5: Product Introduction
Product Introduction Product Features Sinclair humidifi ed air purifi er selectively adopted below fi lter and technology for purifying and humidifying, which can let you enjoy the fresh, natural, comfortable as well as clean living environment. ● Silver ion fi lter Inhibit all kinds of disease germ,washable and durable. - Page 6 SP-240A composite air purifi er ● This kind of air purifi er combines the functions of SP-220A and SP-260A which can satisfy your various kinds of requirement.
-
Page 7: Parts Name
Parts Name Front side Rear side Handle Control panel Air outlet Front panel Name plate Power plug Power cord Air inlet Parts’ Name SP-220A ● Strainer sub-assy Water tank Panel Filter Dust- Filter sponge Active carbon Water tray collecting fi lter fi... - Page 8 SP-240A ● Negative Electrostatic plate fi lter sponge Water tank Panel Filter Dust-collecting Filter Active carbon fi lter Water tray fi lter bracket sponge SP-260A ● Negative Active carbon Water tank plate fi lter Panel Filter Dust-collecting Electrostatic fi lter Water tray fi...
-
Page 9: Preparation Before Operation
SP-220A one copy one set one set one set ● Do not move the main unit when there is SP-240A one copy one set one set one set water in water tank and water tray. SP-260A one copy... - Page 10 3.Installation for Filter of Dust ● SP-240A Collector subassembly 1).Take out the strainer sub-assy from carbon box, tear up the sealing tape and write down 1.Press clasps with hands and remove front the initial operation date on the label. panel.
- Page 11 Warning Before fi lling water, cleaning product or maintenance, the appliance must be disconnected from the supply mains or unplug the power supply. 4.Preparation of Water Tank 3.Install water tank ● Hold the handle and insert water tray into water The air cleaning function is available even tank.
-
Page 12: Display Function Introduction
Display Function Introduction Display of Nixie Tube Fan Speed Bar (1) Ambient humidity is displayed during normal It displays current fan speed. One column operation. means silence; Three columns mean low (2)Time is displayed when setting timer. fan speed; Five columns mean medium fan (3) Set humidity is displayed when setting humidity. - Page 13 Display of Dust Degree and Odor Degree The sensor built-in can sense quality of air and change of odor. Through qty of LED lamps, air quality and odor content can be known. Dust Odor LED lamp is on Much Much <LED lamp for Odor Sensor >...
-
Page 14: Buttons Function Introduction
Buttons Function Introduction ON/OFF PLASMA/ ANION For turning on or turning off the unit. Press Press this button and plasma and anion this button once to turn on the unit and will change as follows: press it again to turn off the unit. Plasma is on Plasma is off Plasma is off... -
Page 15: Remote Controller Function Introduction
Remote Controller Function Introduction Humidify When the unit is operating and this button is pressed, the unit will enter this mode. Press Auto Speed this button again to cancel this mode. Note: only when the set humidity is 10% higher than ambient humidity, the unit can start humidification function. -
Page 16: Maintenance Table
Maintenance Table Warning Before fi lling water, cleaning product or maintenance, the appliance must be disconnected from the supply mains or unplug the power supply. During maintenance, refer to “Preparation before Operation “for disassembly and installation of each part. Front panel Filter subassembly Filter Activated carbon fi... - Page 17 Don’t use petrol, volatile oil, lacquer thinner, putty-powder or kerosene. ● (Otherwise electric shock, fi re or damage of the parts may be incurred.) The unit can’t be washed by water. ● (Otherwise, electric shock, fi r or malfunction may be incurred.) Air inlet of sensor of Water tank Water tray...
-
Page 18: Maintenance For Water Tray And Filter Sub-Assy
Maintenance for Water Tray and Filter Sub-assy 1.Remove of water tray and fi lter sub-assy 3.Water tray Maintenance once a month or whenever there’s (1) Remove water tray (See P9). standard peculiar smell or dirt (2) Pull out the water tray and remove the fi lter Maintenance water clean sub-assy. - Page 19 The water tray and fi lter will get dirt and peculiar odor, do maintain periodically. 6.Filter replace method 5. Filter sub-assy Service life for when the unit is operated Maintenance once a month or whenever there’s replacement for accumulative 2000 hours standard peculiar smell or dirt Maintenance...
-
Page 20: Maintenance For Dedust Parts
Maintenance for Dedust Parts Notice When the cleaning indicator light Maintenance standard is on or there’s dirt 1. Please wear rubber gloves when wiping and cleaning. 2. Do not break the tungsten fi lament during disassembly Maintenance method Wash with water, and wipe and cleaning. -
Page 21: Replacement Of Filter And Filter Cotton
Replacement of Filter and Filter cotton Filter replacement method Service life for replacement when the unit is operated for accumulative 2000 hours 1. Remove the dust collector assy (as following picture shows), then remove the fi lter behind the collector. Press the clamp on dust collector rack by hand, to remove the fi... -
Page 22: Replace Battery
Replace Battery 1. Open the back cover of the remote control according to the arrow direction. 2. Replace it with CR2025 battery, and then close the lid. Battery Note: The battery should be placed where children can not reach. If a child accidentally swallow ●... -
Page 23: Troubleshooting
Troubleshooting Please be noted of following content before consigning for maintenance, if the problem cannot be solved, please ask the SINCLAIR store for help. Please make sure the front panel is well assembled. ● If the bulge of front panel inner side is damaged? ●... - Page 24 The unit cannot humidify when the water is fi lled ● the water in the tank in the tank. reduced without The water in the tank do not reduce-please check. humidifying operation The water will be slowly reduced when the ●...
- Page 25 If the unit is placed by window or a location ● facing cold air? The environment humidity is high. The humidity shows ―Move the unit to other place. is always high The room located in north or beside the bathroom ●...
-
Page 26: Specifi Cation
Specifi cation Model SP-220A SP-240A SP-260A Rated voltage 220-240V~ 50Hz Rated power(W) Rated airfl ow volume(m³/h) Humidifying volume(ml/h) Net weight(kg) Dimension(mm) 385X278X608 Applicable room area( ㎡ ) ● The net weight is measured when the water tank is empty, the fl ume is without water and the wet membrane is dry.
