Globalstar GSP-1600 Operating Instructions

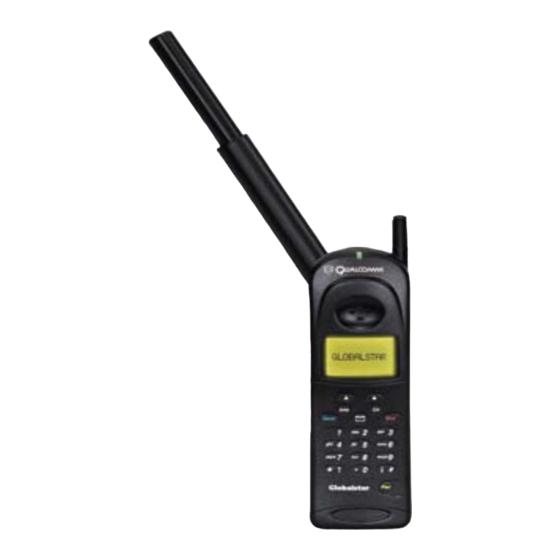

Operating Instructions for the Globalstar GSP-1600 – Portable Satellite Phone
This portable satellite phone is designed to only operate outside, in the clear, or in a vehicle when
using the car kit. Although is has a small collapsible antenna for cellular use, it has not been set up
for this function. It will not connect to the satellite system if the antenna is not out in the open.
To operate this phone, proceed as follows:
1. Turn power on by pressing power button briefly. (Please make sure the battery is sufficiently
charged as indicated by the charge status indicator in the upper right hand corner of the display.)
2. Go outside. You need to be in the clear of all trees and buildings and be able so see 10 degrees
above the horizon in all directions and above.
3. Rotate antenna to be in a vertical position while looking at the display.
4. An antenna symbol will appear along a series of 5 bars, the tallest being maximum. This is in the
upper left corner of the display.
5. Wait for the "reverse I" to appear to the right of "Globalstar". This is essential and means that the
unit is registered on the Globalstar network.
6. To place a call, dial 1, then the area code, and the 7 digit phone number. Then press send. (It is
a long-distance call to and from any number you call.)
7. Move the handset to your ear with the rotatable antenna positioned vertically.
8. Wait at least 30 seconds for the call to complete – it takes time for the signal to reach the satellite,
return to earth and reach the destination phone.
9. If the phone fails to register (no "i") within about 2 minutes:
•
•
10. To end the call, press end.
11. Note: To determine the phone number assigned, press the Info button, then press Clr.
Detailed operating instructions of this unit is available in the user guide.
Customer Care 1-877-452-5782
Or enter *611 from the telephone keypad.
Satellite Icon indicates the
phone is in satellite mode.
Signal strength meter
shows 4+ bars for good
signal.
Battery life indicator
shows percentage of
charge remaining.
Power cycle the phone & reboot.
Press * for 2 seconds, then select "Globalstar" – forces the phone back
on to the home gateway
