Right Side

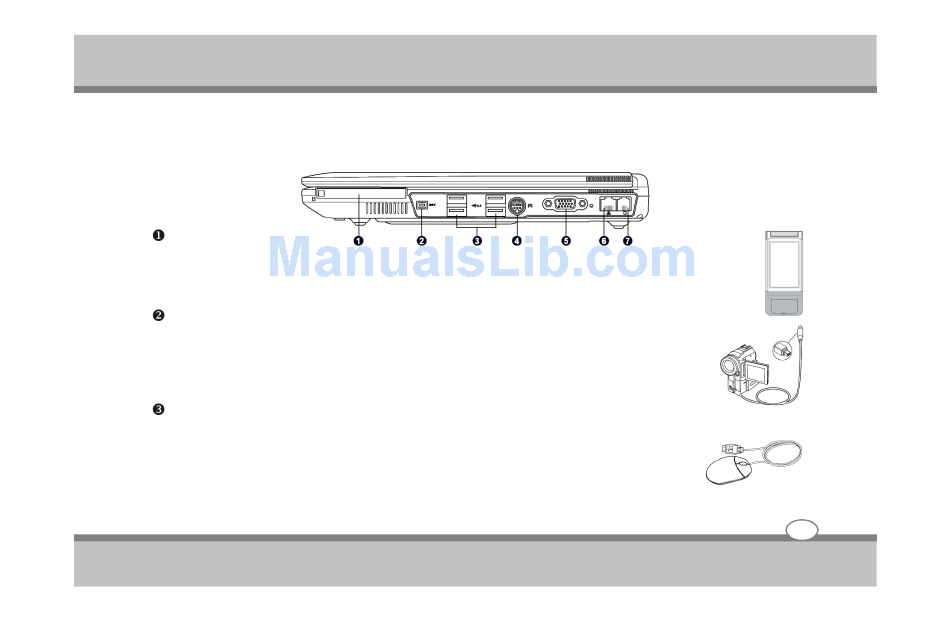

Refer to the diagram below to identify the components on this side of the Notebook PC.
PC Card Slot
One PCMCIA 2.1 compliant PC Card socket is available to support one type I/II PC card. The socket
supports 32-bit CardBus. This allows accommodation of Notebook PC expansion options such as
memory cards, ISDN, SCSI, Smart Card, and wireless network adapter.
IEEE 1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-plugging
capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400 Mbits/sec can
handle up to 63 units on the same bus. IEEE1394 is also used in high-end digital equipment
and should be marked "DV" for Digital Video port.
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as keyboards,
pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up
to 12Mbits/sec (USB 1.1) and 480Mbit/sec (USB 2.0). USB allows may devices to run
simultaneously on a single computer, with peripherals such as USB keyboards and some
newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping of
devices so that most peripherals can be connected or disconnected without restarting the computer.
