Summary of Contents for Eiki LC- NB2UW
-
Page 1: Setting Language 3

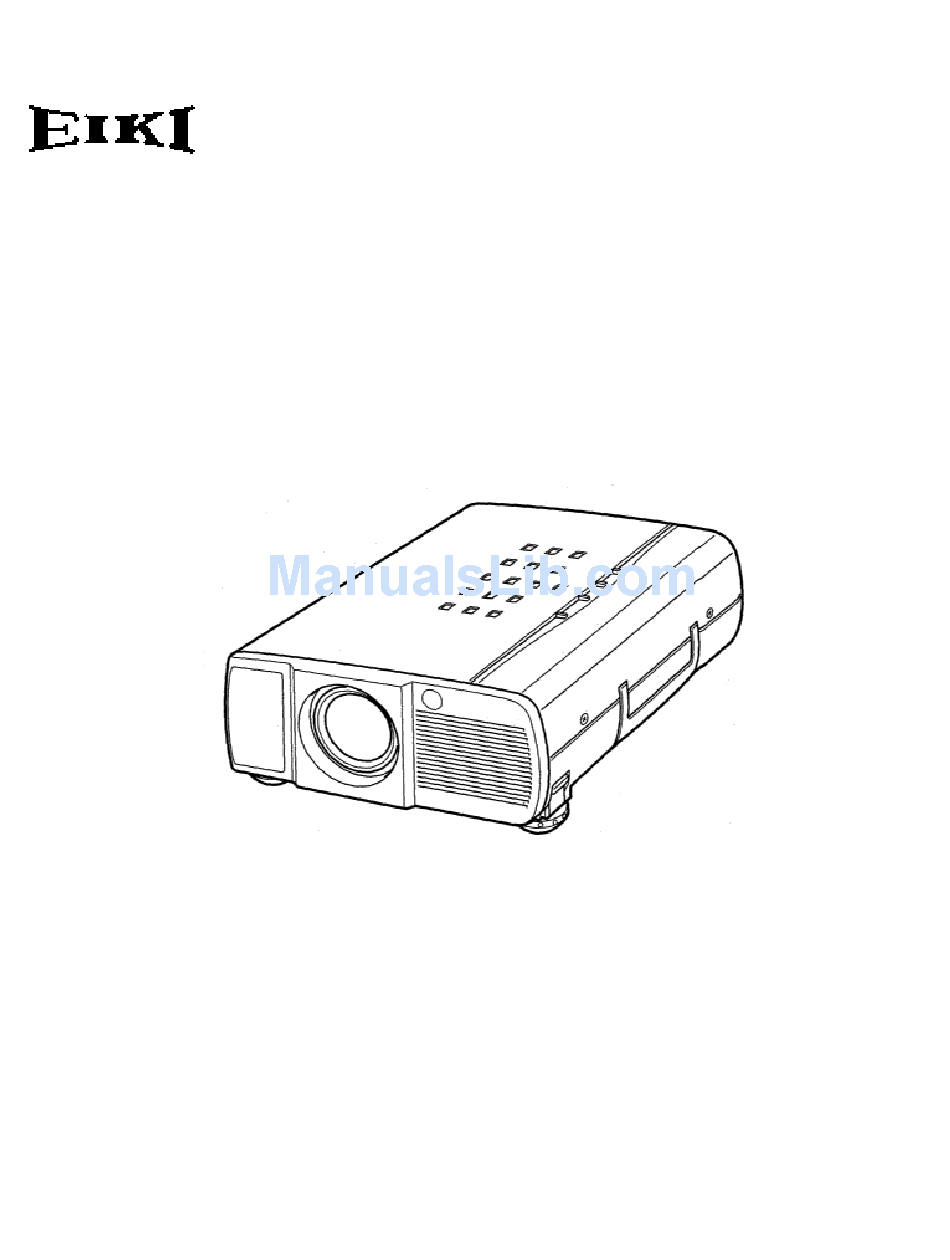

LC-NB2UW MULTIMEDIA PROJECTOR LC- NB2UW MODEL OWNER’S MANUAL... -
Page 2: Safety Precautions
LC-NB2UW INFORMATION TO THE USER NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Important Safety Instructions
LC-NB2UW IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read c. If the projector has been exposed to rain or water. before the product is operated. d. If the projector does not operate normally by following Read all of the instructions given here and retain them for the operating instructions. -
Page 4: Table Of Contents
LC-NB2UW TABLE OF CONTENTS FEATURES AND DESIGN COMPUTER MODE PREPARATION SELECTING COMPUTER MODE SELECTING COMPUTER SYSTEM NAME OF EACH PART OF THE PROJECTOR AUTOMATIC MULTISCANNING SYSTEM SETTING-UP THE PROJECTOR COMPATIBLE COMPUTER SPECIFICATIONS POSITIONING THE PROJECTOR PC ADJUSTMENT ADJUSTABLE FEET PICTURE IMAGE ADJUSTMENT CONNECTING THE AC POWER CORD ADJUST PICTURE IMAGE MANUALLY VENTILATION... -
Page 5: Features And Design
FEATURES AND DESIGN LC-NB2UW This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. •... -
Page 6: Preparation
LC-NB2UW... -
Page 7: Setting-Up The Projector
LC-NB2UW POSITIONING THE PROJECTOR • This projector is basically designed to project on a flat projection surface. • The projector can be focused from 4.6’(l .4m) 35.4’(l 0.8m). • Refer to the figure below to adjust the screen size. ROOM LIGHT The brightness in the room has a great influence on the picture quality. -
Page 8: Connecting The Ac Power Cord
LC-NB2UW CONNECTING THE AC POWER CORD This projector uses nominal input voltages of 100-120 V AC. The projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. -
Page 9: Moving The Projector
• Do not drop or give a shock to the projector, otherwise damages or malfunctions may result. • When carrying the projector, use a carrying case recommended by Eiki. • Do not transport the projector by using a courier or transport service in an unsuitable transport case. -
Page 10: Connecting The Projector
LC-NB2UW CONNECTING THE PROJECTOR Terminal : HDB15-PIN Connect the display output terminal of the computer to COMPUTER INPUT terminal of this projector with the VGA Cable (supplied). And connect to the monitor to MONITOR OUTPUT with the monitor cable (not supplied). When connecting the Macintosh computer, the MACNGA Adapter (not supplied) is required. -
Page 11: Connecting To The Video Equipment
LC-NB2UW... -
Page 12: Connecting To The Computer
LC-NB2UW To connect with the computer, refer to the figure below. Cables Used For Connections • VGA CABLE • CONTROL CABLE FOR PS/2 PORT • CONTROL CABLE FOR SERIAL PORT, or ADB PORT * • MAC ADAPTER * • MONITOR CABLE * •... - Page 13 LC-NB2UW...
-
Page 14: Before Operation
LC-NB2UW This remote control emits a laser beam as the Laser Pointer from the Laser Light Window. When the LASER button is pressed, the laser light goes on. And when the button is pressed more than 1 minute or the button is released, light goes off. -
Page 15: Remote Control Batteries Installation
LC-NB2UW To insure safe operation, please observe the following precautions: • Use (2) AA type alkaline batteries. • Replace two batteries at the same time. • Do not use a new battery with a used battery. • Avoid contact with water or liquid. •... -
Page 16: Top Controls And Indicators
LC-NB2UW... -
Page 17: Operating On-Screen Menu
LC-NB2UW HOW TO OP RATE ON-SCREEN MENU You can control and adjust this projector through ON- SCREEN MENU. Refer to the following pages to operate the each adjustment on the ON-SCREEN MENU. MOVING THE POINTER Move the pointer (see the NOTE below) by pressing POINT button(S) on the TOP CONTROL or the REMOTE CONTROL. -
Page 18: Menu Bar
LC-NB2UW... -
Page 19: Basic Operation
LC-NB2UW TURNING OF THE PROJECTOR Complete the peripheral connections (with Computer, VCR, and etc.) before turning on the projector. (Refer to “CONNECTING TO THE PROJECTOR” on Pages 10-13 for connecting those equipment. Connect the projector’s AC power cord into a wall outlet. The LAMP indicator lights RED, and the READY indicator lights GREEN. -
Page 20: Adjusting The Image
LC-NB2UW Press the ZOOM button on the Top Control or the ZOOM !/" button on the Remote Control Unit to turn into the ZOOM mode. Press the POINT UP button or the ZOOM ! button to have the image larger, and press the POINT UP button or the ZOOM " button to have the smaller. -
Page 21: No Show Function
LC-NB2UW NO SHOW FUNCTION Press the NO SHOW button on the Remote Control Unit to turn the picture into black image. This function is cancelled when the NO SHOW button is pressed again or any other function button is pressed. PICTURE FREEZE FUNCTION Press the FREEZE button on the Remote Control Unit to turn the picture remained on-screen. -
Page 22: Computer Mode
LC-NB2UW DIRECT OPERATION Select COMPUTER mode by pressing the MODE button on the Top Control or the COMPUTER button on the Remote Control Unit. MENU OPERATION Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select Computer and press the SELECT button. -
Page 23: Compatible Computer Specifications
LC-NB2UW COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 135 MHz of Dot Clock. ON-SCREEN RESOLUTION H-Freq V-Freq. ON-SCREEN RESOLUTION H-Freq V-Freq. DISPLAY DISPLAY (kHz) (Hz) (kHz) (Hz) VGA 1... -
Page 24: Pc Adjustment
LC-NB2UW This Projector can automatically tune to the display signals from most personal computers currently distributed. However, some computers employ the special signal formats which are different from the standard ones and may not be tuned by Multiscanning of this projector. If this happens, the projector cannot reproduce a proper image and the image is recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. - Page 25 LC-NB2UW Total lines The number of the total vertical lines. Adjust the number to match the image of your personal computer. Total dots The number of the total dots in one horizontal period. Adjust the number to match the image of your personal computer. Horizontal / Vertical Adjustment of the horizontal or vertical picture position.
-
Page 26: Picture Image Adjustment
LC-NB2UW ADJUST PICTURE IMAGE MANUALLY Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button. Another dialog box PICTURE IMAGE ADJUSTMENT Menu will appear. Press the POINT DOWN button and a red-arrow icon will appear. -
Page 27: Auto Image Function
LC-NB2UW AUTO IMAGE FUNCTION The Auto Image function is provided to automatically adjust Fine sync, Total dots, and Picture Position for most computers. Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select AUTO IMAGE and press the SELECT button. -
Page 28: Picture Screen Adjustment
LC-NB2UW Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN Menu will appear. Press the POINT DOWN button and a red-arrow icon will appear. -
Page 29: Video Mode
LC-NB2UW DIRECT OPERATION Select VIDEO mode by pressing the MODE button on the Top Control or the VIDEO button on the Remote Control Unit MENU OPERATION Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select Video and press the SELECT button. -
Page 30: Picture Image Adjustment
LC-NB2UW Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button. Another dialog box PICTURE IMAGE ADJUSTMENT Menu will appear. Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to adjust by pressing the POINT UP/DOWN buttons. -
Page 31: Setting
LC-NB2UW Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT button. Another dialog box SETTING Menu will appear. Press the POINT DOWN button and a red-arrow icon will appear. -
Page 32: Appendix
LC-NB2UW The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for most Personal Computers. The POINT buttons and the two CLICK buttons are used for the wireless mouse operation. The wireless mouse is usable when PC mouse pointer is displayed on the screen. -
Page 33: Maintenance
LC-NB2UW TEMPERATURE WARNING INDICATOR The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops flashing when the temperature of the projector becomes normal. When the TEMPERATURE WARNING Indicator continues to flash, check the item listed below. The Ventilation slots of the projector may be blocked. -
Page 34: Lamp Replacement
LC-NB2UW LAMP REPLACEMENT INDICATOR When the life of the Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights yellow. When the image becomes dark or the color of the image become unnatural, replacement of the Lamp is required. LAMP REPLACEMENT CAUTION •... -
Page 35: Troubleshooting
LC-NB2UW Before calling your dealer or service station for assistance, check the matters below once again. 1. Make sure you have connected the projector to your equipment a s described in section “CONNECTING THE PROJECTOR” on pages 10 ‘~ 13. 2. - Page 36 LC-NB2UW Problem: Try these Solution Remote Control Unit does • Check the batteries. not work • Check the ALL-OFF switch on the Remote Control Unit is set to “ON.”. • Make sure nothing is blocking between the Remote Receiver and the Remote Control Units.
-
Page 37: Technical Specifications
LC-NB2UW Projector Type Multi-media Projector Dimensions (W x H x D) 9.41” x 3.56” x 12.72” (239mm x 90.6mm x 323mm) (not including Adjustable Feet) Net Weight 8.6 lbs (3.9 kg) LCD Panel System 0.9” TFT Active Matrix type, 3 panels Panel Resolution 800 x 600 dots Number of Pixels... -
Page 38: Optional Parts
LC-NB2UW OPTIONAL PARTS The parts listed below are optionally supplied. When ordering those parts, give the name and the Type No. of it to the sales dealer. • Control Cable for Serial Port Type No. : POA-MCSRL • Control Cable for ADB Port Type No. - Page 39 TEL (949) 457-0200 FAX (949) 457-7878 IN CANADA, EIKI CANADA 865 Heritage Drive P.O. Box 156 Midland Ontario L4R 4K8 Canada TEL (705) 527-4084 FAX (705) 527-4087 Printed in Japan 2000 Eiki International, Inc. Part No. 610 280 7653 (1 AA6P1 P1960-- MA6B)
