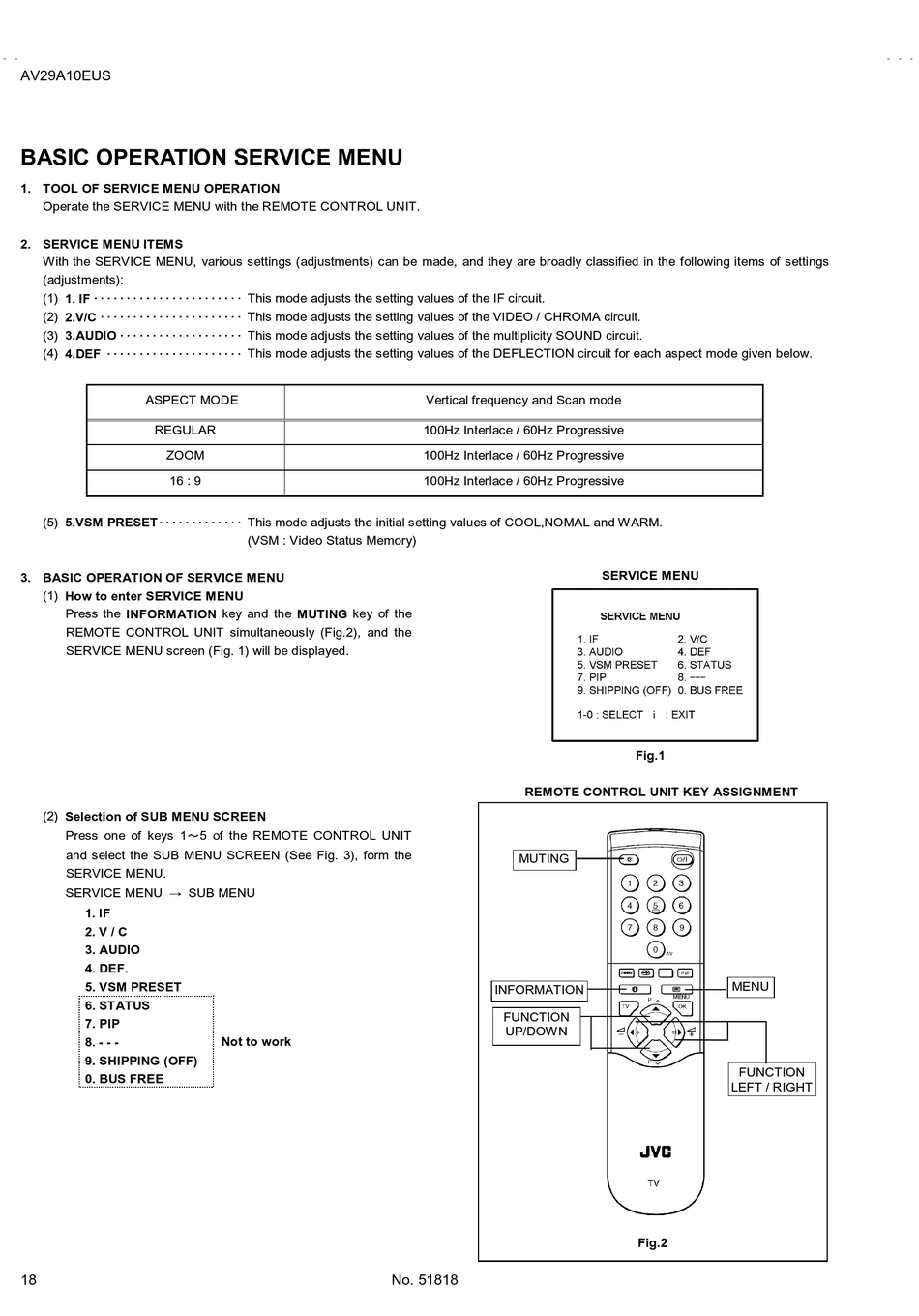

BASIC OPERATION SERVICE MENU
1. TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
2. SERVICE MENU ITEMS
With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings
(adjustments):
(1) 1. IF !!!!!!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the IF circuit.
(2) 2.V/C !!!!!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the VIDEO / CHROMA circuit.
(3) 3.AUDIO !!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the multiplicity SOUND circuit.
(4) 4.DEF !!!!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the DEFLECTION circuit for each aspect mode given below.
ASPECT MODE
REGULAR
ZOOM
16 : 9
(5) 5.VSM PRESET!!!!!!!!!!!!! This mode adjusts the initial setting values of COOL,NOMAL and WARM.
3. BASIC OPERATION OF SERVICE MENU
(1) How to enter SERVICE MENU
Press the INFORMATION key and the MUTING key of the
REMOTE CONTROL UNIT simultaneously (Fig.2), and the
SERVICE MENU screen (Fig. 1) will be displayed.
(2) Selection of SUB MENU SCREEN
Press one of keys 1 # 5 of the REMOTE CONTROL UNIT
and select the SUB MENU SCREEN (See Fig. 3), form the
SERVICE MENU.
SERVICE MENU 5 SUB MENU
1. IF
2. V / C
3. AUDIO
4. DEF.
5. VSM PRESET
6. STATUS
7. PIP
8. - - -
9. SHIPPING (OFF)
0. BUS FREE
18
(VSM : Video Status Memory)
Not to work
No. 51818
Vertical frequency and Scan mode
100Hz Interlace / 60Hz Progressive
100Hz Interlace / 60Hz Progressive
100Hz Interlace / 60Hz Progressive
REMOTE CONTROL UNIT KEY ASSIGNMENT
MUTING
INFORMATION
FUNCTION
UP/DOWN
SERVICE MENU
Fig.1
MENU
FUNCTION
LEFT / RIGHT
Fig.2
