AV29A10EUS
Measuring
Item
instrument

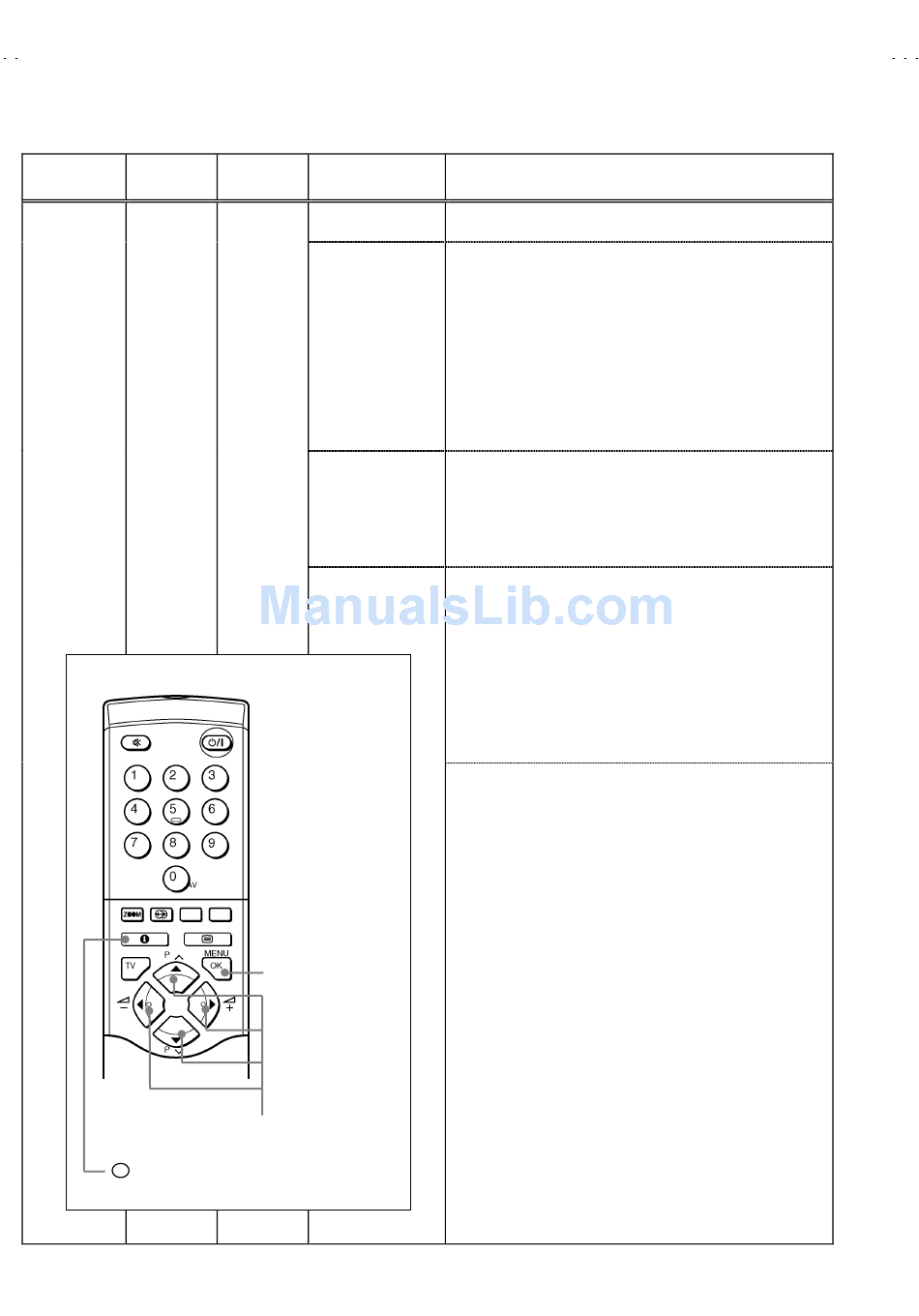

Adjustment Remote
control unit
of SUB
COLOUR! ! ! !
( INFORMATION ) key
i
24
Test point Adjustment part
7.COLOUR
(PAL/SECAM/NTSC)
PAL COLOUR
SECAM COLOUR
NTSC COLOUR
PIP
MENU ( OK ) key
FUNCTION
UP/DOWN and LEFT/RIGHT key
[Method of adjustment without measuring instrument]
1. Receive PAL broadcast.
2. Select 2.V/C from the SERVICE MENU.
3. Select 7.COLOUR with the FUNCTION UP/DOWN key.
4. Set the initial setting value for PAL COLOUR with the
FUNCTION LEFT/RIGHT key.
5. If the colour is not the best with the initial set value, make fine
adjustment until you get the best colour.
6. Press the MENU key and memorize the set value.
1. Receive a SECAM broadcast.
2. Make fine adjustment of SECAM COLOUR in the same manner
as for above.
(NTSC 3.58 COLOUR)
1. Input a NTSC 3.58MHz COMPOSITE VIDEO signal from the
EXT terminal.
2. Make similar fine adjustment of NTSC 3.58 COLOUR in the
same manner as for above.
(NTSC 4.43 COLOUR)
1. Input a NTSC 4.43MHz COMPOSITE VIDEO signal from the
EXT terminal.
2. Make similar fine adjustment of 4.43 COLOUR in the same
manner as for above.
No. 51818
Description
