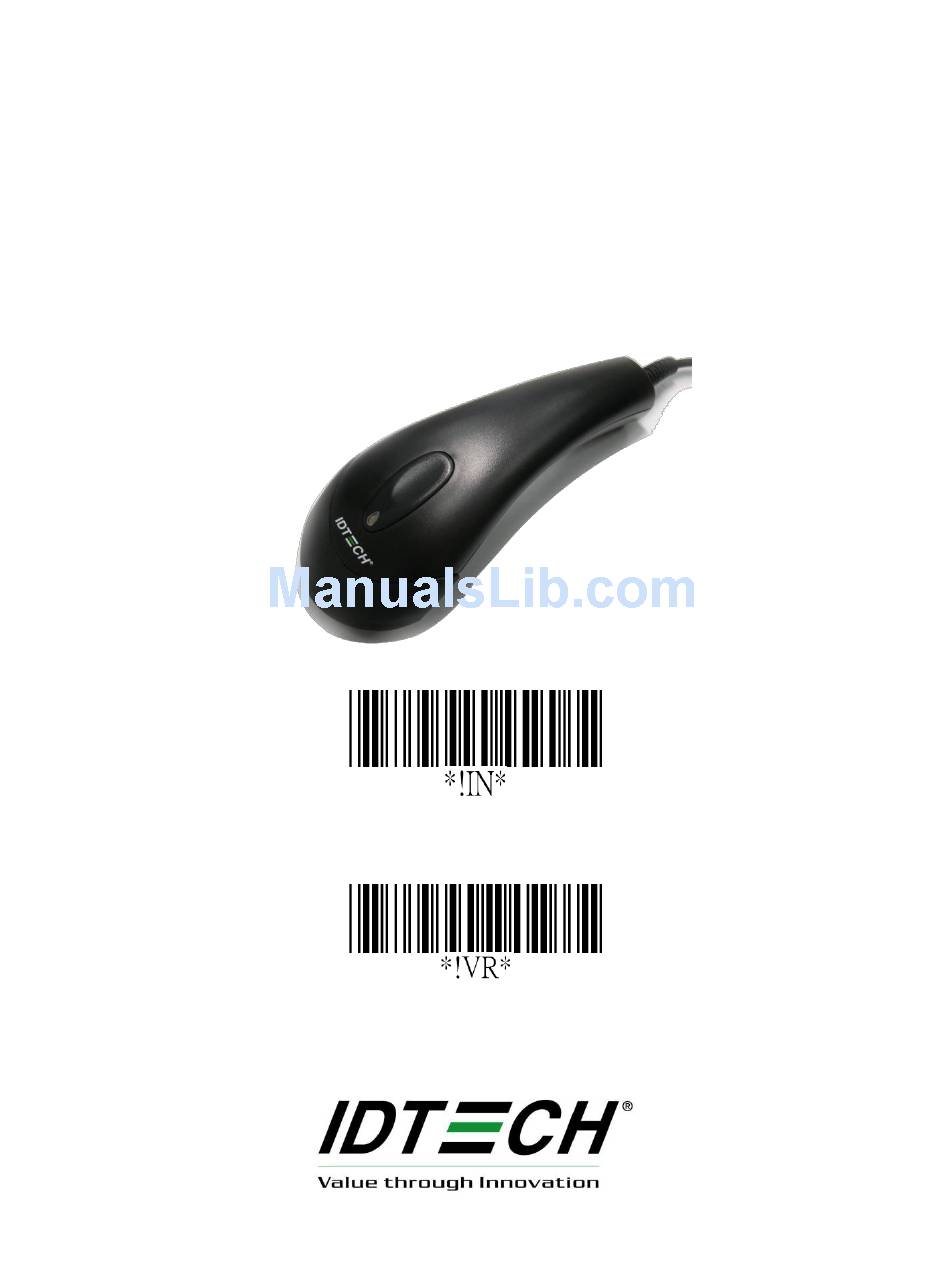

- Page 1 ValueScan II Barcode Scanner Quick Start Manual Default Check Version...
-
Page 2: Fcc Warning Statement
FCC WARNING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Limited Warranty
LIMITED WARRANTY ID TECH warrants to the original purchaser for a period of 36 months from the date of invoice that this product is in good working order and free from defects in material and workmanship under normal use and service. ID TECH’s obligation under this warranty is limited to, at its... - Page 4 Just point and scan! The ValueScan II reads all commonly used barcode symbologies from contact up to a distance of 125mm. Available in black or gray to match most retail systems, the ValueScan II offers easy plug and play installation. For all retail and similar applications, this small mid-range imager delivers unmatched cost / performance.
- Page 5 Section 2 INSTALLATION AND OPERATION Installation- Keyboard Wedge First of all, you must switch off power for the terminal/computer. Disconnect the keyboard cable from the back of the terminal/computer and connect to the interface cable of the scanner. Connect the interface cable of the scanner to the terminal/computer. Turn the terminal/computer power on.
-
Page 6: Pin Assignments
Pin Assignments Keyboard Wedge Connector (To Host Side): Mini-DIN 6P Male Mini-DIN 6P Female DATA / PC CLK / KB DATA / KB VCC (+5V) VCC (+5V) CLK / PC Mini-DIN 6P Female Connector Mini-DIN 6P Male Connector RS-232 DB-9F Connector (To Host Side): Definition VCC (+5V) -
Page 7: Troubleshooting
Section 3 TROUBLESHOOTING Troubleshooting assistance for common problems: The data from the Scanner is not as expected. ANS: Please download full User’s Manual and follow all instructions. The Scanner does not output data. . ANS: Check basic operation: connect the cable; see if the desired barcode type (symbology) is enabled. -
Page 8: Specification
Section 4 SPECIFICATION ValueScan II Specification Operational Light Source 660 nm Visible Red LED Optical System 2048 pixel CCD (Charge-coupled device) Depth of Scan Field 0-180 mm (CODE 39, 500Lux, PCS=90%, 20mils) Scanning Width 50 mm wide @ 10mm Scan Speed... - Page 9 Operating Temperature 0℃ to 45℃ (32℉ to 113℉) Storage -20℃ to 60℃ (-4℉ to 140℉) Humidity 10% to 90% relative humidity, non-condensing Light Level Up to 20000 Lux Shock 1.5m drop onto concrete Contaminants Seals to resist airborne particulate contaminants Ventilation None required Programming...
-
Page 10: Default Setting
Section 5 READING MODE SETTINGS Default setting For each barcode shown as below: V = Enabled as default setting - = Not supported Empty space = Download User’s Manual; Please visit IDTECH website: www.idtechproducts.com Checksum Checksum Read Code Code Type Verification Transmission Enable... -
Page 11: Testing Codes
Section 6 TESTING CODES Code 128 UCC/EAN-128 UPC-E UPC-A Interleaved 2 of 5 Code 39 Full User’s Manual is available for download on www.idtechproducts.com... - Page 12 ID TECH 10721 Walker Street Cypress, CA 90630 (714) 761-6368 www.idtechproducts.com 80104501-001 rev.A...
