USER MANUAL

QSM-303V

MIC Mixer Amplifier

- 1 -

Table of Contents

Do you have a question about the QSM-303V and is the answer not in the manual?

Page 1: User Manual
USER MANUAL QSM-303V MIC Mixer Amplifier - 1 -...
Page 2 WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT As the colours of the wires in the mains The wires in the mains lead are coloured lead of this apparatus may not correspond In accordance with the following code: with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green and Green and Yellow:...

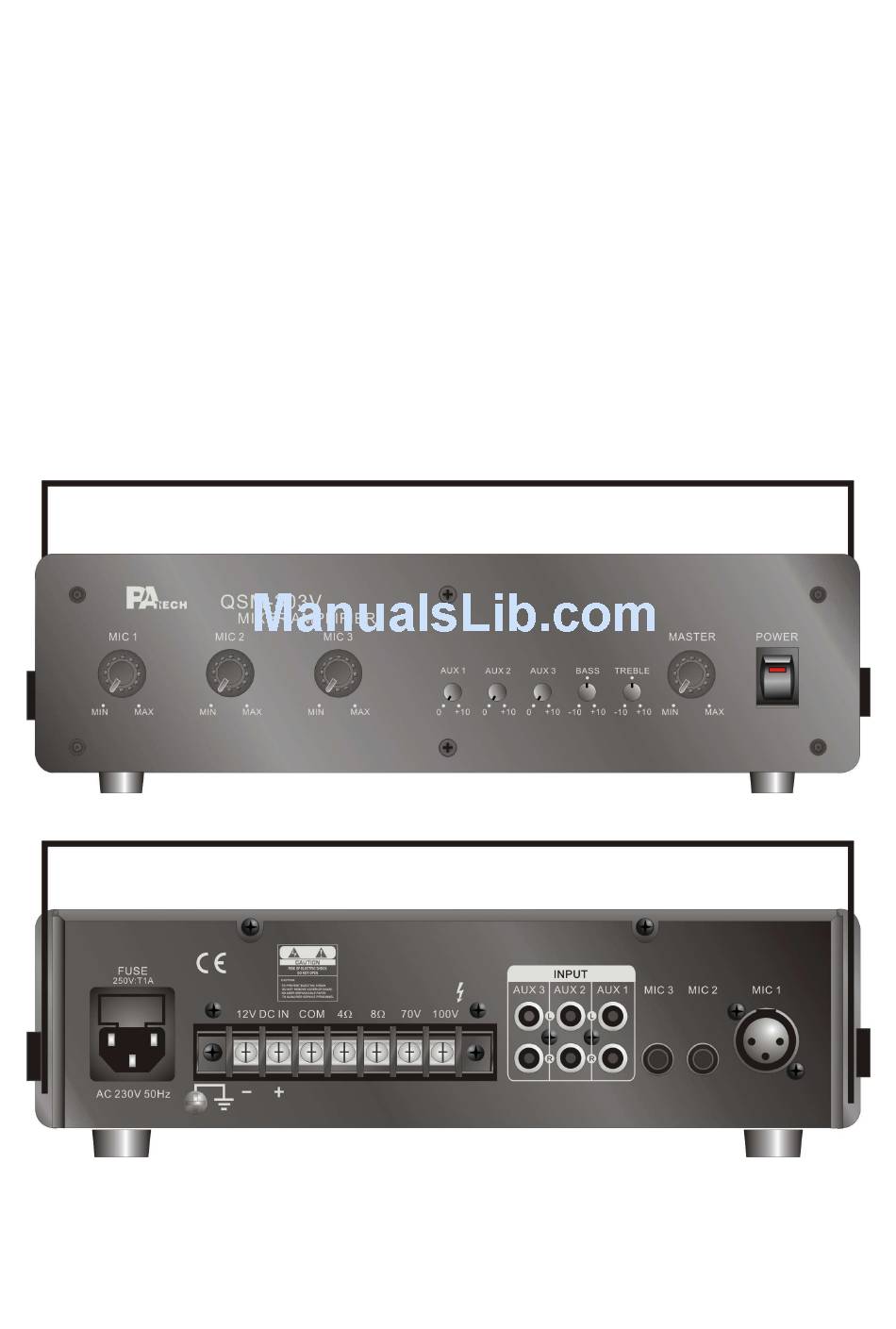

Page 3 QSM-303V Mixer Amplifier FRONT PANEL 1. Mic. 1 Level Control 6. AUX 3 Level Control 2. Mic. 2 Level Control 7. Master Tone Control (Bass) 3. Mic. 3 Level Control 8. Master Tone Control (Treble) 4. AUX 1 Level Control 9.
Page 4 Power Source The amplifier is fixed at 115V AC or 230V AC. It depends on the territory main voltage. Battery Connection (12Vdc) When using external batteries, earth the amplifier via the screw terminal because of the high voltage present. Electrical stability of the system will be improved by providing a good earth ground. NOTE: the connection cable must be fitted with an in-line fuse - q uick blow type 5A (60V).
Page 5 QSM-303V Technical Specifications Type Mixer Amplifier Model QSM-303V Power Mains Voltage AC 115/230V, 50/60 Hz ± 10% Supply Battery DC 12V (MAX 10% deviation) Voltage Total Harmonic Distortion <= 10% @ 1KHz, rated power Mic 1 XLR (Balanced) Mic 2 ~ 3 1/4" Phono Jack (Unbalance) Sensitivity Mic 1~3 , 1.5mV @600 ohm...
