Summary of Contents for PA Tech PMA-200
-
Page 1: User Manual

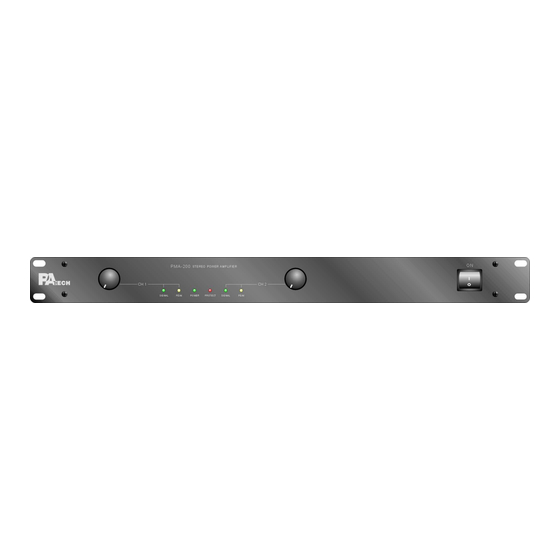

USER MANUAL PMA-200 POWER AMPLIFIER... -
Page 2: Table Of Contents
INDEX: INTRODUCTION ------------------------------------------- 3 SAFETY INSTRUCTIONS ------------------------------ 3 OPERATING PRECAUTIONS --------------------------- 4 FRONT & REAR PANEL DISPLAY--------------------- 5 FEATURES OF PANAL CONTROLS ------------------- 5 CONNECTING INPUTS----------------------------------- 6 SPEAKER CONNECTIONS ------------------------------ 8 PMA-200 SPECIFICATION ------------------------------11... -
Page 3: Introduction
INTRODUCTION Taking this opportunity, we express our sincere thanks to clients who purchased our products. Whole member of our Company, with a pride of long history and tradition, are paying hardest efforts to turn out products which can go with consumers’ taste under continuous R&D and QC based on long-accumulated know-how. -
Page 4: Operating Precautions
8. Heat The appliance should be situated away from heat sources such as radiators, heat resisters, stoves, or other appliances(including amplifiers) which product heat. 9. Power Source The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. -

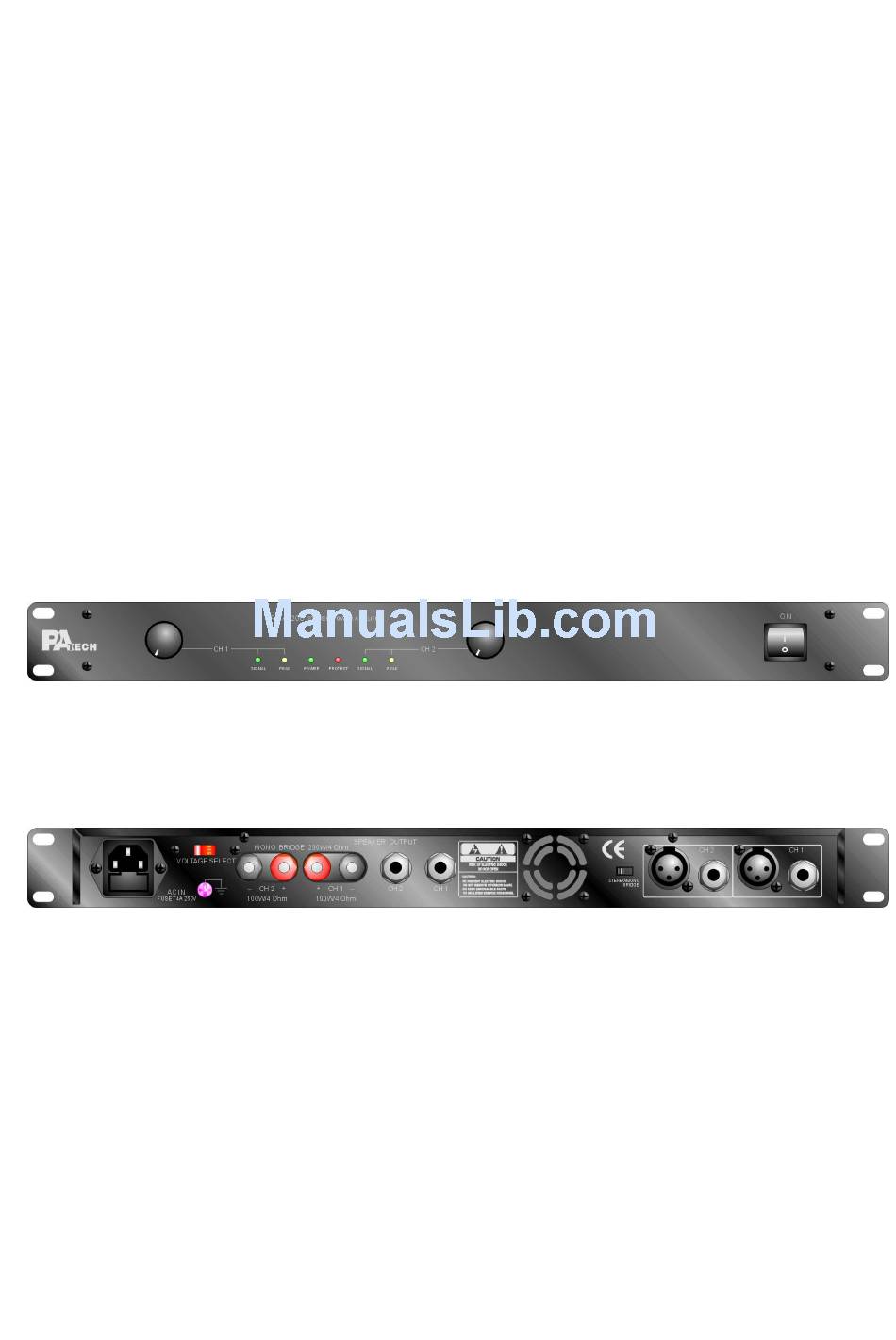

Page 5: Front & Rear Panel Display
power-up to prevent speaker damage if there is a high signal level at the inputs. Whether you buy them or make them, use good-quality input and speaker cables. The Most intermittent problems are caused by faulty cables. Use good-quality connectors and wire along with good soldering technique to ensure trouble-free reliability. -
Page 6: Connecting Inputs
5. SIGNAL LED This green LED lights when its channel produces an output signal of about 4 volts RMS or more ( 1 volt or more at the input, with 0dB attenuation), indicating that there is amplified signal present in the amplifier. It is useful in determining whether a signal is reaching and being amplified by the power amplifier. - Page 7 Precautions: 1. Bridge mono mode makers it possible to drive thousands of watts into a single speaker AC current consumption will usually be higher avoid excessive single level and made sure the wiring speaker can handle the power. 2. Do not use 2-ohm loads. Installation: Rack mounting of the amplifier is optional use four screws and washers when mounting the amplifier to the front rack rails.
-
Page 8: Speaker Connections
SPEAKER CONNECTIONS Connect the left-side loudspeaker to the left-channel speaker terminals and the right side loudspeaker to the right-channel speaker terminals of this unit, take care to observe connect (+) and (-) polarity. If the polarity of one speaker is reversed, the speakers will be out of phase, causing a loss in bass response and unstable, irregular stereo imaging. - Page 9 Speaker TM Output: The PMA amplifier offers a choice of output connections, with two 6.3mm Phone jacks. The 6.3mm Phone jack connector is designed specially for high-power speaker connections For easier insertion, insertion 6.3mm Phone jack to break banana jack output SPEAKER CABLING: Larger wire size and shorter length minimize both loss of power and degradation of damping factor.
- Page 10 Binding post outputs: 1. Strip back insulation not more than 13mm(1/2 inch) 2. Insert wire fully so that none of the conductor is exposed: tighten barrel (use coin if necessary) 3. Non-European models only… 4. Spade lugs must have insulated barrels to prevent electric shock. Warning: To prevent electric shock, do not operate the amplifier with any of the conductor portion of the speaker wire exposed.
-
Page 11: Pma-200 Specification
PMA 200 Technical Specifications Type Power Amplifier Model PMA200 Supply Mains AC 115V or 230V, 50 / 60Hz ± 10% Switchable Voltage Output power Rated: 100Wx2@8 1%THD 130Wx2@4 280W@4 (Bridged) 200W@8 (Bridged) Total harmonic <=0.05% at 20Hz ~ 20KHz distortion Sensitivity 1V (full power) Signal to noise ratio...
