Page 1: User Manual
USER MANUAL QSM-606A QSM-612A QSM-624A MIXER AMPLIFIER... - Page 2 WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT As the colours of the wires in the mains The wires in the mains lead are coloured lead of this apparatus may not correspond In accordance with the following code: with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green and Green and Yellow:...

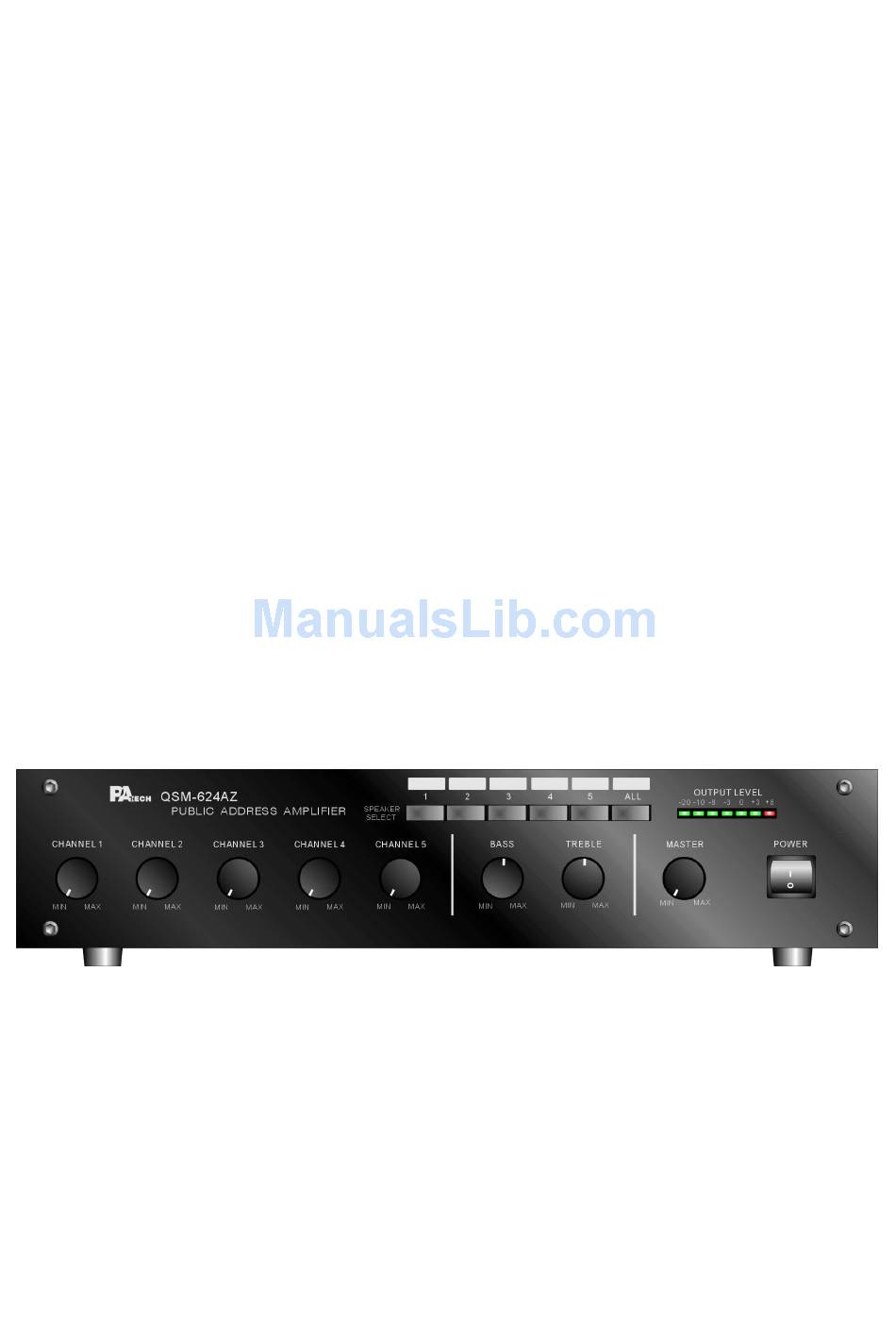

- Page 3 QSM-606A, QSM-612A, and QSM-624A Mixer Amplifier FRONT PANEL 1. Channel 1 Volume Control 7. Master Tone Control (Treble) 2. Channel 2 Volume Control 8. Master Volume Control 3. Channel 3 Volume Control 9. Power On / Off switch 4. Channel 4 Volume Control 10.
- Page 4 1. Mains Input Socket 10. Channel 5/Aux 2 Input (6.3 Phone Jack) 2.Power Fuse 11. MIC 4/Aux 1 Selector Switch 3. Earth Connection Screw 12. Channel 4/Aux 1 Input (6.3 Phone Jack) 4. DC Power Supply Terminals 13. MIC 3/Phono Selector Switch 5.
- Page 5 Up to three power amplifier can be connected in this way. Input must be from power amp in (Rear Panel) (Mic1 XLR Jack) QSM-606A, QSM-612A, and QSM-624A Technical Specifications Type Mixer Amplifier...
- Page 6 Controls Front Panel Power switch 5 zone control and all call push switch Channel 1~5 volume control Tone controls (Bass, Treble) Master volume control Rear Panel: Mic 3/Phono Slide switch Mic 4/Auxl Slide switch Aux 3 volume control AC 115V / 230V voltage Selector switch Indicators Power indicator (LED), output level indicators (3 LEDS) AC power consumption...
