- Page 1 USER MANUAL QSM-306V MIC Mixer Amplifier - 1 -...
- Page 2 WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT As the colours of the wires in the mains The wires in the mains lead are coloured lead of this apparatus may not correspond In accordance with the following code: with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green and Green and Yellow:...

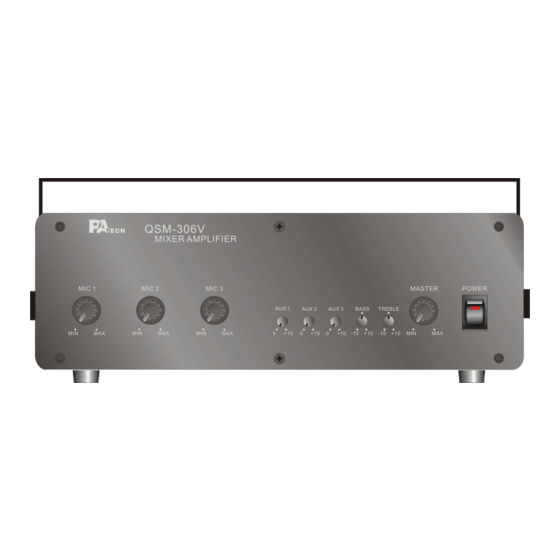

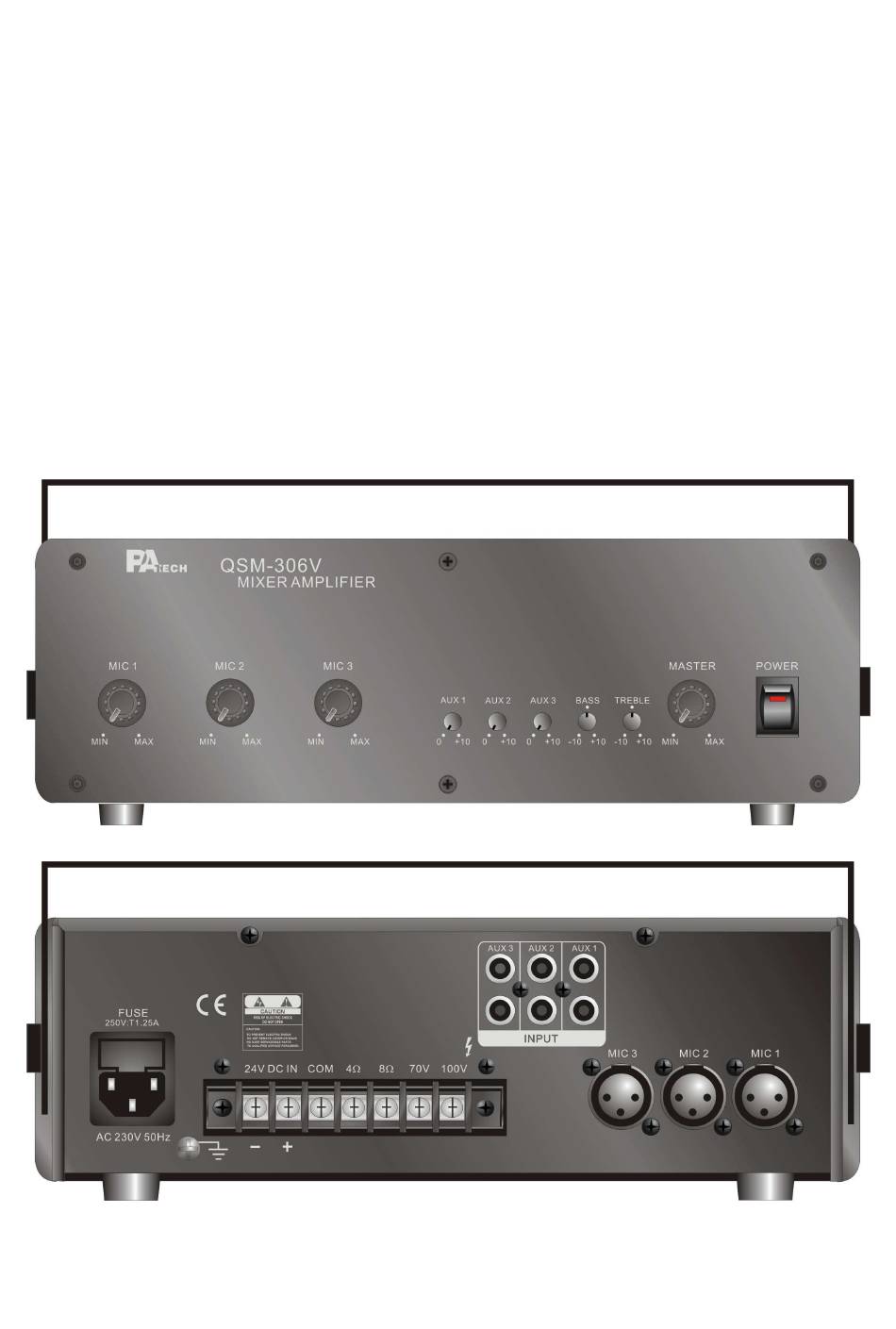

- Page 3 QSM-306V Mixer Amplifier Panel Description FRONT PANEL 1. Mic. 1 Level Control 6. AUX 3 Level Control 2. Mic. 2 Level Control 7. Master Tone Control (Bass) 3. Mic. 3 Level Control 8. Master Tone Control (Treble) 4. AUX 1 Level Control 9.
- Page 4 Power Source The amplifier is fixed at 230V AC. It depends on the territory main voltage. Battery Connection (24Vdc) When using external batteries, earth the amplifier via the screw terminal because of the high voltage present. Electrical stability of the system will be improved by providing a good earth ground. NOTE: the connection cable must be fitted with an in-line fuse - q uick blow type 8A (60V).
- Page 5 QSM-306V Technical Specifications Type Mixer Amplifier Model QSM-306V Power Mains AC 230V, 50 Hz ± 10% Supply Voltage Battery DC 24V (MAX 10% deviation) Voltage Power Output Total Harmonic <= 10% @ 1KHz, rated power Distortion Mic 1 ~3 XLR Jack (Balanced) 1.5mV @600 ohm...
