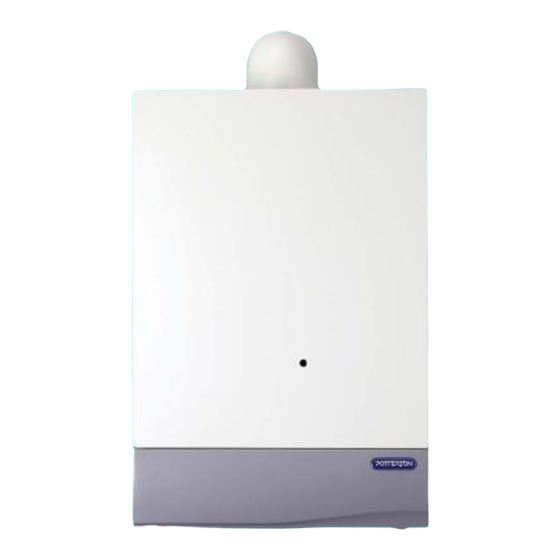

Potterton Suprima 30 HE Installation & Service Instructions Manual

Condensing central heating boiler
Hide thumbs Also See for Suprima 30 HE:
Table of Contents

Advertisement

Quick Links

See also: Installation & Service Instructions Manual
Installation & Service Instructions
Suprima
30 - 80 HE
Condensing
Central Heating Boiler
Only a flue approved for the Suprima HE can be used.
