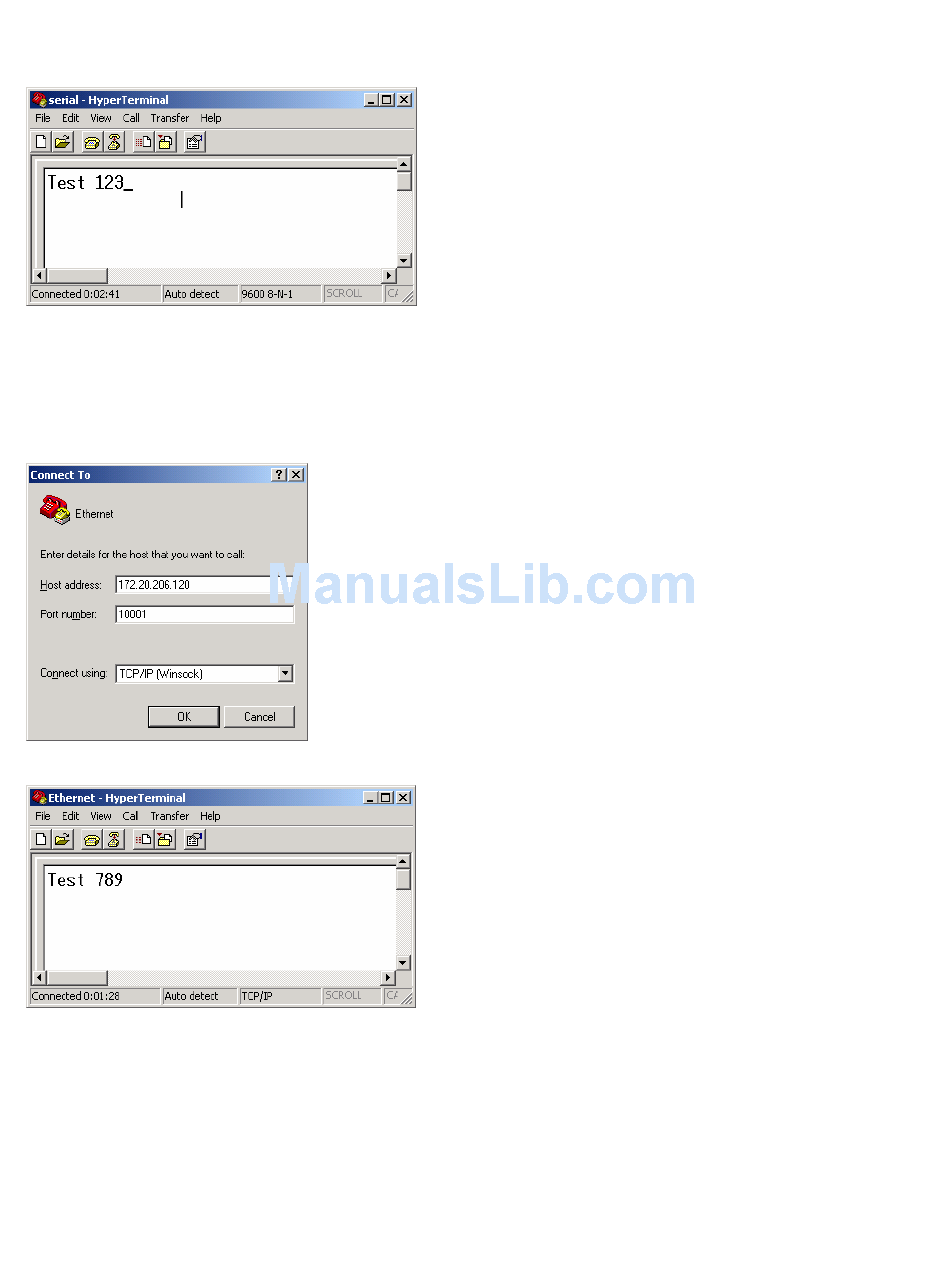

The status message at the bottom of the Hyper Terminal screen should show it is connected.
TCP/IP Session
Start another session of HyperTerminal. Enter a name for the new connection and click OK. Example:
ETHERNET
In the Connect To dialog box, go to the Connect using field and select TCP/IP (Winsock). Enter the IP
address of the Wi232 and enter 10001 (default) for the Port number. Click OK. This is the Ethernet terminal.
The status message for the TCP/IP connection should show it is connected.
Resize the two HyperTerminal windows so you can see both on your screen. Select one of the Hyper
Terminal screens and begin to type characters. The typed characters should appear in the other Hyper
Terminal window. You may have to go back and forth between the screens for the characters to appear.
You are sending characters between the serial port and the wireless Ethernet port, exactly what the Wi232
was designed to do.
Continue with Configuration Using Web-Manager on page 3-1.
