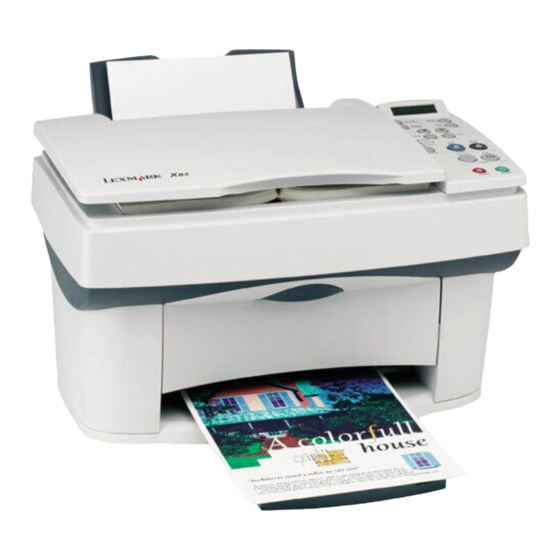

Lexmark X83 Service Manual
Scan / print / copy
Hide thumbs
Also See for X83:
- User manual (96 pages) ,
- Getting started manual (20 pages) ,
- Service manual (66 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Lexmark X83
Summary of Contents for Lexmark X83
- Page 1 Lexmark X83, X85 Scan / Print / Copy 4403-XXX Extracted From Service Manual...
- Page 2 You can purchase additional copies of publications related to this product by calling 1-800-553-9727. In other countries, contact your point of purchase. Lexmark is a trademark of Lexmark International, Inc., registered in the United States and/or other countries.
-
Page 3: Parts Catalog
4403-XXX 7. Parts Catalog How to Use This Parts Catalog • SIMILAR ASSEMBLIES: If two assemblies contain a majority of identical parts, they are shown on the same list. Common parts are shown by one index number. Parts peculiar to one or the other of the assemblies are listed separately and identified by description. -
Page 4: Assembly 1: Covers
4403-XXX Assembly 1: Covers Service Manual... - Page 5 4403-XXX Assembly 1: Covers Asm- Part Units Description Index Number 1–1 12G6141 Cover Assembly, Rear –1 56P1274 Cover Assembly, Rear (X85) –2 12G6140 Felt Pad Assembly –3 12G6138 Base Assembly –3 56P1272 Base Assembly (X85) –4 12G6135 Cover, Right –4 56P1270 Cover, Right (X85) –5...
- Page 6 4403-XXX Assembly 1 (cont.): Covers Service Manual...
- Page 7 4403-XXX Assembly 1 (cont.): Covers Assembly 1: Covers Asm- Part Units Description Index Number 1–1 12G6129 Scanner Lid Assembly –1 56P1266 Scanner Lid Assembly (X85) –2 12G6136 Paper Support ASF –2 56P1271 Paper Support ASF (X85) –3 12G6126 Top Housing Assembly –3 56P1262 Top Housing Assembly (X85)
- Page 8 4403-XXX Assembly 2: Paper Feed, Frame and Carrier Transport Service Manual...
- Page 9 4403-XXX Assembly 2: Paper Feed, Frame and Carrier Transport Asm- Part Units Description Index Number 2–1 12G6121 ASF Module –1 56P1260 ASF Module (X85) –2 12G6120 Printing Engine –3 12G6151 Encoder Strip with Clip –4 12G6123 Idler Pulley Assembly –5 12G6149 Belt, Carrier –6...
-
Page 10: Assembly 3: Electronics
4403-XXX Assembly 3: Electronics Service Manual... - Page 11 4403-XXX Assembly 3: Electronics Asm- Part Units Description Index Number 1–1 12G6177 CCD Module Assembly with Cable 12G6176 Cable, CCD –2 12G6125 Gear Train Assembly –3 12G6130 Operator Panel Assembly –3 56P1267 Operator Panel Assembly (X85) 12G6131 Operator Panel Overlays –4 56P1263 Board, System (X85)
