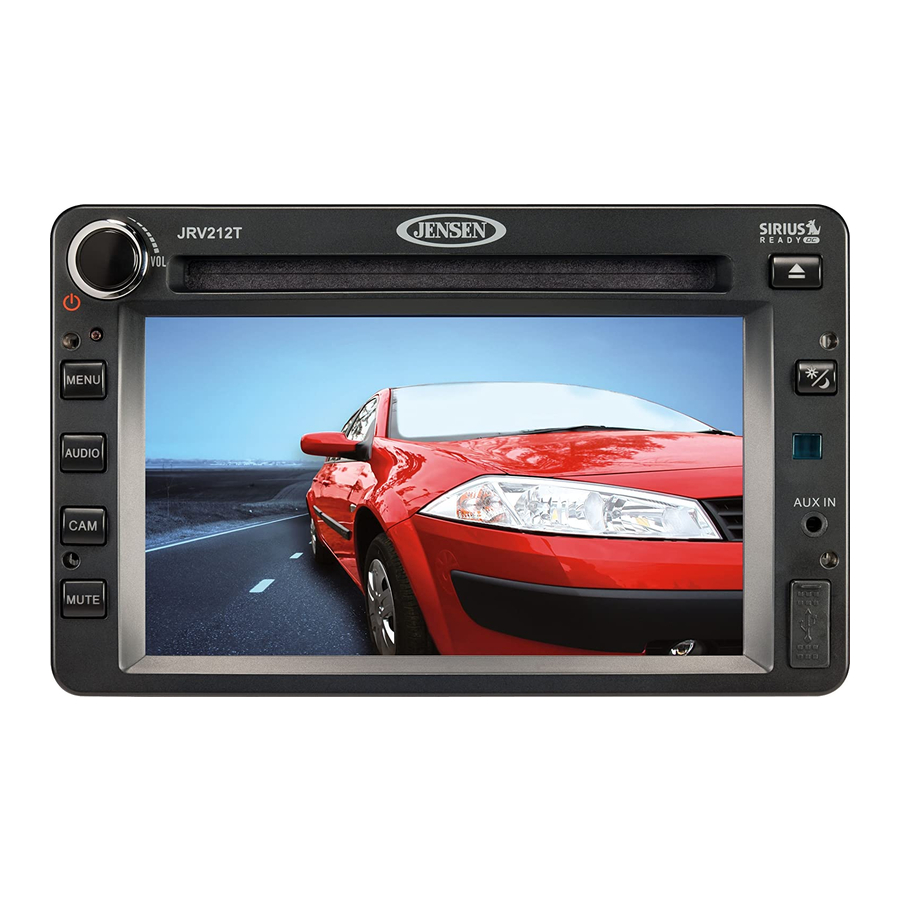

Jensen JRV212T Quick Reference Manual

POWER:
Press & hold to turn screen OFF.
Touch screen to turn back ON.
VOL:
MENU:
SYSTEM MENU.
AUDIO:
MODE & select a playback source.
Press & hold to access AUDIO
MENU to adjust Bass, Treble,
Balance, Fade and EQ options.
Press to return to current
playback mode.
CAM:
mode. Press & hold to access
CAMERA SETUP OPTIONS.
MUTE:
Press again to restore audio.
Current Preset Group
TUNE:
NEXT or PREVIOUS station.
SEEK:
or PREVIOUS strongest station.
BAND:
FM (18 channel memory locations)
or AM (12 channel memory locations).
PRESET:
hold desired preset number to store current channel
playing. Momentarily press to recall stored channel.
NOTE: You can store up to 30 channels (18 FM & 12 AM).
*Some features may not be available depending on installed factory options. Features NOT available for play will be ghosted.
www.asaelectronics.com
JRV212T QRG.indd 1
JRV212T
Press to turn ON/OFF.
Rotate to adjust volume output.
Press to access the
Press to access AUDIO
Press to access CAMERA
Press to MUTE audio.
Touch + or – to tune to
Touch + or – to seek to NEXT
Touch to select preset group
Touch to display station preset list. Press &
*Remote control sold separately.
quick reference guide
PTY:
Touch to view program type categories
list. Touch desired program type and then
touch SEEK + or – to start search.
EJECT:
Press to EJECT CD.
DAY/NIGHT:
Press to switch between
DAY or NIGHT dimming levels for display.
Press & hold to access DISPLAY
SETUP menu to adjust DAY or NIGHT
dimming levels.
AUX IN: Connect portable audio player.
USB:
Connect a USB Jump Drive.
NOT FOR iPOD CONTROLS.
Current Time
WB: Touch to listen to WEATHERBAND.
AM/FM: Touch to access AM/FM Mode.
Current station: The currently selected
station will be highlighted in blue.
AS/PS:
Touch to SCAN through currently
stored presets. Touch & hold to STORE
strongest broadcast stations in your area.
www.JENSENRVDirect.com
12/15/2011 2:56:35 PM
