JCD2010
MOBILE CD PLAYER / RECEIVER
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JCD2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jensen JCD2010

Summary of Contents for Jensen JCD2010

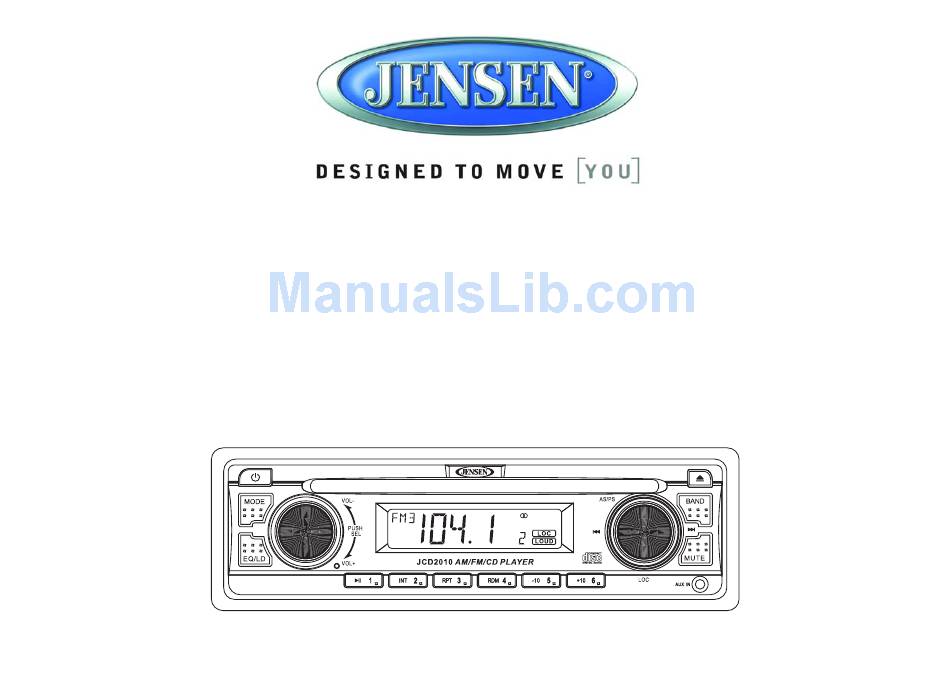

  • Page 1 JCD2010 MOBILE CD PLAYER / RECEIVER Installation and Operation Manual...

  • Page 2: Safety Information

    JCD2010 SAFETY INFORMATION DISC NOTES Compatible Disc Types When Driving Keep the volume level Iow enough to be aware of your surroundings. Table 1: General Disc Information When Washing your Vehicle Do not expose the product directly to water, as this can cause electrical shorts, fire or other Diameter/ damage.

  • Page 3: Installation

    JCD2010 After completing the wiring connections, turn the unit on to confirm operation (vehicle INSTALLATION ignition switch must be on). If the unit does not operate, recheck all wiring until the Before You Begin problem is corrected. Once proper operation is achieved, turn the ignition switch off and proceed with final mounting of the chassis.

  • Page 4: Din Rear-Mount (Method B)

    JCD2010 DIN Rear Mount (Method B) This unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some vehicles to mount the radio to the dashboard. Please consult with your local mobile stereo shop for assistance on this type of installation.
  • Page 5 JCD2010 WIRING PIN NO. WIRE COLOR FUNCTION YELLOW +12VDC BATTERY (MEMORY) BLACK GROUND GREEN REAR LEFT SPEAKER (+) GREEN/BLACK REAR LEFT SPEAKER (-) PURPLE REAR RIGHT SPEAKER (+) PURPLE/BLACK REAR RIGHT SPEAKER (-) BLUE POWER ANTENNA EMPTY NO CONNECTION ORANGE...

  • Page 6: Basic Operation

    JCD2010 BASIC OPERATION Volume Level Use the button to adjust the Volume level from “00” (lowest) to “63” (highest). Bass Level Use the button to adjust the Bass (BA) level range from “-7” to “7”. Treble Level Use the button to adjust the Treble (TR) level range from “-7” to “7”.

  • Page 7: Tuner Operation

    JCD2010 Automatically Store / Preset Scan (AS/PS) TUNER OPERATION Automatically Store Select a band (if needed). Press and hold the AS/PS button (16) for more than 2 seconds to automatically select six strong stations and store them in the current band. The new stations replace any stations already stored in that band.

  • Page 8: Controlling Disc Playback

    JCD2010 CD OPERATION Random Play (RDM 4) Press the RDM 4 button (12) on the control panel during disc play to play all tracks on a CD in random, shuffled order. Press RDM 4 again to stop random play. Insert and Eject Disc Insert a disc, label-side up, with the unit turned on.

  • Page 9: Specifications

    JCD2010 SPECIFICATIONS TROUBLESHOOTING Signal to Noise Ratio..........> 70dB...
  • Page 10 ASA Electronics Corporation www.asaelectronics.com www.jensenrvdirect.com ©2010 ASA Electronics Corporation v.022610...
