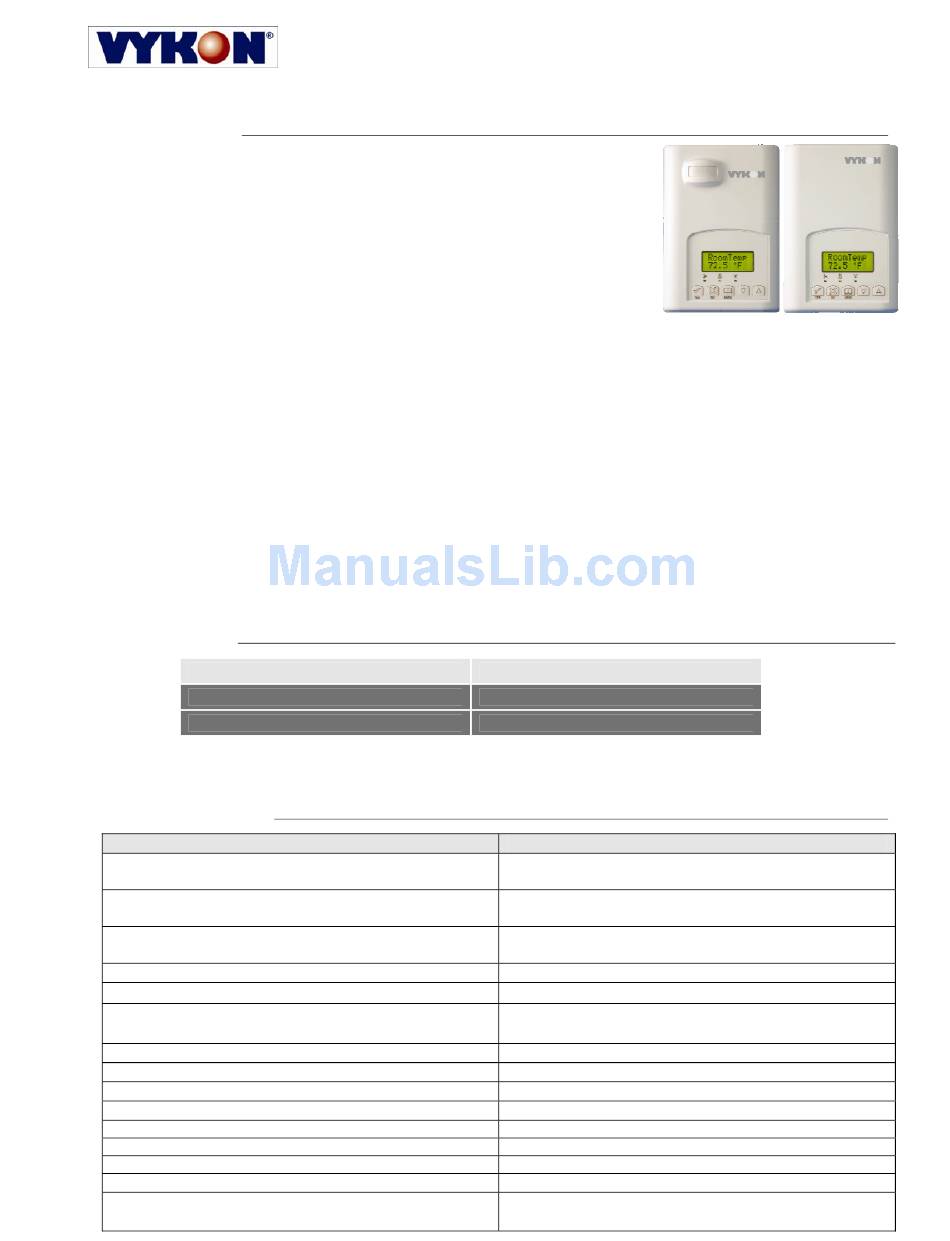

Vykon VT76X7 User Manual

Product overview
The VT76x7 PI thermostat family is specifically designed for single stage
and multi-stage control of heating/cooling equipment such as rooftop and
self-contained units with humidifier and/or dehumidifier. The product
features an embedded complete humidity solution with an intuitive, menu-
driven, backlit LCD display that walks users through the programming
steps, making the process extremely simple. Accurate temperature &
relative humidity control is achieved due to the product's PI time
proportional control algorithm, which virtually eliminates temperature offset
associated with traditional, differential-based thermostats.
All models contain one digital input, which can be set by the user to
monitor filter status, activate a remote temporary occupancy switch, and/or used as a general purpose service
indicator. The two models contain a SPST auxiliary switch, which can be used to control lighting or disable the
economizer function and a discharge air sensor input.
The thermostats are also compatible with the new Vykon PIR cover accessories. Thermostats equipped with
a PIR cover provide advanced active occupancy logic, which will automatically switch occupancy levels from
Occupied to Stand-By and Unoccupied as required by local activity being present or not. This advanced
occupancy functionality provides advantageous energy savings during occupied hours without sacrificing
occupant comfort. All thermostats can be ordered with or without a factory installed PIR cover ( see ordering
notes below ).
The additional following documentation is available:
•
VYKONStat PIR Ready VT76xx Series BACnet Integration Guide
•
VYKONStat PIR Ready VT6x7 Series LonWorks Integration Guide
•
VYKONStat PIR Application Guide
•
VYKONStat PIR Cover Assembly Installation Guide
•
VYKONStat Wireless Controller Application Guide
Models Available
Model (programmable)
Model (non-programmable)
Ordering Information Notes:
(X) model number represents available communication options: X=none for Stand-alone, X=B for BACnet MS-TP, X=E for Echelon and X=W for
-
Wireless
Thermostats can be ordered with a factory installed PIR cover. Please use (5500) extension instead of the (5028) only extension.: Ex. VT7607B5500E.
-
Thermostats ordered without a PIR cover can be retrofitted with a separate PIR accessory cover afterwards when required
-
Features and benefits
Features
• Advanced occupancy functions
• Ready for PIR accessory cover
• Embedded humidification sequence (0-10 Vdc output)
and dehumidification sequence (dry contact)
• Internal embedded RH sensor
• Proportional RH high limit override
• Humidity setpoint reset based on outdoor temperature
• PI time proportioning algorithm
• 1 digital input
• Smart fan
• Unique configuration key with password protection
• 6 hour reserve time for clock
• Remote outdoor temperature sensor
• Auxiliary output
• Discharge air humidity sensor ( 0-10 Vdc input )
• Intuitive, menu-driven programming (7 day, 2/4 events -
on programmable models only)
Programmable & Non-Programmable Thermostats
With Humidification & Dehumidification Strategy
Application
PIR Ready VT76X7 Series
For Commercial HVAC Applications
2 Heat / 2 Cool
VT7657B5x28(X)
VT7607B5x28(X)
Benefits
⇒ Through the network or smart local occupancy sensing
⇒ Fully integrated advanced occupancy functionality with
a PIR accessory cover
⇒ Simplifies installation and reduce installation costs
⇒ Eliminates components
⇒ Prevents costly damage due to over-humidification
⇒ Saves energy and prevents window condensation in
colder climates
⇒ Increased comfort , accuracy, and energy savings
⇒ Adds functionality
⇒ Saves energy during night mode
⇒ Minimizes parameter tampering
⇒ No need to reprogram day/time after power shortage
⇒ Increase flexibility and functionality
⇒ Can be used for lighting and/or economizer override
⇒ Can be used to limit supply RH levels
⇒ Can be used for all types of establishments
September 1, 2010
