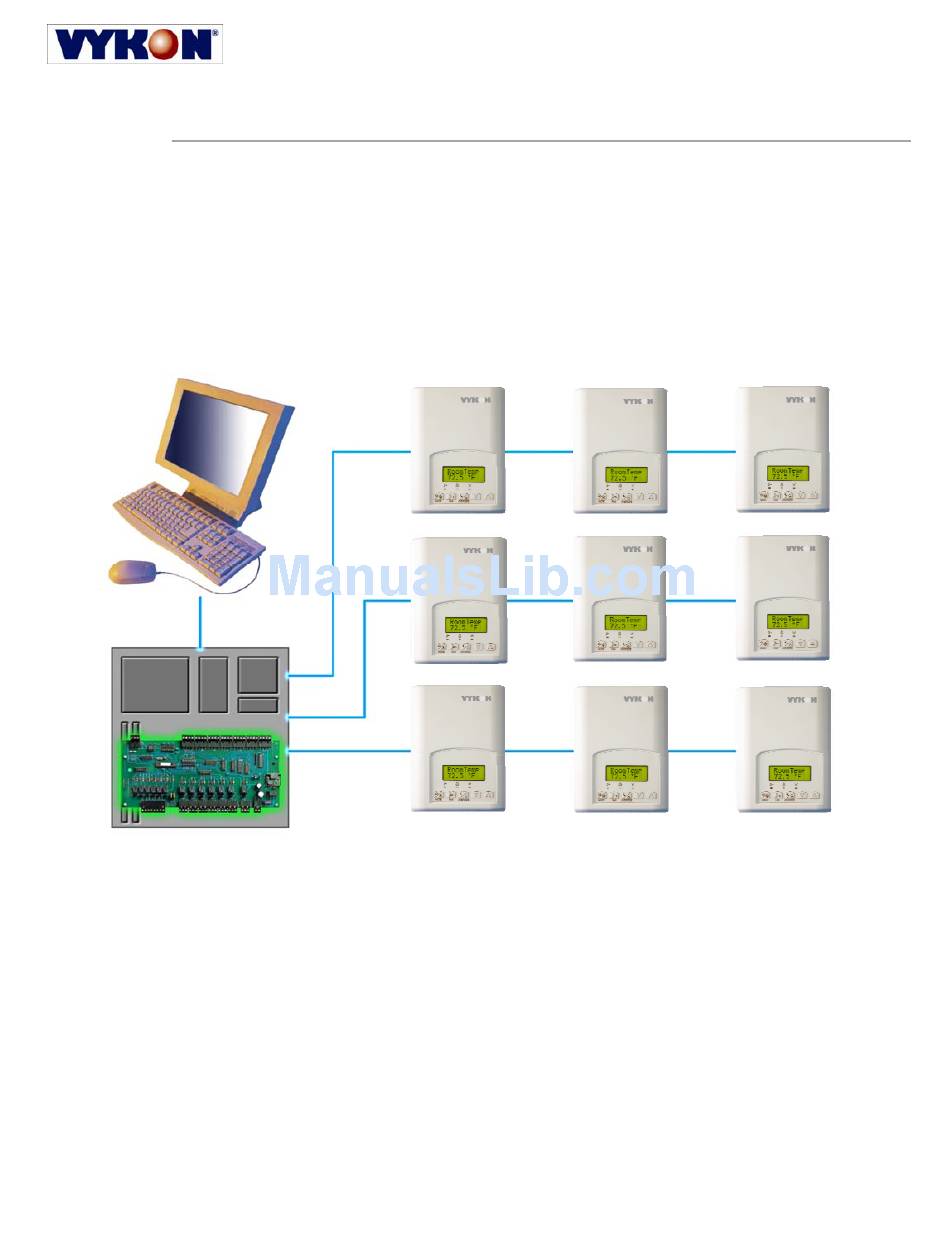

- Page 1 PIR Ready VT7200 & VT7300 Series 24 Vac Fan Coil and Zoning Thermostats For Commercial and Lodging HVAC Applications LonWorks Integration Manual September 1, 2010...
- Page 2 All devices are also available with Echelon, BACnet MS-TP or Zigbee wireless network adapter. The thermostats are also compatible with the new Vykon PIR cover accessories. Thermostats equipped with a PIR cover provide advanced active occupancy logic, which will automatically switch occupancy levels from Occupied to Stand-By and Unoccupied as required by local activity being present or not.
- Page 3 Contents • PID History Revision Table • Thermostat Objects • Applicable SNVTs and SCPTs Table Per Model • Input Network Variables (nvi’s) Description • Output Network Variables (nvo’s) Description • Configuration Properties (nci’s) Description • Integration - Global Commands • Integration - Graphic User Interface (GUI) Objects •...
-
Page 4: Nvispacetemp
Thermostat Objects VT7300 Space Comfort Controller Object Type #8500 Mandatory nvoSpaceTemp nviSpaceTemp Network SNVT_temp_p SNVT_temp_p Variables nvoUnitStatus SNVT_hvac_status Optional nviOutdoorTemp nvoDischAirTemp Network SNVT_temp_p SNVT_temp_p Variables nviSetpoint nvoSpaceRH SNVT_temp_p SNVT_lev_percent nvoEffectOccup nviSpaceRH SNVT_occupancy SNVT_lev_percent nvoTerminalLoad nviFanSpeedCmd SNVT_lev_percent SNVT_switch nviAuxHeatEnable SNVT_switch nviOccManCmd SNVT_occupancy nviApplicMode SNVT_hvac_mode... -
Page 5: Table Of Contents
and SCPTs Table Per Model SNVTs 1: SNVTs: Standard Network Variables Types 2: SCPTs: Standard Configuration Parameters Types Snivet Type Point Name Enumeration and Signature Type N/A: Not applicable on this model nviSpaceTemp SNVT_temp_p nviOutdoorTemp SNVT_temp_p nviSetpoint SNVT_temp_p nviSpaceRH SNVT_lev_percent N/A N/A N/A N/A X N/A N/A X N/A X N/A X nviFanSpeedCmd SNVT_switch... - Page 6 Snivet Type Point Name Enumeration and Signature Type t nciCfg2FcuZn UNVT_cfg_2_fcu_zn Associate with UNVT_cfg_2_fcu_zn format file bi1_config Enumeration Set Used: input_cfg_model_a_t bi2_config Enumeration Set Used: input_cfg_model_b_t ui3_config Enumeration Set Used: input_cfg_model_c_t room_humidity_display Enumeration Set Used: N/A N/A N/A N/A x N/A N/A x N/A x N/A x off_on_state_t dehumidification_setpoint SNVT_lev_percent...
- Page 7 Snivet Type Point Name Enumeration and Signature Type t nciCfg1FcuZn UNVT_cfg_1_fcu_zn Associate with UNVT_cfg1_fcu_zn format file password Unsigned-Long control_type Enumeration Set Used: x N/A N/A x x N/A x x N/A N/A N/A N/A clrl_type_t floating_actuator_time Unsigned-Short x N/A x x N/A N/A N/A N/A cycles_per_hour Unsigned-Short...
-
Page 8: Nvispacerh
Input Network Variables (nvi’s) Description Parameter Variable Name Function Room network input This input network variable provides a network remote temperature Temperature SNVT_temp_p value to the thermostat. When linked of written to, the internal nviSpaceTemp temperature reading (internal sensor) is no longer used. Valid Range: 40 to 122°F (-40 to 50°C) Default Null (release) Value: 621.81°F (327.67°C or 0x7FFF) This network variable is subject to the Receive HeartBeat Time,... -
Page 9: Nvifanspeedcmd
Parameter Variable Name Function Fan Mode network input This input network variable is used to connect an external fan SNVT_switch speed switch to the node or to allow any supervisory device to nviFanSpeedCmd override the fan speed controlled by the node’s control algorithm. This input is used in conjunction with FanMenu bit in nciGenOpts. -
Page 10: Nvioccmancmd
Parameter Variable Name Function Occupancy network input This input network variable is used to command the Space Command SNVT_occupancy Comfort Controller into different occupancy modes. It is typically nviOccManCmd set by a supervisory node to remotely control the occupancy modes to override the local occupancy routines of the thermostat. Default Null Value: OC_NUL = 0xFF Valid Range: 0 = OC_OCCUPIED *... -
Page 11: Nviapplicmode
Parameter Variable Name Function Sequence of network input This network variable input is used to coordinate the Space operation SNVT_hvac_mode Comfort Controller with any node that may need to control the nviHeatCool heat/cool changeover of the unit. This input is overridden by nviApplicMode, unless nviApplicMode is HVAC_AUTO. - Page 12 Output Network Variables (nvo’s) Description All output network variables will be updated no faster than the Minimum Send Time (nciMinOutTm) configuration value. An output network variable will be transmitted immediately when its value has changed significantly (manufacturer’s defined). Additionally, this variable will also be transmitted as a heartbeat output on a regular basis as dictated by the Maximum Send Time (nciSndHrtBt) configuration value.
- Page 13 Parameter Variable Name Function Unit Status SNVT_hvac_status Sub Name Valid Value network nvoUnitStatus HVAC_FAN_ONLY – Not Used output HVAC_MAX_HEAT – Not Used heat_output 0-100%, 0x7FFF (Invalid) _primary heat_output Not Used _secondary cool_output: 0-100%, 0x7FFF (Invalid) econ_output Not Used fan_output 0-100%, 0x7FFF (Invalid) In_alarm 0 (No alarms) 1 (Alarm On)
- Page 14 Configuration Properties (nci’s) Description Parameter Variable Name Function Temperature network input config This configuration property defines the space temperature Setpoints setpoints for various heat, cool and occupancy modes. SNVT_temp_setpt Valid Range and Default values: nciSetPts Sub Name Valid Range Default value occupied_cool 54 to 100°F 75°F (24.0°C)
- Page 15 Parameter Variable Name Function Thermostat network input config This configuration property defines the thermostat’s common Common configuration parameters and their settings. UNVT_cfg_1_fcu_zn Configuration Valid Range and Default values: nciCfg1FcuZn Parameters Sub Name Valid Range Default value password 0 to 1000 control type 0 = On/Off Control 0 = On/Off...
-
Page 16: Nviauxout
Parameter Variable Name Function Thermostat network input config This configuration property defines the thermostat’s common Common configuration parameters and their settings. UNVT_cfg_1_fcu_zn Configuration Valid Range and Default values: nciCfg1FcuZn Parameters Sub Name Valid Range Default value proportional band 3 to 10 F aux contact config 0 = Aux Contact used for reheat... - Page 17 Parameter Variable Name Function Thermostat’s network input config This configuration property defines model number and software model number UNVT_model_info_2 version of the thermostat nciSccModel Valid Range and Default values: Name Valid Range Default value Thermostat 60 = VT7200C Depend on model Model 61 = VT7200F being used...
- Page 18 Note 1: How to use nviHeatCool, nviAuxHeatEnable and SeqOpera (Sequence of Operation) variables: Current NviAuxHeat NviAuxHeat Current SeqOpera If nviHeatCool New SeqOpera nviHeatCool Enable = Enable = changed to: Enabled Disabled 2 Pipe Application 3 = HVAC_COOL 0 = Cooling Only 1= HVAC_HEAT 1 = Heating Only 3 = HVAC_COOL...
- Page 19 Integration – Global Commands The following figure shows, which objects from the thermostat, can be monitored and commanded from the BAS front-end. Figure 1: Global commands from a BAS front-end to a VT7300 series tstat...
-
Page 20: Nvodischairtemp
VT7200X Integration – Graphic User Interface (GUI) objects The following objects should be typically used in a GUI: nvoSpaceTemp; occupied_heat (nciSetpts); unoccupied_heat (nciSetpts); occupied_cool (nciSetpts); unoccupied_cool (nciSetpts); nvoOutdoorTemp nvoDischAirTemp nvoEffectOccup; heat_output_primary (nvoUnitStatus) cool_output (nvoUnitStatus) nvoTerminalLoad ServiceAlarm (nvoSccStatus) FilterAlarm (nvoSccStatus) WindowOpened (nvoSccStatus) Graphical User Interface (GUI) example of a zoning thermostat... -
Page 21: Nvospacerh
VT73xxX Integration – Graphic User Interface (GUI) objects The following objects should be typically used in a GUI: nvoSpaceTemp occupied_heat (nciSetpts); unoccupied_heat (nciSetpts); occupied_cool (nciSetpts); unoccupied_cool (nciSetpts); nvoSpaceRH RHsetpoint (nciRHmodel); nvoOutdoorTemp nvoDischAirTemp nviOccManCmd nvoEffectOccup heat_output_primary (nvoUnitStatus) cool_output (nvoUnitStatus) ServiceAlarm (nvoSccStatus) FilterAlarm (nvoSccStatus) WindowOpened (nvoSccStatus) Graphical User Interface (GUI) example of a Fan-Coil system... -
Page 22: Ncisetpoints
78000 bits per second Network segment length varies depending on wire type. Table 1: Summary of Specifications for a Vykon’ LON Network Network Configuration The Echelon network is designed to support free topology wiring and will accommodate bus, star, loop or any of these topologies. - Page 23 Maximum Number Of Devices Up to 64 transceivers are allowed per network segment. If your network requires more than 64 transceivers a repeater is then required to extend your network...
- Page 24 Maximum Cable Length The maximum length of a chain is related to its transmission speed. The longer the chain, the slower the speed. Using proper cable, Echelon supports a baud rate of 78 kilobits per second for distances up to 1600- ft (500 m) in free topology and 8800 ft (2700 m) in bus topology with double terminations.
- Page 25 • Please note that all release notes for the XIF, APB & NXE software files will be included under the following folder name on your hard drive: C:\LonWorks\Import\Vykon. The name of the file is: VT7xxxReadme.txt Plug-Ins File: LNS Plug-Ins simplify start-up, maintenance, configuration and reduce the installation effort.
- Page 26 Device Identification An Echelon device has a unique mechanism to identify itself, the Neuron ID, which is obtained during commissioning. There are two ways of getting the Neuron ID: with a Service Pin or manually. Service PIN The service pin is used to identify the device at commissioning. By pressing simultaneously the “Up” button and the “Down”...
