Fer HAWK II Installation Instructions Manual

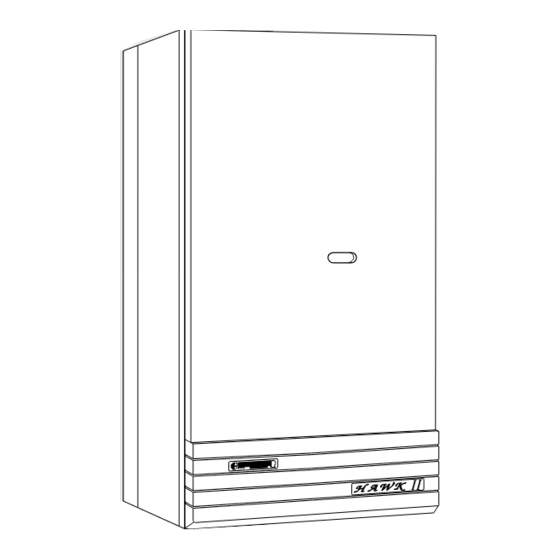

Wall mounted, fanned, room sealed, combination boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
01/01
INDUSTRIE

INSTALLATION INSTRUCTIONS

WALL MOUNTED, FANNED,
ROOM SEALED, COMBINATION BOILER
W.R.C. No. 9207076
SERVICE HELPLINE
Important
:
FOR SERVICE OR TECHNICAL ASSISTANCE
Please read this book
PHONE: 08707 282 885
before installing this appliance
PLEASE QUOTE BOILER SERIAL NUMBER
Leave these instructions with the user

Advertisement

Table of Contents
loading

Related Manuals for Fer HAWK II

Summary of Contents for Fer HAWK II

  • Page 1: Installation Instructions

    01/01 INDUSTRIE INSTALLATION INSTRUCTIONS WALL MOUNTED, FANNED, ROOM SEALED, COMBINATION BOILER W.R.C. No. 9207076 SERVICE HELPLINE Important FOR SERVICE OR TECHNICAL ASSISTANCE Please read this book PHONE: 08707 282 885 before installing this appliance PLEASE QUOTE BOILER SERIAL NUMBER Leave these instructions with the user...

  • Page 2: Table Of Contents

    INDUSTRIE CONTENTS PAGE INDEX Introduction Technical Data Appliance Dimensions Boiler Flow Diagram Key of Boiler Flow Diagram Installation Details Location of Boiler Air Supply Flue System Gas Supply Water System Temporarily filling loop Central Heating Pump Sizing of expansion vessel Installation of Boiler 1.

  • Page 3: Introduction

    It is in your own interest and that of safety, to ensure that these regulations are complied with. Boiler Description The FER Hawk II is a room sealed combination boiler using a fan assisted balanced flue. The boiler, providing both central heating and instantaneous hot water at mains pressure, has been designed for use with a sealed central heating system.

  • Page 4: Technical Data

    INDUSTRIE Technical Data Nominal Heat Input D.H.W. & C.H. (gross) 28.6 kW 28.0 kW Minimum Heat Input D.H.W. & C.H. (gross) 12.8 kW 12.5 kW Nominal Heat Input D.H.W. & C.H. (net) 25.8 kW 25.8 kW Minimum Heat Input D.H.W. & C.H. (net) 11.5 kW 11.5 kW Nominal Heat Output D.H.W.

  • Page 5: Appliance Dimensions

    INDUSTRIE Appliance Dimensions FRONT VIEW LEFT SIDE VIEW REAR VIEW 97.5 77.5 1. Electricity cable entry 2. Gas supply 3. Domestic Hot Water outlet Fig. 1 4. Domestic Cold Water inlet TOP VIEW 5. Central Heating Pressure relief valve 6. Central Heating Flow outlet 7.

  • Page 6: Boiler Flow Diagram

    INDUSTRIE Boiler Flow Diagram Fig. 2...
  • Page 7 INDUSTRIE 39. Cold water flow limiter Fixing point Room sealed compartment 40. Domestic hot water expansion vessel (optional) Control panel 42. D.H.W. temperature sensor 43. Air pressure switch Gas inlet 44. Combination gas valve Domestic hot water outlet Cold water inlet 45.

  • Page 8: Installation Details

    Local Gas Region of British Gas Plc. Location of Boiler The installation of the FER must be on a suitable non-combustible load bearing wall which will provide an adequate fixing for the boiler mounting bracket assembly. The location should be in an area where the water pipes will not be subjected to frost conditions.
  • Page 9 INDUSTRIE Terminal Position Fig. 3 Minimum Clearance mm Fig. 5 NOTES * Access to the front of the boiler must be available for maintenance (min. 600 mm).

  • Page 10: Flue System

    INDUSTRIE Flue system The boiler allows the flue outlet to be taken from the rear of the boiler or from either side. A standard flue length of 0.75 metres is provided. It is absolutely essential, to ensure that products of combustion discharging from the terminal cannot re-enter the building, or enter any adjacent building, through ventilators, windows, doors, natural air infiltration, or forced ventilation/air conditioning.
  • Page 11 INDUSTRIE Cold water Additional expansion vessel C.H. (if required) Filling point C.H. Bypass Fig. 6 NOTE: A bypass must be fitted as far as possible from the boiler if thermostatic radiator valves are fitted throughout. TEMPORARY FILLING LOOP A temporary filling loop of the above type conforming to WRC approval should be installed between the cold water mains and the central heating system 1.
  • Page 12 INDUSTRIE Built-in Central Heating Water Circulating Pump The pump head available for circulating the water is given in fig. 8. N.B. - The pump is factory set at position 3. The pump is a Grundfos type 25-50 UPS series. Note - Minimum flow through boiler heat exchanger at any time should not fall below 6 litres per minute. If the total volume of water in the system exceeds 40 litres an additional expansion vessel must be fitted to the central heating return inlet.

  • Page 13: Unpacking

    INDUSTRIE Note - To mount the boiler on the wall, a two person lift will be needed. UNPACKING The appliance is delivered in three cartons. The large carton contains the boiler, and the Installation/Servicing and Users Instructions. The second carton contains the valves, fixing bolts and flue bend. The third carton contains the flue assembly.

  • Page 14: Installation Dimensions

    INDUSTRIE INSTALLATION DIMENSIONS Rear flue outlet Diam. min. 118 mm Fixing stud Upper bracket Side flue outlet boiler Diam. min. 118 mm * Boiler fixing studs level with the bottom of the flue hole Boiler = 480 mm Lower bracket Fig.

  • Page 15: Preparing The Flue Assembly

    INDUSTRIE PREPARING THE FLUE ASSEMBLY Rear Flue Outlet (fig. 12) Important - The aluminium flue pipe must protrude into the outside grill by 60 mm, never cut it to the same length as the plastic air pipe (aluminium flue pipe = plastic air inlet pipe + 70 mm !). Aluminium flue pipe length = Plastic air inlet pipe length plus 70 mm longer.

  • Page 16: Connecting The Boiler

    INDUSTRIE CONNECTING THE BOILER Place the boiler on its back. Remove the boiler base plate, four screws (fig. 16). Remove the plugs fitted to the boiler water connections. Remove the bag of sealing washers from the boiler pipework. Remove the front panel by gripping on both sides, sliding up and pulling away from the main boiler.

  • Page 17: Fitting The Flue Assembly

    INDUSTRIE FITTING THE FLUE ASSEMBLY With Sufficient Clearance To Insert Assembly From Inside 6.1.1 Insert the flue assembly into the wall. 6.1.2 Insert the flue bend in the top plate of the boiler 6.1.3 Secure the flue bend. 6.1.4 Fully insert the flue assembly into the boiler flue bend. Insert the self tapping screw supplied. Fully tighten. 6.1.5 Check the terminal relationship with the wall as shown in fig.

  • Page 18: Commissioning & Testing

    INDUSTRIE COMMISSIONING AND TESTING Filling the Central Heating System Burner pressure Automatic air vent Vent cap test point Heat exchanger vent Pump D.H.W. expansion Pressure gauge vessel (optional) C.H. pressure relief valve Gas inlet pressure test point D.H.W. drain point Low water pressure switch Fig.

  • Page 19: To Light The Boiler

    INDUSTRIE Pilot viewing opening (5) C.H. boiler pressure gauge (4) thermostat (3) Gas valve control knob (1) Igniter button (2) fig. 21 To Light the Boiler (fig. 21) 1. Before lighting check central heating system pressure is at 1 bar. (4). 2.

  • Page 20: To Range Rate The Boiler C.h

    INDUSTRIE Burner Pressure C.H. and D.H.W. To Range Rate the Boiler C.H.(not required on standard installations) The boiler can be range rated for an output from 9.7 kW up to 23.3 kW. When the boiler is supplied it is factory set at the maximum output 23,3 kW. Procedure a.

  • Page 21: Vr 4600 N 4002 Valve

    INDUSTRIE Honeywell VR 4600 N 4002 valve (code 3680252/0) with V7335A4014 Modureg (code 3680254/0) Gas pressure Adjustment With the burner lit: Connect suitable pressure gauge to burner test point "B", and then: Disconnect air pressure compensation tube "H"; Disconnect the wires from coil "C" of the Modureg; Remove protective cover "D";...

  • Page 22: 8.7 Time Clock

    INDUSTRIE 8.7 Time Clock A 24 hour time clock is fitted to the boiler to control the central heating, this will come into operation when the selector switch is turned to the position marked “heating timed and hot water”. A Slide switch: set clock - auto - set programme AUTO AUTO B Display.
  • Page 23 INDUSTRIE Over ride By pressing the over ride button (E) the timer programme is over ridden ie, if programme is in OFF time it will come ON and if in ON time will go OFF. The timer will revert back to it set programme on reaching the next ON or OFF time. When the programme is on over ride the sign will be shown in the display window (B).

  • Page 24: 24 8.7 D.h.w. Burner Pressure

    INDUSTRIE D.H.W. Burner Pressure The domestic hot water burner pressure is not range rateable and not adjustable but the maximum and minimum burner pressure should be checked as follows: a. Check electricity supply is still off. b. Open a D.H.W. tap at high flow until the water runs cool and leave running. c.

  • Page 25: 11. Air Pressure Switch

    INDUSTRIE 11.0 AIR PRESSURE SWITCH KROMSCHRODER KROMSCHRODER DL 1E BROWN BLACK BLUE HUBA 605 HUBA 605 BLUE BLACK BROWN HUBA 602 HUBA 602 BLUE BLACK BROWN Brown - Common Black = N.C. Blue = N.O. Fig. 46...

  • Page 26: Spare Parts List

    INDUSTRIE Spare Parts List Item No. G.C. Part No.Makers Part No No. Off DESCRIPTION 386816 800130 C.H. safety valve 803860 Complete fan 372176 815850 Main injector (Natural Gas) 800920 Main injector (L.P.G.) 390210 801170 Thermocouple 801090 Spark electrode 801900 Pilot 800620 Central heating pump 386818...
  • Page 27 INDUSTRIE Domestic Hot Water Performance Fig. 1 - D.H.W. Pressure Drop VS. flow A = Standard with col water Flow Restricter B = Cold Water Flow Restricter Removed Fig. 1 Fig. 2 - D.H.W. temperature VS. flow A = Cold Water 15°C B = Cold Water 5°C Fig.
  • Page 28 INDUSTRIE 16 Fan 230V 11 10 9 8 7 6 5 4 3 2 1 50Hz 23 Thermocouple 24 spark electrode 31 Air pressure control damper 32 Central heating pump 34 C.H. flow temperature sensor 42 D.H.W. temperatuure sensor 43 Air pressure switch 46 Operator gas valve 47 Modulating regulator (Modureg) gas valve...
  • Page 29 INDUSTRIE General Notes *The pilot light should only be ignited after the Fan (16) has run for at least 20 seconds on full speed. *The central heating pump (32) will run to disperse heat if the temperature at the heat exchanger limit thermostat (50) is too high *Fuse on P.C.B.: 2 Amp.
  • Page 32 INDUSTRIE ALL SPECIFICATIONS SUBJECT TO CHANGE PO BOX 3774 SUTTON COLDFIELD WEST MIDLANDS B76 8BH Tel.: 08707 282 885...
