Datalogic Elf Quick Start Manual

PDA - Quick Start Guide
Windows CE Models
THE PACKAGE
The Elf package includes the following items:
C
A
B
E
A) Hand strap with stylus holder
B) Guitar pick stylus
C) Elf PDA
D) Rechargeable battery pack (@3000 mAh)
E) Quick Start Guide/ Safety and Regulatory Addendum/
Wavelink Avalanche Insert/ End User License Agreement
(EULA) Sheet
822001081

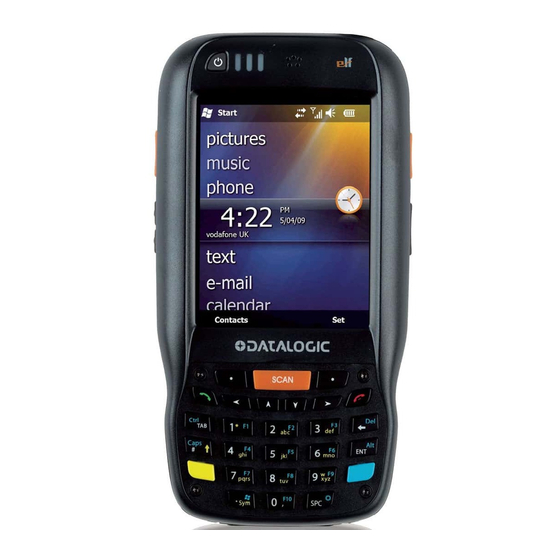

THE TERMINAL
C
B
I
A J
K
D
D E
A) Color display* F)
B) ON/OFF power key G) Trigger button (for use
C) LEDs
D) Front scan key
E) Keyboard
H) Loudspeaker
I)
J)
K) Reset key (under battery)
L)
M
N
M) Side scan key (right) O) Side scan key (left)
N) Push-to-talk key P) Up/down volume keys
Q
Q) Data capture window R) Handylink connector
S) Micro USB port for supplying
* Remove protective film cover before use
KEYPADS
Alphanumeric Keyboard
F
5
G
H
L
Laser safety label
3
with the optional pistol
trigger Quick-attach
Handle - 94ACC1378)
Numeric Keyboard
Headset connector
Product label
5
MicroSD card slot (under
battery)
O
P
3
1. Navigation Keys
2. Scan Key
3. Yellow Modifier
4. Blue Modifier
5. Soft Key
R
S
(host/slave)
power and data transfer
(host/slave)
1
5
2
4
1
5
2
4
GETTING STARTED
Insert the Battery
First insert the bottom side, then the upper (contacts) side of the
battery pack into the slot and press it back until the battery latch
clicks twice:
Charge the Battery
With Power Supply

With Single Slot Dock
Do not use the Elf until standard batteries are
charged for minimum 4 hours and extended
batteries are charged for minimum 6 hours.
CAUTION

The power supply for the Single Slot Dock is included in the Single Slot
Dock box (P/N 94A151124)
