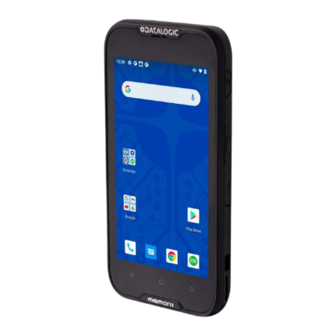

Rugged mobile computer with 1d/2d imager
Hide thumbs Also See for Memor 11:
Table of Contents

Advertisement

Quick Links

Memor™ 11
USER'S MANUAL
Rugged Mobile Computer with 1D/2D Imager

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Memor 11 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Memor 11

Summary of Contents for Datalogic Memor 11

  • Page 1 Memor™ 11 USER’S MANUAL Rugged Mobile Computer with 1D/2D Imager...
  • Page 2 Electronic versions of this document may be downloaded from the Datalogic website (www.datalogic.com). If you visit our website and would like to make comments or suggestions about this or other Datalogic pub- lications, please let us know via the "Contact" page.
  • Page 3 Suspend Mode ....................... 18 Long Press Power Menu ....................18 Battery Swap ..........................18 Emergency ..........................18 Power Off ...........................18 Restart ............................18 Screenshot ..........................18 Battery Swap ......................... 19 Option 1 ..............................19 Option 2 ..............................20 Applications ........................22 Datalogic Applications ........................22 USER’S MANUAL...
  • Page 4 Device Owner Mode .......................... 27 Android Enterprise QR Code Generator ................... 27 LED Indicators ........................28 SETTINGS ........................ 29 Overview ........................29 Datalogic Settings ......................30 Scanner & Decoder ........................... 30 Notification ..........................31 Good Read ..........................33 Formatting ..........................34 Scanner Options ........................37 Wedge ............................
  • Page 5 USB ADB Driver ......................80 SDK Add-on ........................80 Install ADB Driver ..........................80 Create a New Application based on Datalogic SDK Add-on with Android Studio ......81 Datalogic SDK ........................ 81 Datalogic OEMConfig ...................... 81 Wi-Fi QR Code Generator ....................81 DATA CAPTURE......................
  • Page 6 CONTENTS TEST CODES......................93 MAINTENANCE ......................97 Cleaning ........................97 Ergonomic Recommendations ..................97 SAFETY AND REGULATORY INFORMATION ............... 98 General Safety Rules ......................98 TECHNICAL SUPPORT ....................99 Support Through the Website ..................99 Reseller Technical Support ....................... 99 Reference Documentation ....................99 Warranty Terms and Conditions ..................99 GLOSSARY......................

  • Page 7: Product Overview

    The Memor 11 mobile computer comes with enhanced processing capabilities, an up- to-date Operating System, and superior scanning performance. The all-around efficient Memor 11 mobile computer is built for a versatile mobile workforce to meet the needs of the most common Retail, Warehouse, Manufacturing, and Transportation & Logistic applications.
  • Page 8 Services. Dedicated Wi-Fi only and Wi-Fi + cellular models are available to address spe- cific customer needs. Furthermore, with Datalogic’s premier service coverage of EASEOFCARE and Datalogic Shield, you will be able to extend the lifecycle of the Memor 11 mobile computer with years of protection to enhance your rugged device invest- ment.

  • Page 9: Available Models

    CONTENTS AVAILABLE MODELS The Memor 11 is available in different models depending on the features it is equipped with. All options are listed below: Americas Models • 944900002 Memor 11 Full Touch MC, NA, Wi-Fi Only, 4GB/32GB, FFHE HP 2D...

  • Page 10: General View

    CONTENTS GENERAL VIEW Top View Data Capture Window Front View Charging LED Good Read Indicator Receiver Touch Panel Display Back Recent Home Main MIC MEMOR™ 11...

  • Page 11: Side View

    CONTENTS Side View Power Button Volume Control Buttons Right Trigger Left Trigger USB Type-C Port Back View Battery Swap LED Speaker Battery Latch LED Flash MicroSIM Card Socket Second MIC MicroSD Card Socket Battery Latch Working Area Battery Pack USER’S MANUAL...
  • Page 12 CONTENTS CAUTION: Do not apply any sticker to the Memor 11. MEMOR™ 11...
  • Page 13 • 94ACC0196 Power Adapter Kit, Memor 11/ 10, Power Supply, 4 regional plugs USB-C • 94ACC0197 Power Supply, for Docks & Chargers, Memor 11/10 (power cord to be purchased separately) • 94ACC0263 Power Supply, Dual Split, Memor 11/10 •...

  • Page 14: Install The Battery

    BATTERY INSTALL THE BATTERY To install the battery pack, follow the steps below: 1. Rotate the latches to the open position: 2. Insert the battery pack into the slot, bottom first, and press it into place: 3. Rotate the latches to the lock position to lock the cover: MEMOR™...

  • Page 15: Charge The Battery

    The charger is modular, with one adapter and five switchover plugs. NOTE: Connection through the cable complies to USB Type-C standard. You can also use the USB cable to charge the Memor 11 from any self-powered USB hub or USB port on a computer.

  • Page 16: Charge With The Dock

    Charge with the dock Insert the device into the dock with the screen facing front and the head facing up. The dock is able to provide wireless power to the Memor 11 when the device is cor- rectly inserted. CAUTION: Use only the Datalogic power supply 94ACC0197 to power any of the docks.

  • Page 17: Battery Information

    Close to the limits of the working temperature, some battery performance degradation may occur. The Memor 11 should be charged at an ambient temperature between 20 - 35° C (68 to 95°F) to achieve the maximum charging rate. Never charge the device battery in a closed space where excessive heat can build up.

  • Page 18: Battery Safety Guidelines

    Using the battery pack in this manner may also result in a loss of performance and a shortened life expectancy. To power the cradle, use only a Datalogic approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, an explosion, or fire.
  • Page 19 CONTENTS WARNING: If your device stops working for any reason, do not use its bat- tery on other electronic devices without a prior check and approval by an Authorised Repair Centre. Do not remove or damage the battery pack’s label. Do not use the battery pack if it is damaged in any part.

  • Page 20: Sd Card/ Sim Card

    Memor 11 supports microSD memory cards. To access the microSD card slot and insert the card follow the steps below: 1. Turn off the Memor 11 or put it in Swap Battery mode (see " Battery Swap" on page on page).

  • Page 21: Install The Microsim Card

    Memor 11 supports microSIM cards. To access the microSIM card slot and insert the card follow the steps below: 1. Turn off the Memor 11. 2. Rotate the latches to the open position and remove the battery pack: 3. Insert the microSIM card with the written part upward: Replace the battery pack (see "...

  • Page 22: Getting Started

    GETTING STARTED TURN ON THE DEVICE To turn on the Memor 11, press and hold the power button for at least 4 seconds. HOME SCREEN Notification/ Status Bar Datalogic Apps Google Apps Favorites Tray Home Screen Items Notification/Status Displays the time, status icons (right side), and notification icons (left side).

  • Page 23: Status Bar Icons

    CONTENTS Status Bar Icons Wi-Fi is on. Battery is low. External power source is con- Wi-Fi not connected. nected. Wi-Fi connected no internet. Battery is full. Connected to a Wi-Fi network. Battery is partially drained. Bluetooth is on. Airplane mode. Vibrate mode.

  • Page 24: Suspend Mode

    CONTENTS SUSPEND MODE Suspend mode automatically turns the screen off and locks the terminal to save battery power when the terminal is inactive for a programmed period of time. Press and release the power button to toggle the terminal in or out of suspend mode: To unlock the home screen, tap anywhere on the screen and drag your finger upward.
  • Page 25 CONTENTS BATTERY SWAP Battery Swap mode is a low power suspend mode that allows you to replace the battery pack without closing files and applications. It maintains the main memory contents and keeps applications running but does not allow you to operate any of the device's func- tions.
  • Page 26 CONTENTS Option 2 Power Long Press Menu Battery 1. Press and hold the button to display the and tap Swap: 2. Tap Confirm: 3. The battery swap LED lights up solid red: 4. Wait for the LED to turn solid green and then rotate the battery latches to the open position: 5.
  • Page 27 CONTENTS ì CAUTION: Be sure to insert a charged battery pack. If the battery is fully discharged, the device may freeze. If this happens, insert a charged bat- tery. CAUTION: The battery swap procedure is not available when the device is connected via USB cable.
  • Page 28 CONTENTS APPLICATIONS All Apps screen displays icons for all installed applications. The table below lists the default applications installed on the Memor 11. Datalogic Applications Icon Description Battery Manager - Provides information on the battery type, charge, status and temperature, allows to set the charging profile and to log battery data (see "Bat-...

  • Page 29: Android Applications

    CONTENTS Android Applications Icon Description Calculator - Provides the basic and scientific arithmetic functions. Calendar - Lets you manage events and appointments. Camera - Use it to take photos or record videos. Chrome - Google’s own web browser. Use it to access the Internet or intranet. Clock - Lets you schedule alarms for appointments or as a wake-up.

  • Page 30: Touch Gestures

    Play Store - Google's own digital distribution service. It serves as the official app store for the Android operating system and as a digital media store. Settings - Use it to configure the Memor 11 (see "Settings" on page 29).

  • Page 31: Reset The Device

    CONTENTS RESET THE DEVICE Configuration Reset Configuration reset sets the configuration of the device (all its settings) to a known sta- tus: the factory status or an enterprise-user-defined status. Reset Wi-Fi, Mobile & Bluetooth Resets all network settings. 1. Tap Settings >...

  • Page 32: Factory Reset

    CONTENTS Factory Reset Brings the device to the default configuration, clearing all the user-customized settings. Settings System Reset options Erase all data (factory reset). 1. Tap > > > 2. Tap Erase all data. Enterprise Reset Enterprise Reset brings the device to an enterprise-user-defined configuration, clearing all data and settings except the ones persisted by the enterprise system applications in enterprise flash partition and in the...

  • Page 33: Setup Wizard

    For Datalogic devices, the enrollment process has been enhanced to include additional properties in the QR code and the option to encrypt the QR code. These Datalogic spe- cific options can be configured using the Android Enterprise QR Code Generator.

  • Page 34: Led Indicators

    CONTENTS LED INDICATORS The LEDs illuminate to indicate various functions or errors on the reader. The following tables list these indications. The good read LED indicator is programmable, and may or may not be enabled (" for more details). The Charging LED Scanner &...
  • Page 35 SETTINGS OVERVIEW Settings app allows you to check or set system parameters to customize your device. To open the Settings screen, tap the Settings icons on the All Apps screen. USER’S MANUAL...
  • Page 36 CONTENTS DATALOGIC SETTINGS Datalogic Settings app allows you to configure scanner and decoder, control power and source behaviour, configure keyboard, trigger and mappings, WiFi roaming, USB data and features, touch mode settings, NTP server address status and navigation bar, update device firmware and display device information.
  • Page 37 Enable Display Notification Enables display notifications (toasts). If cleared, the scanner is disabled until you launch a scanner listener application developed using the Datalogic SDK or enable a keyboard/ intent wedge. Good Read Audio Mode Sets the audio tone to: •...
  • Page 38 CONTENTS Audio file is selected, the option Good read audio file displays. Tap it to select the file you want to use as good read ringtone. NOTE: The Notification settings do not apply to an audio file. Good Read Audio Channel Allows to select he audio channel to be used for scanner notifications.
  • Page 39 CONTENTS Good Read Use it to enable good read notifications (LED, Green Spot, Vibrator): Enable good read to enable/disable notifications (main enabler), then select the notification you want to use. USER’S MANUAL...
  • Page 40 CONTENTS Formatting Standard Formatting Allows to format the barcode text by enabling and configuring the use of prefix, suffix, group separator and code identifier: Label Prefix Label prefix to enter the characters you will be using as prefix. Tap Add special select a special character to be added in the current cursor position: Label Suffix Label suffix...
  • Page 41 AIM ID is inserted at the beginning of the decoded barcode. DLM identifier is a Datalogic specific character identifier. User defined identifier is a user specific character identifier you can set in the related symbology settings menu.
  • Page 42 Use Human Readable GS1 Format Enables conversion of GS1 barcodes to the readable GS1 string format when the bar- code is compliant with GS1 format. Visual Formatting Enable to set up barcode visual formatting. For more details, refer to https://datalogic.github.io/scan2deploy/visual-formatter- basic-concepts. MEMOR™ 11...

  • Page 43: Scanner Options

    CONTENTS Scanner Options Scanner Options to customize the Memor 11 scanning behavior. USER’S MANUAL...
  • Page 44 CONTENTS Enhance DoF If enabled, allows to enhance the maximum reading distance. Enable Picklist If enabled, it allows you to pick and decode a barcode from multiple barcodes printed close together, when the scan illumination intersects more than one barcode. Only the targeted barcode will be returned.
  • Page 45 CONTENTS Hold Multiple When the trigger is pulled, the device scans barcodes until the trigger is released or the decode timeout has elapsed. Pulse Multiple When the trigger is pulled, continuous scanning is activated until the decode timeout has elapsed or the trigger has been released and pulled again. Always On No trigger pull is required to read a bar code.
  • Page 46 CONTENTS Image Decode Timeout You can share any image (picture, jpg/png, etc.) with the Datalogic Service to try to Image decode timeout decode it. Drag the slider to set the decode timeout applied with image decoding. Enable Multi Scan If selected, the scanner captures multiple labels sequentially.
  • Page 47 CONTENTS Wedge Use it to enable or disable the keyboard wedge and the intent wedge: Enable Keyboard Wedge Enables/disables the keyboard wedge mode. Keyboard Wedge Only on Focus If selected, the scanner is enabled whenever a text area is in focus and can receive text. It provides a safer way to input keystrokes into the foreground application, allowing to send captured data in the form of key events only to the current text area with active keyboard input.
  • Page 48 CONTENTS Keyboard Wedge Input Mode Allows to select the scanned data input mode. Text Injection The scanned barcode is injected into the text area. Key Pressure The scanned barcode is translated into keyboard strokes. Commit Text The printable characters are injected into the text area, emulating the pressure of key- board keys for not printable keys.

  • Page 49: Symbology Settings

    CONTENTS Symbology Settings Each barcode symbology can be customized with additional settings that may affect that specific barcode decoding. Tap Symbology settings to configure symbology decoding options: Refer to the sample symbology control panels for examples of the types of fields and options you can modify.
  • Page 50 CONTENTS Advanced Barcode Options Linear Quiet Zones Linear quiet zones to reduce the blank margin on either side of a linear barcode. Inverted Decoding Defines the decoding mode for regular/reverse barcodes for both 1D and 2D barcodes: MEMOR™ 11...
  • Page 51 CONTENTS Scan Engine Information Provides information on the scan engine. Configuration Use this section to change symbologies settings globally and to persist them. USER’S MANUAL...

  • Page 52: Power & Sources

    You have two options to set the suspend timeout (see " Suspend Mode" on page 18 more information on Suspend Mode): 1. Tap Settings > Datalogic Settings > Power & sources: • External power sets the number of seconds without user input activity before the system is suspended while running on external power.
  • Page 53 Drag the Threshold slider to set the threshold for automatic start. Wake-Up Policies The default wake-up sources are the front trigger and the pistol trigger. Tap Settings > Datalogic Settings > Power & sources > Wake-up sources to enable/disable wake-up sources.

  • Page 54: Keyboard & Triggers

    CONTENTS Keyboard & Triggers Lock Keyboard Input If enabled, it locks user input from the keyboard. Key Remapping Key remapping to remap an input key, then press the key you want to remap. The following window displays on screen: • Scancode represents the physical location of a keyboard key.
  • Page 55 CONTENTS ADD A NEW MAPPING. A window displays showing the new keymap. Unicode Select Unicode to remap a key to display Unicode characters (such as symbol "$"): Press the Back Button on the navigation bar and then tap ADD A NEW MAPPING.
  • Page 56 CONTENTS Select the desired application and then tap ADD A NEW MAPPING. A window displays showing the new keymap: View All Remapped Keys Tap View all remapped keys to display all remapped keys. Swipe left to edit an entry. Swipe right to remove an entry and reset the key mapping back to default. Triggers Triggers to enable/disable the trigger keys.
  • Page 57 CONTENTS Wi-Fi Wi-Fi Scan Use the Wi-Fi scan Settings to set the interval between scans when the device is con- nected and when it is disconnetted. Wi-Fi Module Use the Wi-Fi module settings to select the 802.11 mode and the band, and to enable/ disable power save and the verbose Wi-Fi module logging.
  • Page 58 CONTENTS Wi-Fi Roaming Roaming profile Custom and select to configure the roaming profile of your device. RSSI Threshold Sets the signal strength a radio needs to see before searching for another site. RSSI Difference It controls the signal difference between the current access point the device is con- nected to and the target access point the device wants to roam to.

  • Page 59: Touch Mode

    CONTENTS Use the settings to set the USB function (None, MTP, PTP, RNDIS, MIDI). Touch Mode Screen sensitivity to adjusts touch-screen sensitivity for input with a bare, a gloved finger or a stylus. to set the primary and secondary NTP server addresses and to configurate the NTP timeout.

  • Page 60: System Update

    To transfer the OTA package from your PC to the Memor 11, follow the steps below: 1. Connect the device and the PC via USB cable (see "...
  • Page 61 Tap the notification to display a report showing the installed update components. NOTE: During the update, ensure that: • battery level is more than 20% if the Memor 11 is not connected to a power source; • battery level is more than 15% if the Memor 11 is connected to a power source (USB or dock).

  • Page 62: Device Information

    CONTENTS Device Information The Device info screen displays information about the device including: serial number, scan engine, sdk, system versions. MEMOR™ 11...

  • Page 63: Network & Internet

    If the device finds a network that you connected to previously, it will connect to it auto- matically. 2. Tap Wi-Fi. The Memor 11 scans for available Wi-Fi networks within range and lists them. Secured networks are indicated with a lock icon.

  • Page 64: Add A Wi-Fi Network

    CONTENTS 3. Select the network name you want to connect to from the available network list. 4. If the network is open, tap the profile and then tap Connect, or press and hold and then select Connect. If the network is secured, a dialog box appears requesting information relevant to the network security protocol (e.g., password, key, or certificate).
  • Page 65 CONTENTS To connect WiFi with a QR code, tap the QR code icon and then scan the WiFi QR Code to join the network. USER’S MANUAL...

  • Page 66: Connected Devices

    CONTENTS CONNECTED DEVICES Bluetooth Settings To create a Bluetooth® pairing between your device and another device that has Blue- tooth® capabilities, ensure that the two devices are turned on, discoverable, and within operable range. Enable Bluetooth® To turn on the Bluetooth®, tap Settings >...

  • Page 67: Configure, Rename Or Unpair Bluetooth® Devices

    CONTENTS 3. Make sure both devices show the same passkey and tap Pair. 4. The selected Bluetooth® device is added to the Previously connected devices list and a paired connection is established. Configure, Rename or Unpair Bluetooth® Devices Settings > Connected devices.
  • Page 68 CONTENTS To enable enable short-range wireless data exchange, tap Settings > Connected Devices Connection preferences NFC On > > and switch right to the position. MEMOR™ 11...

  • Page 69: Brightness Level

    CONTENTS DISPLAY Use the Display settings to set the screen brightness and theme, enable night light, change the background image and the screensaver, enable screen rotation, set display and font size. Brightness Level Use the slider to adjust the screen brightness level. Dark Theme Tap to enable black background.

  • Page 70: Auto-Rotate Screen

    CONTENTS Wallpaper Tap to select a wallpaper. Screen Timeout Tap to set the suspend timeout (see " Suspend Timeout" on page 46 Auto-Rotate Screen Enables/disables screen auto-rotation. Font Size Tap to set the size of the font. Display Size Tap to set the size of the items on your screen. Screen Saver or Digital) and time (When to...

  • Page 71: Recovery Mode

    To enter in Recovery Mode: 1. Turn off the Memor 11 (see " Power Off" on page 18 2. Press the power button and the volume down button simultaneously.

  • Page 72: Datalogic Applications

    DATALOGIC APPLICATIONS BATTERY MANAGER This application provides information about the battery features and status, allows to configure the battery charging profile and to log battery data. All Apps > Battery Manager icon, then tap the menu icon on the top left corner of the screen, or swipe right to display the menu.

  • Page 73: Battery Info

    CONTENTS Battery Info Battery Info section provides information about the battery’s health, capacity, man- ufacturer, level and charging status. Battery Info - Realtime This window provides real-time information about the battery. Charging Mode Discharging Mode The top section shows the battery level and the time left to full discharge (when in dis- charge mode) and to full charge (when in charge mode).
  • Page 74 CONTENTS Battery Info - Lifetime This window displays information and statistics about battery life, health and usage over its whole life cycle. Health Shows the current battery health and warns potential errors. State of Health Shows the current battery's health level. Total Discharge Shows how much the battery has been used over its whole life cycle.
  • Page 75 CONTENTS Battery Info - Manufacturer This window displays the model name, the type, the nominal capacity, the serial num- ber, the product number and the manufacture date of the battery. USER’S MANUAL...

  • Page 76: Charging Profile

    CONTENTS Charging Profile Charging Profile - Setup This window allows to customize the charging process according to the user's needs and priorities. To configure a charging profile, select 1 or 2 of the following preferences: • Battery Lifetime. • Maximum Capacity. •...

  • Page 77: Data Logging

    CONTENTS Data Logging The data logging feature allows to collect, store, display and analyze minute-by-minute battery data. Setup Use the Setup window to select the data you want to log. The data logging is disabled by default. To enable it, tap Enable Data Logging.
  • Page 78 CONTENTS Logs Logs window displays data details by date. Manage Manage window allows to remove or export logs. Select one or more logs and tap Remove to remove them. Tap to confirm: Export Select one or more logs and tap to export data and store them for extended peri- ods.
  • Page 79 Settings section allows to set the value ranges that will be used to create the graphs. If you charge the Memor 11 with a wireless charging pad, you’re not allowed to custom- ize the charging profile. If the Show Wireless Pad Notification check box is selected, the system displays a warn- ing message saying that the charging profile won’t be applied.
  • Page 80 CONTENTS SCAN2DEPLOY Scan2Deploy is a configuration tool that uses special barcode labels. For more details, visit the website: https://datalogic.github.io/scan2deploy. MEMOR™ 11...
  • Page 81 CONTENTS SOFTSPOT™ Datalogic’s SoftSpot technology is a user-definable "floating soft trigger" meant to pro- vide easy access to the barcode scanner application and other frequently used function- alities on mobile scanning devices. Tap the SoftSpot icon on the favorites tray or on the All Apps screen to launch SoftSpot: Tap the SoftSpot to scan barcodes.
  • Page 82 CONTENTS Auto-transparency If enabled, the SoftSpot turns transparent automatically when it is not used. Transparency Range Sets the SoftSpot transparency level when it is used or when the auto-transparency fea- ture is not enabled. Speed of transparency Sets the lapse of time it takes for the SoftSpot to turn transparent. Actions You can use SoftSpot to quickly switch between the applications you actively use.
  • Page 83 CONTENTS To remove an application from the actions list, tap and swipe right. Images Normal Image and/or Decoded Image to change the SoftSpot images. You have six options: three default images and three custom images. Display Decoded Image For Sets the duration of the decoded image. USER’S MANUAL...
  • Page 84 CONTENTS Enable Continuous Scan on Double Tap To enable the Continuous Scan mode and scan barcodes consecutively, switch right and then double-tap the SoftSpot. Tap one more time to stop laser emission. Continuous Delay Allows to set the continuous delay time. Enable Release Scan Scanning takes place after the scan button is released.
  • Page 85 CONTENTS DATALOGIC LAUNCHER Datalogic Launcher is an Android application used to lock down the device to launch only allowed applications. It can also limit access to several system device features, such as the Overview button (for switching apps) and the Global Actions dialog (for restarting the device).

  • Page 86: Install Adb Driver

    TOOLS Refer to the Datalogic Mobile Computers Software Tools main page to find more detailed and up-to-date information: https://datalogic.github.io/. USB ADB DRIVER USB connection allows to read and write files on both the internal storage memory and the external storage memory, but doesn’t allow to install applications.

  • Page 87: Create A New Application Based On Datalogic Sdk Add-On With Android Studio

    CONTENTS Create a New Application based on Datalogic SDK Add-on with Android Studio For information and instructions to configure Datalogic SDK Add-on in Android Studio, refer to the website: https://datalogic.github.io/android/overview. DATALOGIC SDK For information on the Datalogic SDK APIs, visit the web site: https://data- logic.github.io/android/overview.

  • Page 88: Data Capture

    DATA CAPTURE The Memor 11 has an integrated imager that collects data by scanning bar codes. The imager uses digital camera technology to take a digital picture of a bar code, the image is stored in memory and software decoding algorithms are executed to extract the data from the image.

  • Page 89: Usb Direct Connection

    CONNECTIONS USB CONNECTION USB Direct Connection You can use the USB Type-C cable included in the box to directly connect the Memor 11 to a host computer and transfer data through the USB interface. Host Computer Memor 11 USB Type-C cable 1.
  • Page 90 CONTENTS WI-FI CONNECTION The Memor 11 has a 802.11a/b/g/n/ac WLAN (Wireless Local Area Network) radio and can communicate with other 802.11a/b/g/n,/ac Wi-Fi compliant products including access points, workstations via PC card adapters and other wireless portable devices. Memor 11 Memor 11...

  • Page 91: Wwan Connection

    CONTENTS WWAN CONNECTION The Memor 11 enhances your connectivity solutions giving you an opening to an inter- national wireless infrastructure that is the global standard. It is optimized for the follow- ing two-way communications: • Voice: GSM voice data (dial-up) •...

  • Page 92: Bluetooth® Serial Connection

    CONTENTS BLUETOOTH® SERIAL CONNECTION The Memor 11 can communicate with a Bluetooth® device, such as a printer, within a range of 10 m, using the on-board Bluetooth® module. NOTE: In order to extend battery life, the Bluetooth® module is off by default.

  • Page 93: Near Field Communication (Nfc)

    NFC technology allows short-range, wireless data transfer between the terminal and NFC tags or other NFC enabled devices placed in close proximity to the back of the ter- minal. Memor 11 support the following modes of operation: • NFC tag reader/writer mode: the terminal reads and/or writes digital information from or to an NFC tag.

  • Page 94: Wireless And Radio Frequencies Warnings

    However, certain electronic equipment may not be shielded against the RF signals generated by Memor 11. Datalogic recommends persons with pacemakers or other medical devices to follow the same recommendations provided by Health Industry Manufac- turers Associations for mobile computers.

  • Page 95: Technical Features

    TECHNICAL FEATURES TECHNICAL DATA ITEM DESCRIPTION PHYSICAL CHARACTERISTICS Dimensions 15.5 x 7.8 x 1.87 cm / 6.1 x 3.07 x 0.73 in Weight With Battery: 285.0 g / 10.0 oz 5 inch IPS HD resolution 720 x 1280; LED backlight; Display Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass...
  • Page 96 CONTENTS ITEM DESCRIPTION SENSORS Vibration Software programmable for duration and intensity Magnetometer Senses orientation (eCompass) Accelerometer 3-Axis accelerometer to detect orientation Gyroscope Senses angular velocity on WWAN models only Ambient Light Auto adjusts display backlight Proximity Auto deactivates display when close to face WIRELESS COMMUNICATIONS IEEE 802.11 a/b/g/n/ac and 802.11 d/h/i/k/r/v/w;...
  • Page 97 Datalogic Logger Provisioning Android Zero-Touch, QR Code enrollment, NFC Bump provisioning Configuration and Maintenance Scan2Deploy Studio, OEMConfig Datalogic Shield: recurring security patches, firmware updates, and OS Software Maintenance upgrades Development Java, Cordova and Xamarin SDK available SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears...
  • Page 98 Camera LED flash; Lens: Auto focus 2D Ultra slim area imager (supports 1D / 2D codes); Datalogic’s ‘Green Spot’ for good-read feedback; Halogen ™ DE2102-HP : Scan Engine Depth of Field: 4 to 90 cm / 1.6 to 35 in, depending on bar code den- sity and type;...

  • Page 99: Test Codes

    TEST CODES High Density Codes - 0.25 mm (10 mils) Code 39 17162 Interleaved 2/5 0123456784 Code 128 test EAN 13 EAN 8 USER’S MANUAL...
  • Page 100 CONTENTS Medium Density Codes - 0.38 mm (15 mils) Code 39 17162 Interleaved 2/5 0123456784 Code 128 test 100% EAN 13 100% EAN 8 MEMOR™ 11...
  • Page 101 CONTENTS Low Density Codes - 0.50 mm (20 mils) Code 39 17162 Interleaved 2/5 0123456784 Code 128 test 120% EAN 13 120% EAN 8 USER’S MANUAL...
  • Page 102 CONTENTS 2D Codes Datamatrix ECC200 Example Inverse Datamatrix ECC200 Example MEMOR™ 11...

  • Page 103: Maintenance

    MAINTENANCE CLEANING Periodically clean the Memor 11 device and the docks using a soft cloth slightly damp- ened with only water, or one of the following allowed cleaning agents: • Sani-Cloth® HB, Sani-Cloth® Plus • Super Sani-Cloth® • Hepacide Quat II •...

  • Page 104: Safety And Regulatory Information

    Use only the components and accessories supplied by the manufacturer for the specific Memor 11 being used. • Do not attempt to disassemble the Memor 11 PDA, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty. •...

  • Page 105: Support Through The Website

    Products once sold. The Warranty Period shall be one year from the date of shipment by Datalogic, unless otherwise agreed in an applicable writing by Datalogic. Datalogic will not be liable under the warranty if the Product has been exposed or subjected to any: (1) maintenance, repair, installation, handling, packaging, transportation, storage, operation or use that is improper or otherwise not in compliance with Datalogic’s instruction;...
  • Page 106 IN ANY PRODUCT DELIVERED BY DATALOGIC SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT ON WHICH THE CLAIM IS BASED. DATALOGIC SHALL NOT BE LIABLE FOR DAMAGES RELATING TO ANY INSTRUMENT, EQUIPMENT, OR APPARATUS WITH WHICH THE PRODUCT SOLD UNDER THIS AGREEMENT IS USED.
  • Page 107 GLOSSARY Access Point A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile computers, PDAs or other devices equipped with radio cards, communicate with wired networks using Access Points (AP). The mobile unit (mobile computer) may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired net- work.
  • Page 108 CONTENTS Character A pattern of bars and spaces which either directly represents data or indicates a control function, such as a number, letter, punctuation mark, or communications control con- tained in a message. Decode To recognize a barcode symbology (e.g., Codabar, Code 128, Code 3 of 9, UPC/EAN, etc.) and convert the content of the barcode scanned from a visual pattern into electronic data.
  • Page 109 CONTENTS Local area network. A radio network that supports data communication within a local area, such as within a warehouse of building. Laser Light Amplification by Stimulated Emission of Radiation.The laser is an intense light source. Light from a laser is all the same frequency, unlike the output of an incandescent bulb.
  • Page 110 CONTENTS Universal Serial Bus. Type of serial bus that allows peripheral devices (disks, modems, printers, digitizers, data gloves, etc.) to be easily connected to a computer. A "plug-and- play" interface, it allows a device to be added without an adapter card and without rebooting the computer (the latter is known as hot-plugging).
  • Page 112 © 2023 Datalogic S.p.A. and /or its affiliates • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A.
