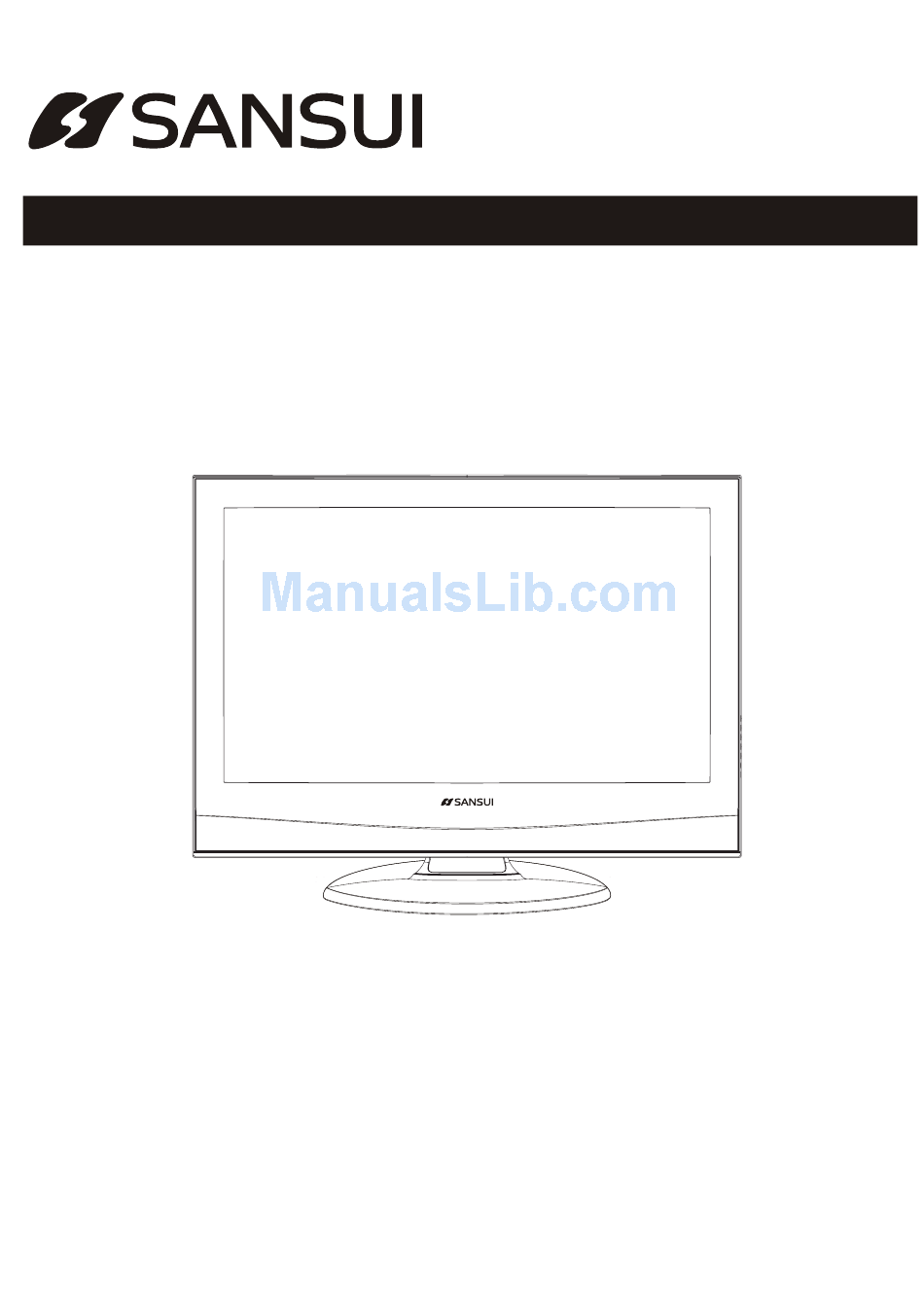

- Page 1 OPERATING INSTRUCTIONS MODEL: LCD27HWB LCD32HWB LCD37HWB LCD42HWB LCD42HWA LCD47HWB LCD TV...
-
Page 2: Table Of Contents
O p e r a t i n g I n s t r u c t i o n s Contents Contents Important Safeguards Introduction Front Panel Rear Panel How to connect with the peripheyal equipment Remote Control Overview Basic Operation Power On/Off Select Viewing Source... -
Page 3: Important Safeguards
O p e r a t i n g I n s t r u c t i o n s Important Safeguards Before using your TV, please read these instructions completely, and keep this man ual for future reference. Carefully observe and comply with all warnings, cautions and instructions placed on the unit or described in the operating instructions or service manual. - Page 4 O p e r a t i n g I n s t r u c t i o n s Never use a damaged power cord: Heavy objects, heat or tensile force may damage the power cord and cause ?re or electric shock. Never block or cover the slots or openings in the TV cabinet back, bottom, and sides.
- Page 5 O p e r a t i n g I n s t r u c t i o n s The power cable should be kept away from heat sources: The heat produced by any heat source may melt the covering of the power cable.
- Page 6 O p e r a t i n g I n s t r u c t i o n s Others: 1). The LCD panel on this TV is manufactured using an extremely high level of precision technology; however, an occasional pixel (dot of light) may display constantly on the screen.
- Page 7 O p e r a t i n g I n s t r u c t i o n s 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.
-
Page 8: Introduction
O p e r a t i n g I n s t r u c t i o n s Introduction Front Panel The pictures are for function illustration - Here shown may be somewhat different from your TV. - Please take the TV as the standard STANDBY VOL+... -
Page 9: Rear Panel
O p e r a t i n g I n s t r u c t i o n s Introduction Rear Panel HDMI2 HDMI1 VGA AUDIO VIDEOI N 1 VIDEOI N 2 RF IN VIDEO OUT SPDIF COMPONENT 1 COMPONENT 2 VIDEO IN 3 JACK NAME... -
Page 10: How To Connect With The Peripheyal Equipment
O p e r a t i n g I n s t r u c t i o n s How to connect with the peripheral equipment RCA is used to join with equipments with DVD output (480i /480p /576i /576p / 720p /1080i) M onitor HDMI2 HDMI1... -
Page 11: Remote Control Overview
O p e r a t i n g I n s t r u c t i o n s Introduction Remote Control Overview Zoom Standby Standby Zoom Mute Sleep timer Input source Sleep Source Arrows Exit Menu Exit Menu HDMI List... -
Page 12: Basic Operation
O p e r a t i n g I n s t r u c t i o n s Basic Operation Power On / Off . Connect the TV unit to power source using power cord. 2. When the power indicator in red, the TV is in standby mode. Now press the " Standby "... -
Page 13: Menu Operation
O p e r a t i n g I n s t r u c t i o n s Menu Operation If you want to adjust the display settings, please follow the instruction below. Press the " MENU" and "... - Page 14 O p e r a t i n g I n s t r u c t i o n s Menu Operation Channel Menu DTV Manual Tuning ( only available in DTV mode DTV Manual Tuning You can also set program list again one by one by " Manual Search " fun ction. VHF CH Press "...
-
Page 15: Picture Menu
O p e r a t i n g I n s t r u c t i o n s Menu Operation Picture Menu Press " MENU" and " " buttons to select the PICTURE MENU Press " " button select items PICTURE Picture Mode... -
Page 16: Sound Menu
O p e r a t i n g I n s t r u c t i o n s Menu Operation SOUNS Menu Press " MENU" And " " buttons to select the SOUND MENU Press " " button select items SOUND Sund Mode... -
Page 17: Option Menu
O p e r a t i n g I n s t r u c t i o n s Menu Operation Option Menu Press " MENU" " " buttons to select the OPTION MENU Press " " Button to enter the Submenu OPTION... - Page 18 O p e r a t i n g I n s t r u c t i o n s Menu Operation LOCK MENU Set Password Press " " Select items Please enter Password - - - Press number buttons to enter the new password Confirm - - - - Note If you forgot the password Please enter the...
-
Page 19: Unique Buttonsoperation
O p e r a t i n g I n s t r u c t i o n s Unique Buttons Operation Important Unique Buttons RECALL Press " RECALL" button restore former channel . Channel List Channel List B C 1 ZOOM 2 0 A... - Page 20 O p e r a t i n g I n s t r u c t i o n s Unique Buttons Operation Important Unique Buttons EPG( only available in DTV mode Press " " button to display the Electronic Program me Guide .
-
Page 21: Teletext
O p e r a t i n g I n s t r u c t i o n s Teletext Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language ( cable networks, satellite channels, etc. -
Page 22: Trouble Shooting
O p e r a t i n g I n s t r u c t i o n s Trouble shooting Before contrast the service technician, perform the following simple checks. If any program still persists, unplug the PDP TV and calling for serving. -
Page 23: Technical Specifications
O p e r a t i n g I n s t r u c t i o n s 1. T echnical Speci?cation Product Model: LCD27HWB Screen Size: 26” Inches diagonal Screen Area: 575.769mm(H) x 323.712mm(V) Aspect Ratio:... - Page 24 O p e r a t i n g I n s t r u c t i o n s 1. T echnical Speci?cation Product Model: LCD32HWB Screen Size: 31.55” Inches(801.31mm)diagonal Screen Area: 697.685mm(H) x 392.256mm(V) Aspect Ratio: 16:9 External Size: 865mm(W) x 185mm(H) x 612mm(D) (with Stand) Net Weight:...
- Page 25 O p e r a t i n g I n s t r u c t i o n s 1. T echnical Speci?cation Product Model: LCD37HWB Screen Size: 37” Inches Screen Area: 819.36mm(H)×460.89mm(V) Aspect Ratio: 16:9 Vertical Frequency: 100Hz(Typical) External Size: 1165mm(W) x 245mm(H) x 695mm(D) (with Stand)
- Page 26 O p e r a t i n g I n s t r u c t i o n s 1. T echnical Speci?cation Product Model: LCD42HWB 42.02 ” Inches(1067.3mm)diagonal Screen Size: Screen Area: 930.25mm(H) x 523.25mm(V) Aspect Ratio: 16:9 Vertical Frequency: 100Hz(Typical)
- Page 27 O p e r a t i n g I n s t r u c t i o n s 1. T echnical Speci?cation Product Model: LCD42HWA 42.02 ” Inches(1067.3mm)diagonal Screen Size: Screen Area: 930.25mm(H) x 523.25mm(V) Aspect Ratio: 16:9 Vertical Frequency: 100Hz(Typical)
- Page 28 O p e r a t i n g I n s t r u c t i o n s 1. T echnical Speci?cation Product Model: LCD47HWA Screen Size: 46.96 ” Inches(1192.87mm)diagonal Screen Area: 1039.68mm(H) x 584.82mm(V) Aspect Ratio: 16:9 Vertical Frequency: 100Hz(Typical)
-
Page 29: Support The Siynal Mode
O p e r a t i n g I n s t r u c t i o n s 2. Support the Signal Mode A. D-Sub Mode (VGA) Vertical Horizontal Frequency Frequency Resolution (KHz) (Hz) 640 x 480 31.50 60.00 35.16... - Page 30 ENGLAON ELECTRONIC TECHNOLOGY CO.,LTD P/N:304-MD10901A...
