12-1/2 inch (317 mm)
Portable Planer
Raboteuse portative
de 317 mm (12-1/2 po)
Cepillo Portátil de 317
mm (12-1/2 pulg.)
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.portercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS DE
SERVICIO Y PÓLIZA DE GARANTÍA.
ADVERTENCIA: LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.
CATALOG NUMBER
PC305TP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC305TP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Porter-Cable PC305TP

Summary of Contents for Porter-Cable PC305TP

  • Page 1 317 mm (12-1/2 po) Cepillo Portátil de 317 mm (12-1/2 pulg.) Instruction manual Manuel d'instructions Manual de'instrucciones www.portercable.com INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO CATALOG NUMBER ANTES DE USAR EL PRODUCTO. PC305TP...

  • Page 2: Important Safety Instructions

    Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. PORTER-CABLE strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed.

  • Page 3: Additional Specific Safety Rules

    Never stand on the machine. Injury could occur if the under the influence of drugs, alcohol, or medication. A tool tips, or if you accidentally contact the cutting tool. moment of inattention while operating power tools may result in injury. Never leave the machine running unattended.

  • Page 4: Power Connections

    Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, GROUNDED OUTLET BOX birth defects or other reproductive harm. Some examples of these chemicals are: CURRENT CARRYING PRONGS masonry products, and...

  • Page 5: Extension Cords

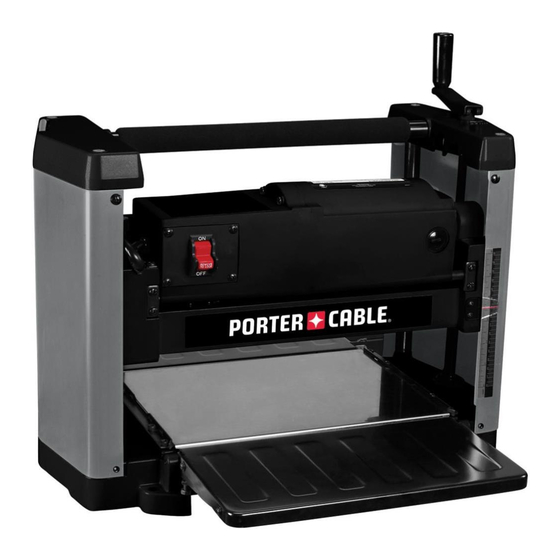

    PC305TP is a 12-1/2 inch (317 mm) Portable Planer. This planer can handle workpieces up to 12-1/2 inches (317 mm) wide and 6 inches (152 mm) thick. The maximum depth of cut is 3/32 inch (2.4 mm). The PC305TP features a powerful 15 amp, 120 volt motor, a two-knife cutterhead with double-edged reversible knives, knife-installation tool and wrench.
  • Page 6 UNPACKING AND CLEANING Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol. NOTICE Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your machine.

  • Page 7: Operation

    OPERATION STARTING AND STOPPING PLANER Make sure that the switch is in the "OFF" position before plugging cord into outlet. Do not touch the plug’s metal prongs when unplugging or plugging in the cord. The on/off switch (A) Fig. 10 is located on the front of the planer moter.

  • Page 8: Wrench Storage

    KNIFE TRANSFER TOOL STORAGE The knife transfer tool (A) Fig. 15, supplied with your planer, can easily be stored underneath the outfeed table extension (B) when not being used. A Velcro strip (C) is provided on the tool and underneath the table for this purpose. WRENCH STORAGE The wrench (A) Fig.

  • Page 9: Machine Use

    Insert knife transfer tool (G) Fig. 21, underneath center of knife. Lift the knife transfer tool up until knife (H) separates from pins (J) and pull out and remove knife as shown. NOTE: Knife transfer tool is magnetized, allowing it to attach to knife.

  • Page 10: Troubleshooting

    TROUBLESHOOTING For assistance with your machine, visit our website at www.portercable.com for a list of service centers or call the help line at 1-888-848-5175. MAINTENANCE To reduce the risk of injury, turn unit off and disconnect it from power source before installing and removing accessories, before adjusting or when making repairs.

  • Page 11: Three-Year Limited Warranty

    PORTER-CABLE power You can also write to us for information at PORTER-CABLE, tool for any reason, you can return it within 90 days from the date 4825 Highway 45 North, Jackson, Tennessee 38305, (888) 848- of purchase with a receipt for a full refund –...
