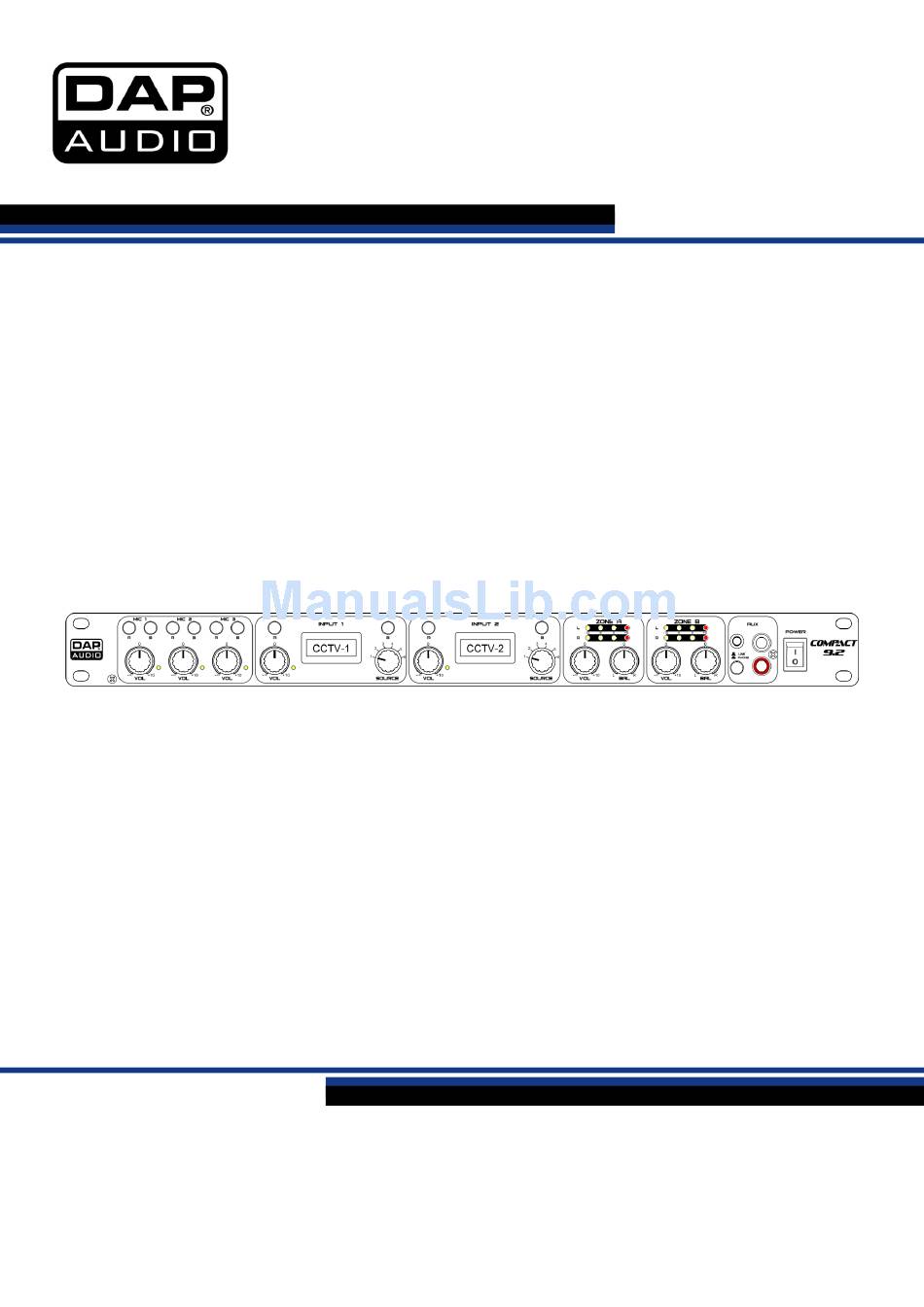

- Page 1 MANUAL ENGLISH Compact 9.2 Ordercode: D2322 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Compact 9.2 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Features ..................................5 Overview ..................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Compact 9.2 Power adapter 2x15Vac 350mA ... - Page 4 Compact 9.2 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-
Page 5: Operating Determinations
Compact 9.2 Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device
No difficult programming is needed! The Compact 9.2 has 2 individual zones. This will help users to select the desired source for the desired area. All gain, EQ, phantom power and technical settings are on the backside. -
Page 7: Overview
Compact 9.2 Overview Front Panel Zone select button (Mic 1–3) Use these 2 switches to assign the channel to the zone A, zone B output or both. Mic Volume control (mic 1–3) Controls the volume of the corresponding microphone channel. - Page 8 Compact 9.2 11. Aux in unbalanced mini jack input connector Unbalanced stereo mini jack aux input for connecting a line/phones level device. 12. Aux in unbalanced RCA input connectors Unbalanced stereo RCA aux input for connecting a line/phones level device.
-
Page 9: Rear Panel
Compact 9.2 Rear Panel 15. Power adapter connector This is the remote AC power supply input socket for the Compact 9.2. It is a special three core socket. only use the supplied DAP audio adapter. 16. Equalizer Section The microphone channel’s equalizer section allows shaping of the incoming audio signal. The high and low shelving controls have their frequencies fixed at 12KHz and 80Hz respectively. - Page 10 Compact 9.2 26. DIP Switch (Phantom power on/off / Hi-Pass 80Hz on/off) Left switch (Turn on/off Phantom power), right switch (Turn on/off the Hi-Pass filter) 27. Mic gain control (all MIC inputs) The microphone input level is determined by the gain control. With the gain control you are able to adjust the microphone input-sensitivity for an optimal match with the mixer’s internal operation level.
-
Page 11: Set Up And Operation
Compact 9.2 Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 115V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 12: Connection Example
Compact 9.2 Connection Example Ordercode: D2322... -
Page 13: Maintenance
Compact 9.2 Maintenance DAP Audio Compact 9.2 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Compact 9.2 Product Specifications Input channels: 3 x Microphone, combo XLR/Jack 6 x Line, RCA 1 x Phone, 3,5mm jack Output channels: 2 x Master Balanced, XLR Master EQ: 80Hz, 2,5KHz, 12KHz, -6dB / +6dB Frequency response: 20Hz - 20Khz T.H.D.:... -
Page 15: Notes
Compact 9.2 Notes Ordercode: D2322... - Page 16 ©2014 DAP Audio...
