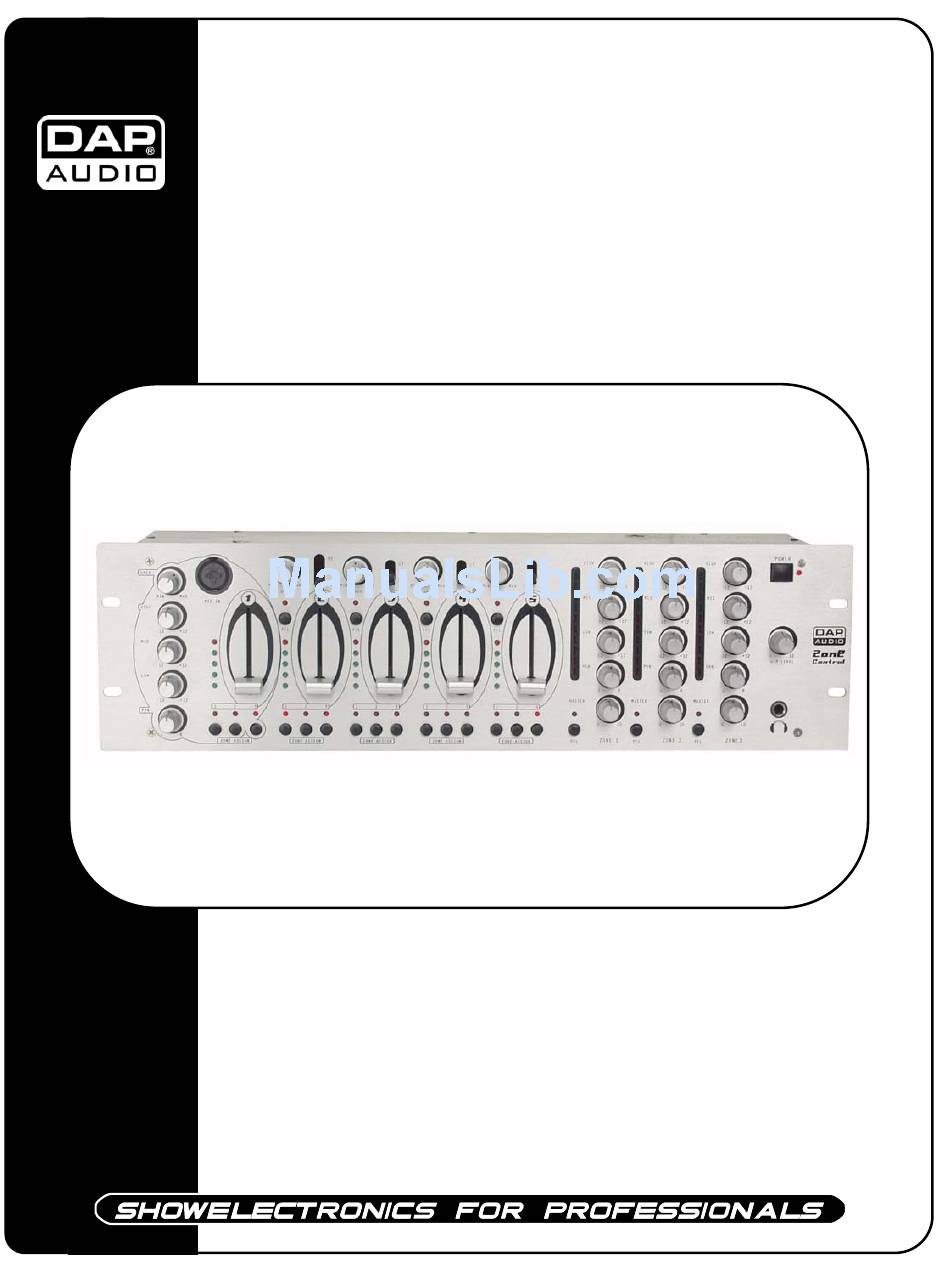

- Page 1 ZoneControl MKII ORDERCODE D2107...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio ZoneControl MKII brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio ZoneControl MKII Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview ..…………………………………………………………………………………….………..……. Backside.………………………………………………………………………….………..……………..…. Installation................…...……………………………………..…. Set Up and Operation..............……..…………………………….….. Set Up ………………..........…………………………………....……..Connection Cables......…........………..………….…….………….…. Maintenance………......…........………..………….…….………….…. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Make sure you don’t use the wrong kind of cables or defective cables. • Make sure that the signals into the mixer are balanced, otherwise hum could be created. • Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear. •... -
Page 6: Description
Description of the device Features The ZoneControl MKII is a Multi Zone mixer from Dap Audio. • 5 channels, including one special microphone-channel with 3-way Eq and balanced input • 3 separate zones with separate outputs • Every channel assignable to one of these zones •... -
Page 7: Backside
Backside Fig. 2 21) Balanced XLR Output for Zone 1, 2 or 3 (L / R) 22) Unbalanced L/R and Rec Out L/R for Zone 1, 2 or 3 23) Light to Sound for Zone 1, 2 or 3 24) For CH5; L8 (L/R) and L7 (L/R) 25) For CH4;... -
Page 8: Installation
Installation Remove all packing materials from the ZoneControl MKII. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 9 6. MIC Electronically balanced XLR-type inputs for connecting low-impedance microphones. The input provides extremely low noise and low hum signal processing. When connecting a microphone make sure that the pin assignment is correct. Always make sure to read the manual of the microphone you want to connect. The XLR-inputs are not suitable for connecting an additional mixing console, FX-unit, etc.
- Page 10 ou can adjust High, Mid, Low, Pan, Master and PFL per Zone individually. Thus giving you enough room to play with all 3 output channels. 12 / 13 / 14. EQ HIGH / MID / LOW The mixer’s Equalizer section allows shaping of the incoming audio signal. All mono input channels are fitted with 3-band EQ.
-
Page 11: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Set Up Set Up example... -
Page 12: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 13: Maintenance
Maintenance DAP Audio ZoneControl MKII requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Product Specification Model: DAP Audio ZoneControl MKII Power 230 V Dimensions 480 x 120 x 133 mm (LxWxH); 3HE Weight 3.86 Kg Mono Inputs Mic Input electronically balanced Frequency response 10 Hz to 60 KHz ±3 dB Distortion (THD & N) 0.007% at ±20 dBu, 1 Khz, Bandwidth 80 KHz... - Page 15 2005 Dap Audio.
