Summary of Contents for DAPAudio IPS-PT

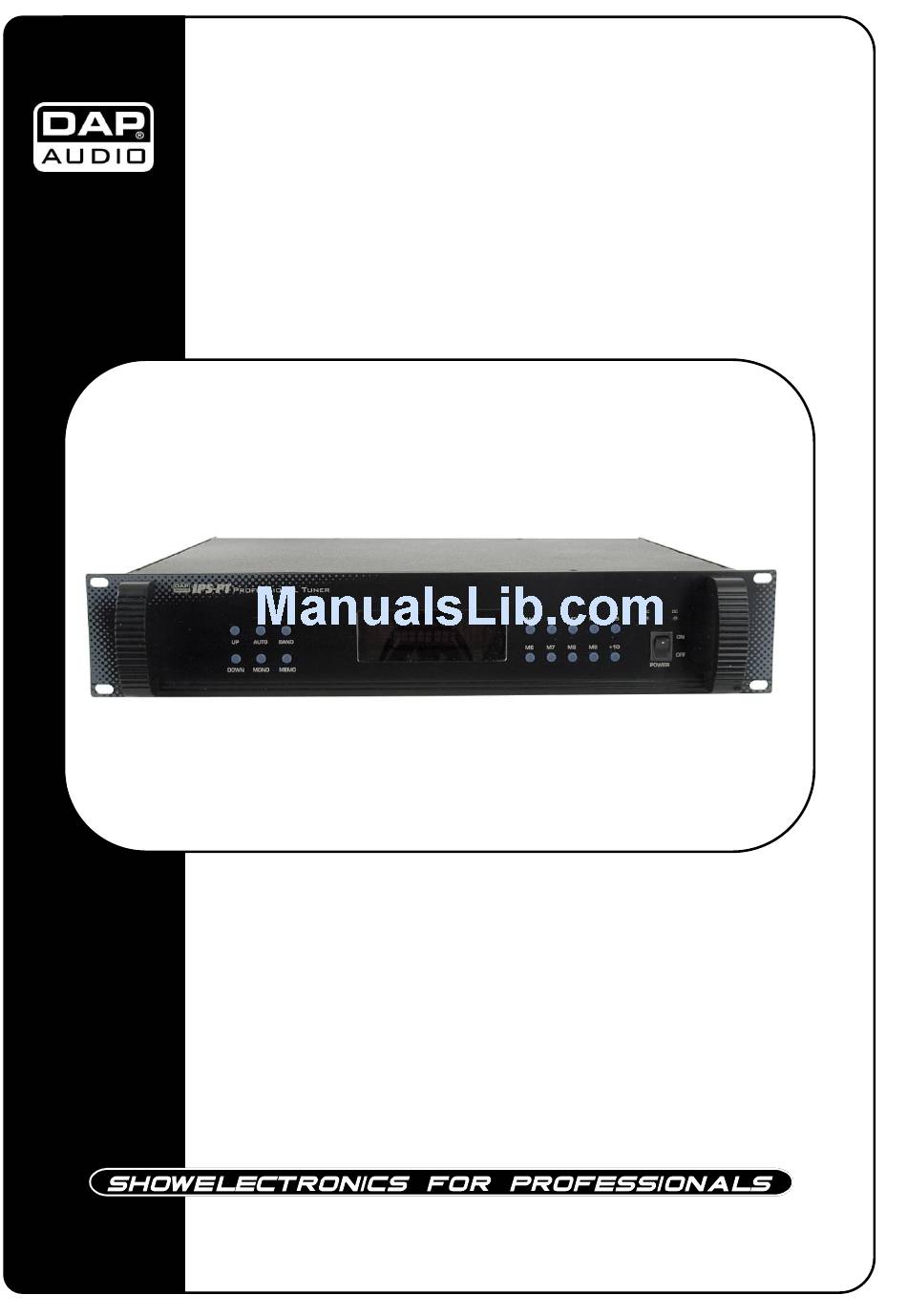

- Page 1 IPS-PT ORDERCODE D6513...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio IPS-PT brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio IPT-PT Guide Warning................................Safety-instructions..........................Operating Determinations......................... Connecting to the mains........................Description................................ Features..............................Overview Front panel......................... Overview Back panel......................... Operation................................Connecting the device........................Selecting a station..........................Storing a station in memory....................... Mono/ stereo switching........................Remote data link..........................Maintenance.............................. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Please read this manual carefully and keep it for future reference. Remember that the amplifier has a better value on the market, if you save the carton and all packing materials. Always operate the unit with the AC ground wire connected to the electrical system ground. Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in bridged mode, may damage both the amplifier and test equipment. -
Page 6: Description
Description of the device Features DC 24V function AM/ FM band Micro computer chip control, digital tuning system Touch button control LCD display 20 radio-station memory function Manual storage & automatic search function Level indicator & data memory function Front panel Fig. -
Page 7: Overview Back Panel
Back panel Fig. 2 AC Inlet with integrated fuse holder. This connector is meant for the connection of the supplied main cord. Connect one end of the power cord to the connector, the other end to the mains, then turn on the power switch (1) to operate the unit. -
Page 8: Operation
Operation Installation Remove all packing materials from the IPS-WPT. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Connecting Power / Circuit Size Requirements. The actual current draw, the amplifier demands from the AC mains, depends on many factors (its load, output level or the crest factor of its program material). -
Page 9: Selecting A Station
The IPS-PT can be controlled by an IPS-WPT. You can program the IPS-WPT to select presets of the IPS-PT. Connect the DATA OUT port of the IPS-WPT to the DATA IN port of your IPS-PT by a suitable serial data... -
Page 10: Maintenance
Maintenance The DAP Audio IPS-PT requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 11: Product Specifications
Product Specifications Model Professional Tuner Power supply AC 110-120/220-240V 50/60Hz, DC 24V Band FM 87.0 - 108.0MHz AM 522 - 1611kHz Input Sensitivity FM 10dBμV (S/N ratio 30dB) AM 23dBμV (S/N ratio 20dB) FM Mono 76dB Stereo 70dB (100dBμV input) AM 40dB (80dBμV input) Freq. - Page 12 2008 Dap Audio.
