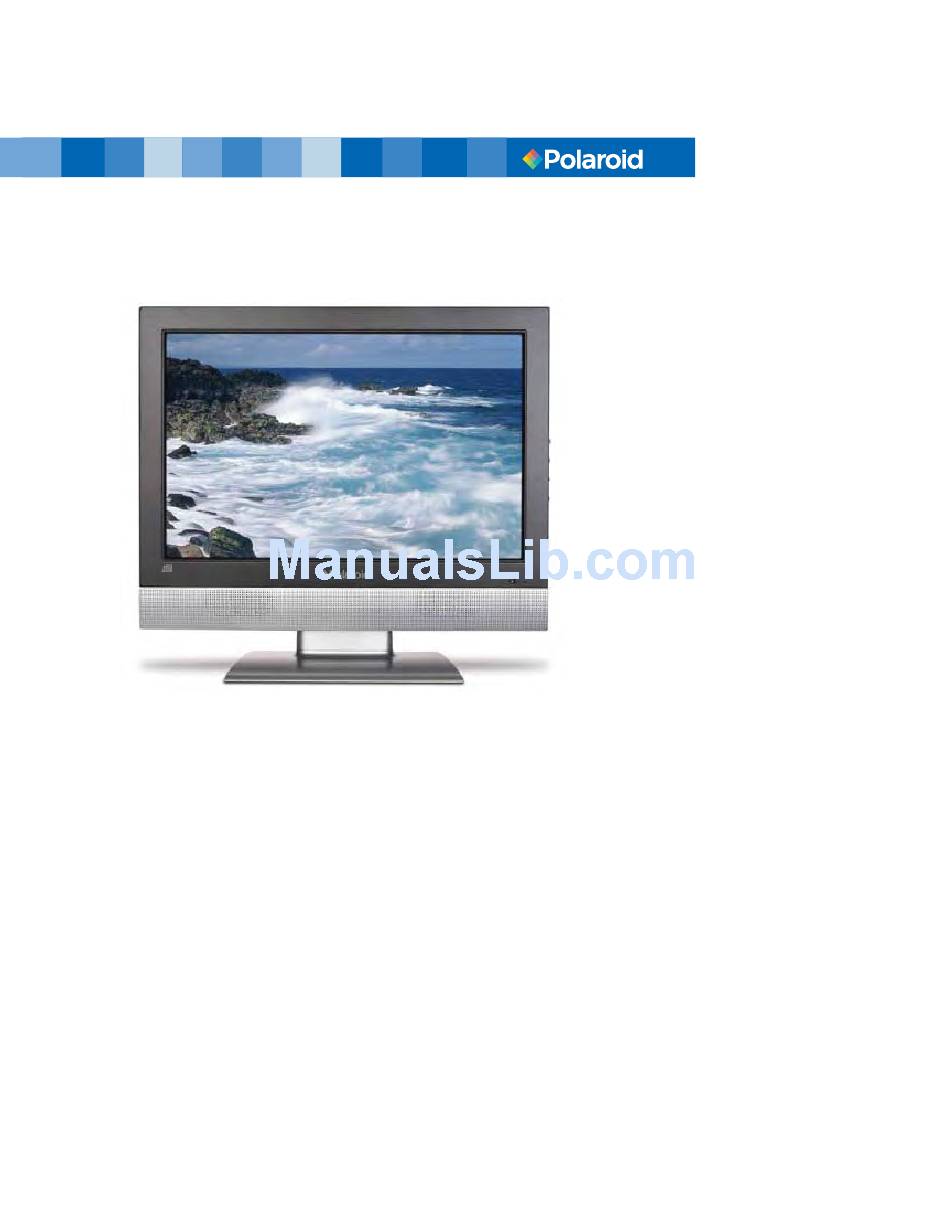

- Page 1 HD-Ready Widescreen LCD TV with PAL/SECAM Tuner...
- Page 2 As a consumer, you are responsible for ensuring that this product is disposed of properly. To fi nd out how to properly dispose of this product, please go to www.polaroid.com and click on “Company“ or call the customer service number for your country listed in the instruction manual.
-
Page 3: Important Safety Instructions
Warnings and Precautions Warnings and Precautions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. - Page 4 Warnings and Precautions ▪ Use and handle the power cord with care. Do not place any heavy objects on the AC power cord. ▪ Do not pull the AC power cord. Do not handle the AC power cord with a wet hand. ▪...
-
Page 5: Antenna Safety Instructions
Warnings and Precautions Outdoor Antenna Safety Instructions If an outdoor antenna is connected, follow the precautions below: ▪ An outdoor antenna should not be located in any area where it could come in contact with overhead power lines, or any other electric light or power circuits. ▪... -
Page 6: Table Of Contents
CONTENTS Warnings and Precautions Important Safety Instructions ..................1 Antenna Safety Instructions ..................3 Chapter 1 Introducing the LCD TV Key Features ....................... 5 Package Contents ....................... 6 Setting Up Your LCD TV ....................7 Your LCD TV ........................ 9 Your Remote Control ....................11 Chapter 2 Installing the LCD TV Connecting a TV Cable or an Antenna .............. -
Page 7: Chapter 1 Introducing The Lcd Tv
Chapter 1 Introducing the LCD TV Chapter 1 Introducing the LCD TV Key Features Various Audio/Video terminals for external equipment connection ▪ 1 composite video input terminal ▪ 1 S-VIDEO terminal ▪ 1 SCART input terminal ▪ 1 set of component Video input terminals ▪... -
Page 8: Package Contents
These items are all you need to set up and operate the LCD TV in its basic confi guration. Make sure all of the following contents are included. If you are missing any items, please return this product to the original place of purchase or contact Polaroid directly. -
Page 9: Setting Up Your Lcd Tv
Chapter 1 Introducing the LCD TV Setting Up Your LCD TV How to install the TV Stand Follow the instructions below to install the TV stand: Open the box, and make sure all necessary parts are in the box. The package contains: Stand LCD TV... - Page 10 Chapter 1 Introducing the LCD TV How to setup the TV Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal (refer to page 15-18). Connect the AC power cord at the back of the TV and connect the power cord to wall outlet. Insert the 2 batteries supplied in remote control.
-
Page 11: Your Lcd Tv
Chapter 1 Introducing the LCD TV Your LCD TV Front/Left /Right Side View and Controls Front View Right Side View Left Side View Infrared Receiver The LED light indicates when the LCD TV is activated. HEADPHONE VOLUME Connects to the external Adjusts the volume up and down. - Page 12 Chapter 1 Introducing the LCD TV Rear View and Jacks VHF/UHF IN Connects RF input from VHF/UHF antenna or cable to receive standard defi nition television. S-VIDEO/VIDEO/AUDIO(L/R) IN Connects to the S-Video/Composite VIDEO and AUDIO(L/R) output jacks on external video equipment. (S-VIDEO and Video have a common audio input.) YPbPr IN Connects to the DVD player, Digital Set-Top-Box, or...
-
Page 13: Your Remote Control
Chapter 1 Introducing the LCD TV Your Remote Control POWER Turns the LCD TV on and off. I-II Cycles through the TV sound options (NICAN) : MONO/DUAL/STEREO Mutes and restores your LCD TV sound. SCALE Cycles through Wide mode settings : SCALE In TV/AV/S-VIDEO/SCART mod NORMAL /FULL/ZOOM1/ZOOM2... - Page 14 Chapter 2 Installing the LCD TV INPUT Pressing INPUT displays the source list, use ▲▼ to select the video equipment connected to the video inputs of your LCD TV SCALE S-VIDEO YPbPr SCART HDMI EXIT Exits the OSD menu. MENU Displays the OSD menu on the screen.
-
Page 15: Chapter 2 Installing The Lcd Tv
Chapter 2 Installing the LCD TV Chapter 2 Installing the LCD TV Refer to the owner’s manual of any external equipment to be connected. When connecting any external equipment, do not connect any AC power cords to wall outlets until all other connections are completed. Connecting a TV Cable or an Antenna Antenna Connection The antenna requirements for good color TV reception are more important than those for a black &... - Page 16 Chapter 2 Installing the LCD TV Use one of the following two diagrams when connecting an outdoor antenna. A: Shows how to use a VHF/UHF combination outdoor antenna. B: Shows how to use a separate VHF and/or UHF outdoor antenna. A.
- Page 17 Chapter 2 Installing the LCD TV Cable TV (CATV) Connection ■ A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, connect the 75- ohm cable into the ANT. terminal. ■...
- Page 18 Chapter 2 Installing the LCD TV Use a supplied antenna cable to connect the TV signal to the LCD TV’s TV CABLE terminal. VHF/UHF IN Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
- Page 19 Chapter 2 Installing the LCD TV Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the TV. TV Setup ► ◄ ► Fine Tune ◄ ► Add / Erase ◄...
-
Page 20: Connecting An A/V Device With Composite Connector
Chapter 2 Installing the LCD TV Connecting an A/V Device with Composite Connector Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO IN SCAR T GAME CONSOLE VIDEO OUT AUDIO Cable D V D PLA YER AV Cable... -
Page 21: Connecting An A/V Device With S-Video Connector
Chapter 2 Installing the LCD TV Connecting an A/V Device with S-Video Connector Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO IN SCAR T GAME CONSOLE S-VIDEO OUT AUDIO Cable D V D PLA YER S-VIDEO Cable... -
Page 22: Connecting An A/V Device With Component(Ypbpr) Connector
Chapter 2 Installing the LCD TV Connecting an A/V Device with Component(YPbPr) Connector Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO I SCAR T GAME CONSOLE COMPONENT AUDIO Cable Pr/Cr Pb/Pb COMPONENT Cable... -
Page 23: Connecting An A/V Device With Scart Connector
Chapter 2 Installing the LCD TV Connecting an A/V Device with SCART Connector Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO IN SCAR T D V D PLA YER SCART Cable Use a SCART cable to connect the external A/V device... -
Page 24: Connecting An Av Equipment With Hdmi Connector
Chapter 2 Installing the LCD TV Connecting an AV Equipment with HDMI Connector Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO IN SCAR T HDMI Cable AV EQUIPMENT Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN jacks. -
Page 25: Connecting An Av Equipment With Dvi Connector
Chapter 2 Installing the LCD TV Connecting an AV Equipment with DVI Connector Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO IN SCAR T AUDIO Cable AUD IO HDMI-to-DVI Cable DVI IN AV EQUIPMENT... -
Page 26: Connecting A Pc
Chapter 2 Installing the LCD TV Connecting a PC Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN AUD IO IN PC/VG A IN PC AUDIO IN SCAR T AUDIO Cable VGA Cable Use a D-SUB cable to connect the PC’s D-SUB output jack to the LCD TV’s VGA input jack. -
Page 27: Connecting An Audio Receiver Or A Dolby Digital 5.1 Sound System
Chapter 3 Using the LCD TV Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System For better sound quality, you may want to play the LCD monitor audio through your stereo system. Rear of TV HDMI S-VIDEO VIDEO COAXIAL AUD IO IN VHF/UHF IN... -
Page 28: Operating The Menu
Chapter 3 Using the LCD TV Chapter 3 USING THE FEATURES Operating the Menu Press the button to turn the LCD TV on. Press the MENU button on the remote control, the on-screen menu will appear on the screen. Use the ◄► buttons to select your main menu option. PICTURE MENU: Allows you to make adjustments to your picture settings. - Page 29 Chapter 3 Using the LCD TV AUDIO MENU: Allows you to customize the audio options and effects. ▪ If the signal source is AV/S-VIDEO/YPbPr/HDMI/ ▪ If the signal source is TV, the AUDIO Menu appears SCART, the AUDIO Menu appears as: Audio Setup Audio Setup ◄...
- Page 30 Chapter 3 Using the LCD TV ▪ If the signal source is VGA, the OSD Setup Menu appears as: OSD Setup ◄ ► Language English Time Out Transparency ◄ ► Sleep timer 109 Min ► Reset TV SETUP MENU: Allows you to edit and label channels. ▪...
-
Page 31: Customizing The Picture Settings
Chapter 3 Using the LCD TV Customizing the Picture Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the Picture. Use the ▲▼... - Page 32 Chapter 3 Using the LCD TV Saturation Controls the color intensity. Sharpness Increase this setting to see crisp edges in the picture; decrease it for soft edges. Scale Selects through Wide mode settings : In TV/AV/S-VIDEO/SCART mod NORMAL /FULL/ZOOM1/ ZOOM2 n YPbPr/HDM mode, only 480i and 576i mode can be adjusted : NORMAL /FULL/ZOOM1/ZOOM2...
-
Page 33: Customizing The Audio Settings
Chapter 3 Using the LCD TV Customizing the AUDIO Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the AUDIO. Use the ▲▼... -
Page 34: Customizing The Osd Setup Settings
Chapter 3 Using the LCD TV Customizing the OSD SETUP Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the OSD SETUP. Use the ▲▼... -
Page 35: Customizing The Tv Settings
Chapter 3 Using the LCD TV Customizing the TV Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the TV Setup. Use the ▲▼... - Page 36 Chapter 3 Using the LCD TV Channel Name Allows channel labels to be edited. Use the ▼▲◄► buttons to select the characters (maximum of 5 characters). Channel Swap Allows to change the TV station channel location. Channel Reset Allows to restore default settings.
-
Page 37: Customizing The Vga Settings
Chapter 3 Using the LCD TV Customizing the VGA Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the VGA Setup. Use the ▲▼... -
Page 38: Troubleshooting
Specifi cations TROUBLESHOOTING Before consulting service personnel, check the following chart for a possible cause of problem and for a possible solution. TV will not turn on Make sure the power cord is plugged in, then press the button on the remote. The batteries in the remote control may be exhausted. -
Page 39: Specifi Cations
Specifi cations SPECIFICATIONS LCD Panel Panel Size 15.4”/39cm TFT LCD 19”/48cm TFT LCD Brightness Contrast Ratio 400:1 850:1 Max. Resolution 1280x800 1440x900 C-VIDEO/ S-VIDEO/ Input Connector AUDIO IN(L/R) YPbPr/ AUDIO IN(L/R) 1 SCART HDMI VGA LINE IN SPDIF OUT HEADPHONE VHF/UHF IN Power Source AC100~240V, 50/60HZ, 1.5A...
