Summary of Contents for Polaroid LCD TV with Digital Tuner

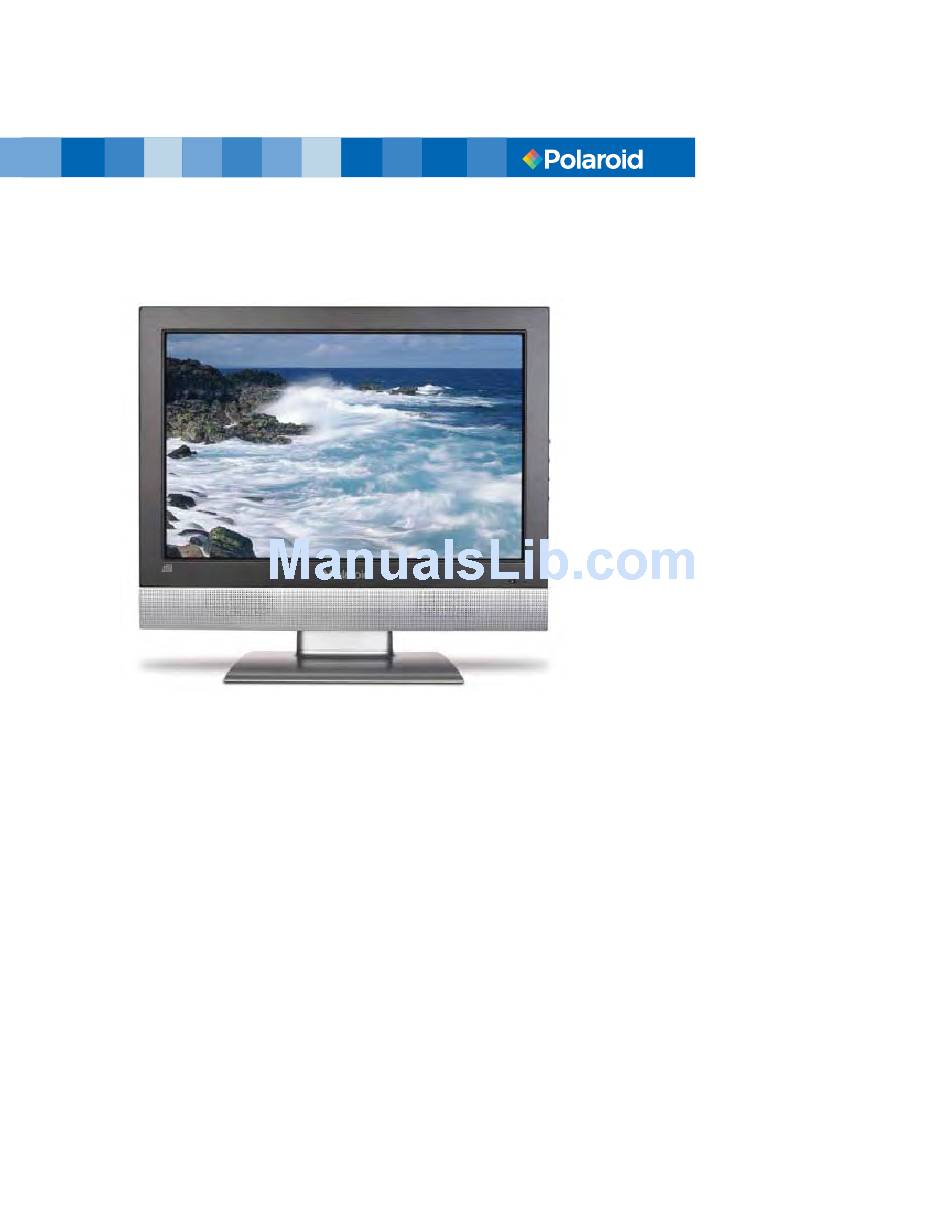

- Page 1 HD-Ready Widescreen LCD TV with Digital Tuner...
- Page 2 As a consumer, you are responsible for ensuring that this product is disposed of properly. To fi nd out how to properly dispose of this product, please go to www.polaroid.com and click on “Company“ or call the customer service number for your country listed in the instruction manual.
-
Page 3: Federal Communications Commission Statement
Federal Communications Commission Statement This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Warnings And Precautions
Warnings and Precautions Warnings and Precautions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. - Page 5 ▪ Use and handle the power cord with care. Do not place any heavy objects on the AC power cord. ▪ Do not pull the AC power cord. Do not handle the AC power cord with a wet hand. ▪ Do not touch the power cord and antenna cable during lightning. ▪...
-
Page 6: Antenna Safety Instructions
Warnings and Precautions Outdoor Antenna Safety Instructions If an outdoor antenna is connected, follow the precautions below: ▪ An outdoor antenna should not be located in any area where it could come in contact with overhead power lines, or any other electric light or power circuits. ▪... -
Page 7: Table Of Contents
TABLE OF CONTENTS Preparation Important Safety Instructions ... 1 Antenna Safety Instructions ...4 Chapter 1 Introducing the LCD TV Package Contents...6 Setting Your LCD TV... 7 Your LCD TV...8 Remote Control...11 Chapter 2 Installing the LCD TV Connecting a TV Cable or Aerial...14 Connecting a DVD Player ... -
Page 8: Chapter 1 Introducing The Lcd Tv
These items are all you need to set up and operate the LCD TV in its basic confi guration. Make sure all of the above contents are included in the package. If you are missing any items, please contact the Polaroid customer service department. VIDEO Cable... -
Page 9: Setting Up Your Lcd Tv
Setting Up Your LCD TV How to install the TV Stand Follow the instructions below to install the TV stand: Open the box, and make sure all necessary parts are in the box. The package contains: LCD TV Cover an even stable surface with a soft cloth. Place the LCD TV unit face- down on the cloth. - Page 10 Chapter 1 Introducing the LCD TV How to setup the TV Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal (refer to page 15-18). Connect the AC power cord at the back of the TV and connect the power cord to wall outlet. Insert the 2 batteries supplied in remote control.
-
Page 11: Your Lcd Tv
Your LCD TV Front/Left /Right Side View and Controls Right Side View Infrared Receiver The LED light indicates when the LCD TV is activated. VOLUME Adjusts the volume up and down. VOL.+ Selects the main-menu item and change values for items when in the OSD mode. VOL.- ▲▼... - Page 12 Chapter 1 Introducing the LCD TV Rear View and Jacks PC/VGA IN ITEM Connects the AC power cord to this socket./ Make sure 1 AC IN / Power Switch that this switch is in the ON position (Red LED light will show on the bottom centre of the TV).
-
Page 13: Remote Control
Your Remote Control POWER Turns the LCD TV on and into standby mode . Mutes and restores your LCD TV sound. ATV/DTV Pressing enter ATV (analogue) or Digital (DTV) Mode. Select and switch to a channel by using 0-9 buttons. GUIDE In DTV mode,pressing GUIDE key displays the electronic program guide on the screen. - Page 14 Chapter 2 Installing the LCD TV ▲▼◄ ► INFO Pressing once displays a variety of information such as the current channel and the input source. INPUT Cycles among the diff erent input signal INPUT: TV AV1(SCART) AV2(S-VIDEO) AV3(CVBS) AV4(Y Pb Pr) AV5(VGA) AV6(HDMI) DTV Accesses the TELETEXT items or corresponding pages.
-
Page 15: Connecting A Tv Cable Or An Antenna
Chapter 2 Installing the LCD TV Refer to the owner’s manual of any external equipment to be connected. When connecting any external equipment, do not connect any AC power cords to wall outlets until all other connections are completed. Connecting a TV Cable or an Antenna Antenna Connection The antenna requirements for good color TV reception are more important than those for a black &... -
Page 16: Connecting A Tv Cable Or Aerial
Chapter 2 Installing the LCD TV Use one of the following two diagrams when connecting an outdoor antenna. A: Shows how to use a VHF/UHF combination outdoor antenna. B: Shows how to use a separate VHF and/or UHF outdoor antenna. A. - Page 17 Cable TV (CATV) Connection This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code (NEC) that provides guidelines for proper grounding and, in particular, specifi es that the cable ground shall be connected to the grounding system of the building accurately, or as close to the point of cable entry as possible.
- Page 18 Chapter 2 Installing the LCD TV Use a supplied antenna cable to connect the TV signal to the LCD TV’s TV CABLE terminal. Connect the AC power cord at the back of the TV and connect the power cord to wall outlet. Press the POWER button on your remote to turn on your LCD TV.
-
Page 19: Connecting A Dvd Player
Connecting a DVD Player PC/VGA IN Audio Audi ideo Video/Audio Cable METHOD A (AV4 ) Use a Component cable to connect the (Y Pb Pr ) sockets on the DVD player to your LCD TV. Use an audio cable to connect the DVD’s audio sockets to your LCD TV. METHOD B (AV2) Use an Audio cable to connect the DVD’s audio output sockets to your LCD TV. -
Page 20: Connecting A Vcr&Video Camera
Chapter 2 Installing the LCD TV Connecting a VCR&Video Camera PC/VGA IN Audio Audi ideo Video/Audio Cable METHOD A (AV2) Use an Audio cable to connect the VCR’s/ the Video Camera’s audio output sockets to your LCD TV. Use a S-Video cable to connect your LCD TV and VCR player/ video camera. METHOD B (AV3) Use an A/V cable to connect the VCR’s/ video camera’s composite output sockets to your LCD TV. -
Page 21: Connecting A Tv Cable Box Or Satellite Receiver
Connecting a TV Cable Box or Satellite Receiver Rear of TV PC/VGA IN Audio Audi ideo Video/Audio Cable Satellite antenna cable SATELLITE RECEIVER Method A(AV4) : Use a Component cable to connect the Y/Pb/Pr sockets on the TV Cable Box to your LCD TV. -
Page 22: Connecting An Audio Receiver
Chapter 2 Installing the LCD TV Connecting an Audio Receiver Rear of TV PC/VGA IN Use an audio cable to connect the audio receiver’s audio LINE IN sockets to LCD TV ‘s DIGITAL OUT sockets. Connect all power INPUTs before turning on the power switch of the LCD TV or other connected equipments. -
Page 23: Chapter 3 Using The Features
Chapter 3 USING THE FEATURES Tuning in the TV channels After connecting an aerial to your LCD TV and connecting the mains cable to the TV and 230VAC mains socket, turn the POWER SWITCH of rear TV on, a red light will show on the front centre panel of the TV. -
Page 24: Osd Menu Operation
Chapter 3 Using the LCD TV OSD Menu Operation 1 The main menu provides access to the following menus: Video Adjust picture setting such as picture mode, contrast, brightness,sharpness colour and advanced. Audio Adjust sound option and eff ects. Setup Adjust colour standard, sound standard, APS, Manual search, Channel setup. -
Page 25: The Video Settings
The VIDEO Settings OPTION Advanced AUDIO Use this AUDIO setting menu to adjust the sound and balance and volume to your listening requirements. OPTION Volume Balance Chapter 3 Using the LCD TV DESCRIPTION Display Mode Allows you to select the display mode to be Wide, 4:3,Original, Zoom. -
Page 26: The Setup Settings
Chapter 3 Using the LCD TV The Setup Settings(Analogue TV) Setup menu is only available when viewing Analogue TV. Use this Setup menu to select Colour Standard, Sound Standard, APS, Manual Search, Channel Setup.Use the Up/Down arrow buttons to highlight the required setting. Press the Press OK button to select the function. -
Page 27: The Preferences Settings
The Preferences Settings Use this Preferences setting menu to set up some features: OSD, Blue Screen, Childlock, Sleep Timer, OSD Timer, OSD Reset. OPTION Blue Screen Childlock Sleep Timer OSD Timer OSD Reset SCREEN(Only for VGA) OPTION Horizontal Size Horizontal Position Vertical Auto Sync. -
Page 28: Edit Channel List
Chapter 3 Using the LCD TV Chapter 4 Using the DTV OSD Settings OPTION Edit Channel List Confi guration Parental Control EDIT CHANNEL LIST Highlight the Edit Channel List option, then press OK button,there are three Items in the menu. Channel List C r eate a fa v our ite list M odifty a fav our ite list... - Page 29 Using the DTV OSD Settings Channel List F AV 1 B B C O NE B B C TWO B B C THR EE C B B C C hannel B B C NEWS 24 B B C i L ock Sk ip Exit By pressing the YELLOW button you can sort the channels in the list.
- Page 30 Chapter 3 Using the LCD TV If you skip a channel, it cannot be shown in the list menu ( Press OK button will pop-up the favorite channel list menu when you watch the digital terrestrial television ) unless you add it again. ( In the channel list menu, the skipped channel name is not shown.) MODIFY A FAVOURITE LIST You can modify the favourite list which you have create.
-
Page 31: Channel Installation
Using the DTV OSD Settings CONFIGURATION Highlight the Confi guration option, then press OK button to enter the selected option. The confi guration menu is displayed on the screen now. CHANNEL INSTALLATION Use these options If you have moved location or want to rescan for new channels. Press OK button to display the channel installation menu. - Page 32 Chapter 3 Using the LCD TV Using the DTV OSD Settings If you want to install the channels by yourself, using the▲/▼buttons to highlight the channel installation (manual) option, and press ok to install manually. First you should choose the installation type, then you can see the following menu.
-
Page 33: Audio Language
Using the DTV OSD Settings Using the ▲/▼buttons to highlight the user settings item in the confi guration menu, then press OK button to display the user settings menu. AUDIO LANGUAGE This function select which language soundtrack you will hear when switching to a channel broadcasting with multiple soundtracks. -
Page 34: System Information
Chapter 3 Using the LCD TV Using the DTV OSD Settings SYSTEM INFORMATION Highlight the system information item in the system parameter menu, pressing OK button to display the system information menu. You can view the system information in this menu, however, you can modify nothing in this menu, Pressing OK button to quit. -
Page 35: Configuration Menu
Using the DTV OSD Settings PARENTAL CONTROL Highlight the parental control line in the parental control menu and use◄/► buttons to cycle through the enable and disable option. Toggle this option to enable, then the following items can be altered. RECEIVER LOCK You should enter the PIN CODE before you can see the DTV program while you power on the TV and select the DTV INPUT. -
Page 36: Pin Code Change
Chapter 3 Using the LCD TV Using the DTV OSD Settings PIN CODE CHANGE Pressing the ‘RED’ button will popup the PIN code change menu, enter the previous code by using the 0-9 buttons on the remote control, then enter the new code twice to confi rm and this menu will disappear (The PIN is factory set to 0000). -
Page 37: Troubleshooting
Troubleshooting Before consulting service personnel, check the following chart for a possible cause of problem and for a possible solution. TV will not turn on Make sure the power cord is plugged in The batteries in the remote control may be exhausted. Replace new and same brand batteries. -
Page 38: Display Modes
Specifi cations Key Features Various Audio/Video terminals for external equipment connection ▪ 1 set of composite A/V input terminals ▪ 1 SCART input terminals ▪ 1 set of component Video input terminals ▪ 1 VGA/ Audio input terminal ▪ 1 HDMI/Auido input terminals ▪... -
Page 39: Specifications
SPECIFICATIONS MODEL TLU-01541C LCD Panel Panel Size 15.4” TFT LCD Brightness Contrast Ratio 400:1 Max. Resolution 1280x800 Input Connector VIDEO S-VIDEO YPbPr/ AUDIO IN(L/R) 1 AUDIO IN(L/R) PC/VGA IN HDMI IN PC AUDIO IN DIGITAL OUT HEADPHONE VHF/UHF IN Power Source AC100~240V, 50/60HZ, 1.2A AC100~240V, 50/60HZ, 1.2A Power Consumption 50 W, standby <...
