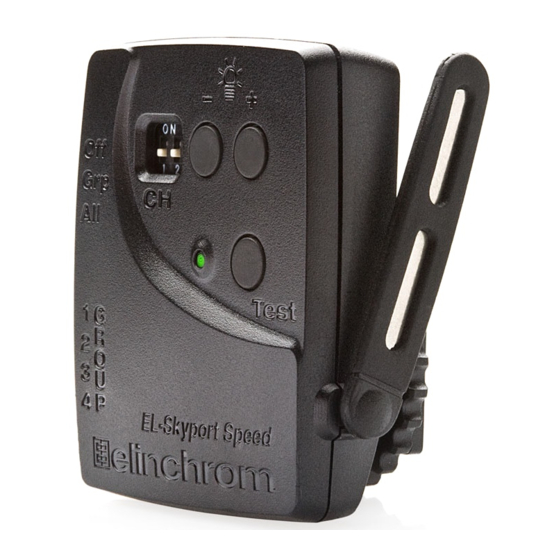

U n i v e r s a l R e c e i v e r S p e e d
19347
E L S U n i v e r s a l S p e e d M a n u a l
0 2 . 0 2 . 2 0 1 0 / / 7 3 3 2 5
Instructions for use
Betriebsanleitung
Mode d'emploi
Instrucciones para el uso
Istruzioni per l'uso

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the El-Skyport and is the answer not in the manual?

Questions and answers

Related Manuals for Elinchrom El-Skyport

Summary of Contents for Elinchrom El-Skyport

  • Page 1 U n i v e r s a l R e c e i v e r S p e e d 19347 Instructions for use Betriebsanleitung Mode d’emploi Instrucciones para el uso Istruzioni per l’uso E L S U n i v e r s a l S p e e d M a n u a l 0 2 .
  • Page 2 English 1 - 11 Deutsch 12 - 22 Français 23 - 33 Español 34 - 45 Italiano 46 - 56 Guarantee 57 - 60...

  • Page 3: Table Of Contents

    Features Battery Charging Status LED Operating Instructions Operating Modes NORMAL Sync Mode SPEED Sync Mode Camera Triggering Reset Frequency Channels Trigger Groups Integrated SYNC Socket EL-Skyport Features EL-Skyport Modules Troubleshooting CE Statements FCC Compliance and Advisory Statement Disposal and recycling...

  • Page 4: Universal Receiver Speed 19347

    Universal Speed 19347 Operating instructions : Universal Receiver SPEED for flash triggering Features The EL-Skyport Universal Receiver SPEED is designed with the latest 2.4 GHz Digital Wireless Technology. What’s New • Camera triggering using the synch socket (requires special camera sync cables) •...

  • Page 5: Battery Charging

    • The internal Li-Ion battery is rechargeable. Use only the EL-Skyport Charger. • Switch the unit OFF for fastest charging time. • Connect the EL-Skyport charger first to the Universal charge socket and then connect to the mains supply. • When the Status LED is ON, charging is in progress •...

  • Page 6: Operating Instructions

    • LED switches off shortly, twice every 4 seconds: the unit charges, the synchronisation mode SPEED is activated. If the Universal Speed will be triggered with the EL-Skyport Transmitter, the LED flashes once in NORMAL mode and twice in SPEED synchronisation mode.

  • Page 7: Operating Modes

    • Check if the Transmitter SPEED and the Universal SPEED are both set to the same synchronisation mode, SPEED or NORMAL. • Now, switch the flash unit ON and press the “TEST” push button of the EL-Skyport Transmitter Speed to release a test flash.

  • Page 8: Camera Triggering

    • To awake from the Stand-By Mode, switch the Universal Receiver “ON” again. Supply Mode: • Connect the EL-Charger, for unlimited operation. • If the EL-Skyport Receiver SPEED is used whilst charging (in Supply-Mode), the unit will not change to Stand-By mode. Reset to Manufactures Settings In case the Universal Receiver SPEED does not work correctly, a RESET might solve the problem.

  • Page 9: Frequency Channels

    Group 1 - 4: triggers and operates flash units in different “Groups” only flash units with the selected Group are triggered by the Transmitter (Group setting must correspond between Transmitter and Receiver) ALL: Transmitter is set to ALL: The Transmitter triggers all EL-Skyport Receivers independent in which GROUP they are. Integrated SYNC Socket The integrated 3.5 mm Mono Jack socket is for direct connection to other flash brands with...

  • Page 10: El-Skyport Features

    EL-Skyport Software 3.0 / Remote and control flash units with the Computer Elinchrom “RX” flash units can be operated / controlled, with MAC or WIN computer operating systems. To access the EXTRA features and modify settings following the components are required: •...
  • Page 11 Camera Hot-shoe. EL-Skyport Transceiver RX • The Transceiver is only for Elinchrom RX flash units (Style RX 300 / 600 /1200, Digital RX 1200 / 2400, Ranger RX System) This module operates all RX features with the EL-Skyport Software 3.0 and triggers the flash.

  • Page 12: Troubleshooting

    Troubleshooting Should an error occur, first check the following points: Having this problem? Check the following points: The Transmitter does not trigger Ø Is the Transmitter is switched ON? the Universal Receiver. Mode Ø Is the battery polarity correct? “All” is selected Ø...

  • Page 13: Fcc Compliance And Advisory Statement

    Any components not reclaimed will be disposed of in an environmentally acceptable manner. If you have any question on disposal, please contact your local office or your local ELINCHROM agent (check our website for a list of all ELINCRHOM agents world wide).
