Two
CHAPTER
//e and ][ Plus Installation

Installation Procedure

You'll need Phillips screwdriver to install the Vulcan. When
you have one, follow the instructions below.
1 )
Open Computer
Pull up on the two tabs at the rear of the case lifting the lid up
and towards you. (See picture following.)
2 )
Remove Cards
If you have card( installed into the expansion slot, you'll need
to remove them to give yourself room to work.
Refer to your slot cards' manuals for proper removal.
3 )

Remove Power Supply

i)
Unplug external cord from bock of computer.
This is the cord that runs from the back of the computer to the
wall socket. Unplug it from the back of the computer and from
the wall socket as well.
ii)
Unplug internal cord from motherboard.
The intemal power cord is the multi-wire cord running from
the power supply toward the back of the motherboard.

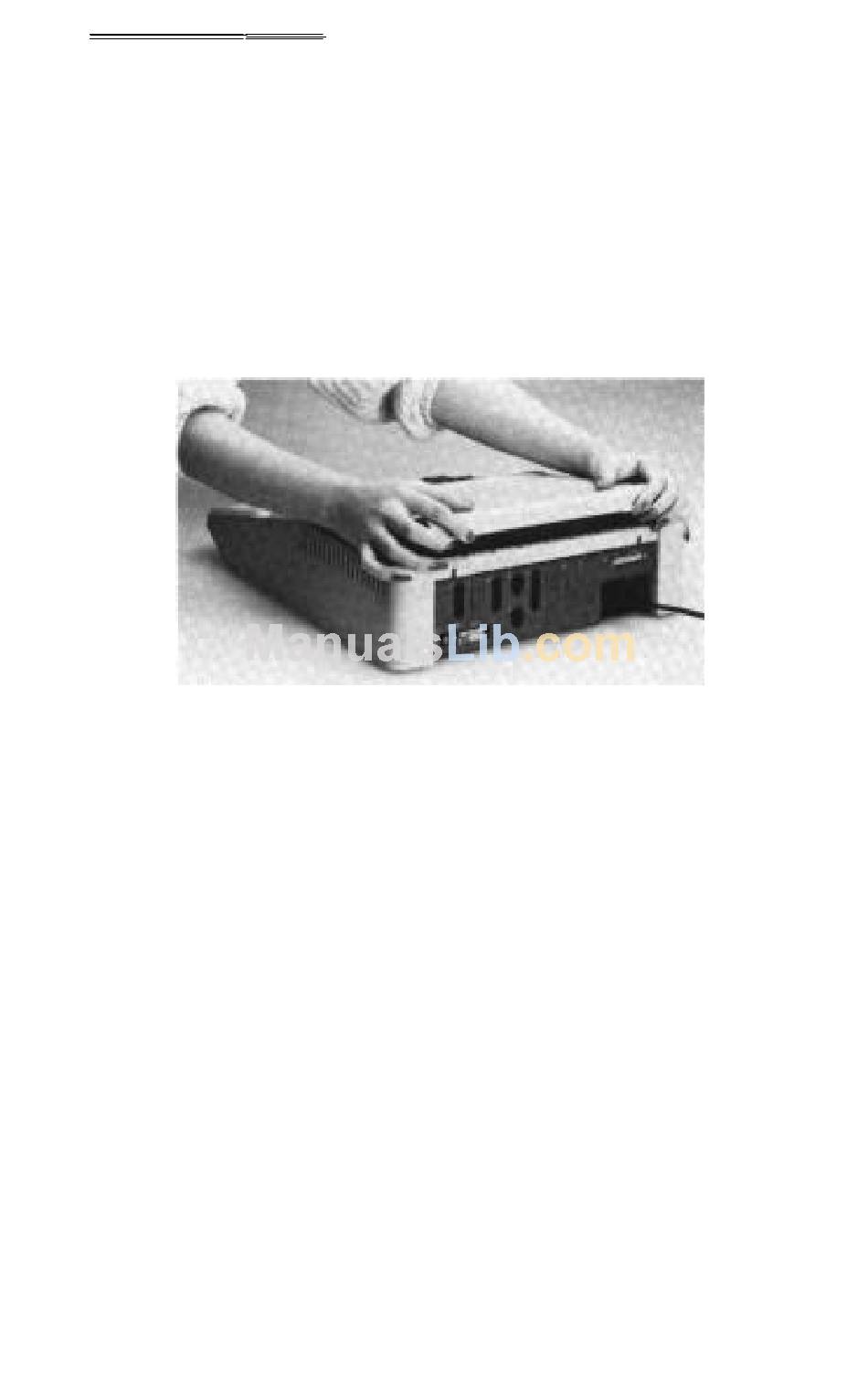

Remove the
//e or
][
cover
Plus
Ch. 2 - //e and ][ Plus Installation
9
