1) Locate the switch block on the controller card.
2) If a piece of tape is covering the switches, remove it.
3) Set the switches in the position shown below.
8 ) Insert Card Into Slot
Align the gold "fingers" of the controller cards edge
connector with the slot; then use the heel of one hand to
push the card down into the slot and seat it firmly.
9 ) Connect Cable from power Drive to Controller Card
Attach the wide flat cable from the hard drive to the connector
on the controller card. The connector and socket are keyed so
that they will attach in only one way.
Make sure that the cable connector is firmly seated in the
controller card socket.
S w i t c h
1
2
3
4

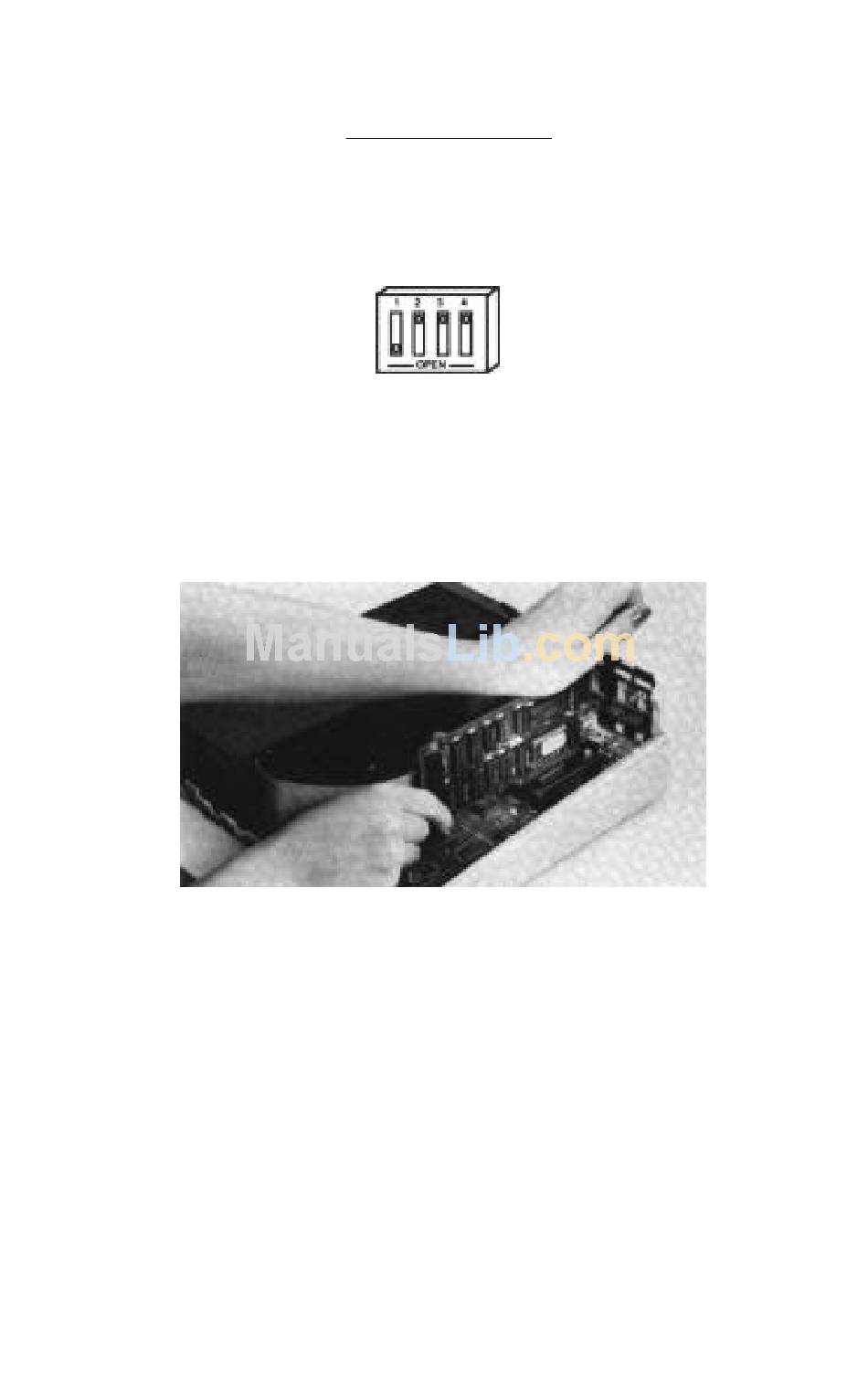

Switches Set for Pseudo-SlottIng
Insert Controller Card into Slot
S e t t i n g
OPEN
CLOSED
CLOSED
CLOSED
Ch. 1 - IIGS Installation 5
