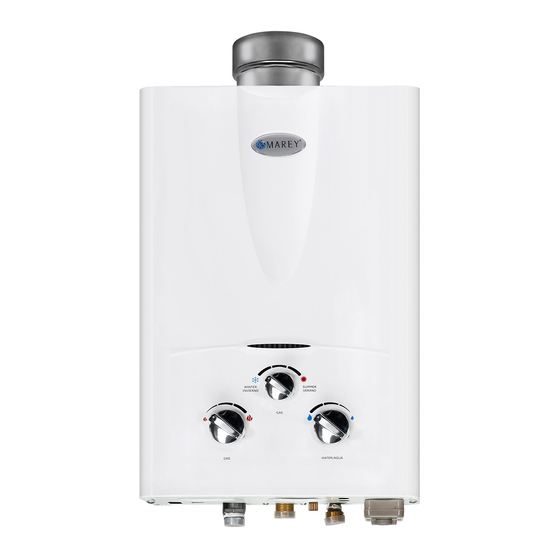

POWER GAS WATER HEATER
INSTRUCTION MANUAL
WINTER
SUMMER
INVIERNO
VERANO
GAS
WINTER
INVIERNO
VERANO
SUMMER
GAS
GAS
GAS
WATER/AGUA
GAS MODELS
Keep this manual with you after your unit has been installed,
you may need it for further technical information.
WINTER
SUMMER
INVIERNO
VERANO
GAS
GAS
WATER/AGUA
WATER/AGUA
Advertisement
Related Manuals for Marey POWER GAS 5L
Summary of Contents for Marey POWER GAS 5L
- Page 1 POWER GAS WATER HEATER INSTRUCTION MANUAL WINTER SUMMER INVIERNO VERANO WINTER SUMMER INVIERNO VERANO WINTER INVIERNO SUMMER VERANO WATER/AGUA WATER/AGUA WATER/AGUA GAS MODELS Keep this manual with you after your unit has been installed, you may need it for further technical information.
-
Page 2: Packing List
Under no circumstances should you attempt to install, repair, or disassemble the Marey Power Gas water heater without first shutting off any gas s upplied to the unit. - Page 3 1. Water heater-Qty 1 - Do NOT attempt to modify the internal components of this appliance. 2. Gas inlet hose connector-Qty 1 3. Rubber gasket-Qty 2 - Do NOT install the water heater in a sealed room or in a room with poor air 4.
- Page 4 6. Anti-dry combustion protection: 2. Don´t expose the water heater to the strong wind or rain. Should dry combustion occur for any reason, the gas supply will be immediately and automatically shut off. 3. Use only the type of gas that is specified on the name plate. 7.
- Page 5 prior to installation. The supplied screen filter must be correctly installed in the cold water inlet to prevent mineral deposits from your water supply from building up in the unit's water valve assembly. After flushing with cold water and confirming that there is no residue in the pipe, install the rubber gasket and tighten the water inlet joint.
- Page 6 Wind/rain cap Installing the Exhaust Pipe - Vent pipe of double walled stainless steel for Class 3 appliances must be used for venting the water heater to the outside. Do Not Attempt to use any other type of vent pipe. All venting must be done in accordance with local building codes and regulations.
- Page 7 1. If a gas leak is detected at any time, close the main gas valve immediately. The necessary. Marey service center or your local gas company should be contacted for repair. - Open the hot water faucet. You should hear the ignition clicking, and hot water 2.
- Page 8 5L and 10L units 16L units IMPORTANT WARNING - PLEASE TAKE NOTE If your unit is a 16L model, you MUST follow this diagram for correctly connecting water and gas to the unit. The water and gas connection diagram contained on the previous page accurate only for the 5L and 10L Power Gas models.
- Page 9 79,228 BTU/h 2.7Gal/min 0.4 PSI 0.4 PSI 111,903 16L/min POWER GAS 16L BTU/h 4.2Gal/min 0.4 PSI Temperature Increase Chart for Marey Tankless Gas Water Heaters Flow (GPM) / Tem Icrease (F) Model* 5GPM 1.0GPM 1.5GPM 2.0GPM 2.5GPM 2.7GPM 3.0GPM 3.5GPM 4.0GPM...
- Page 10 At Marey, we pride ourselves on the excellence of our customer service and Marey proudly manufactures water heaters and accessories for use in almost any support team. application. Please visit our website to learn more about other Marey products. Please feel free to contact us if you have any questions about our products, warranty service, or if you need assistance installing a unit.
