RT-02 AM/FM Stereo Tuner

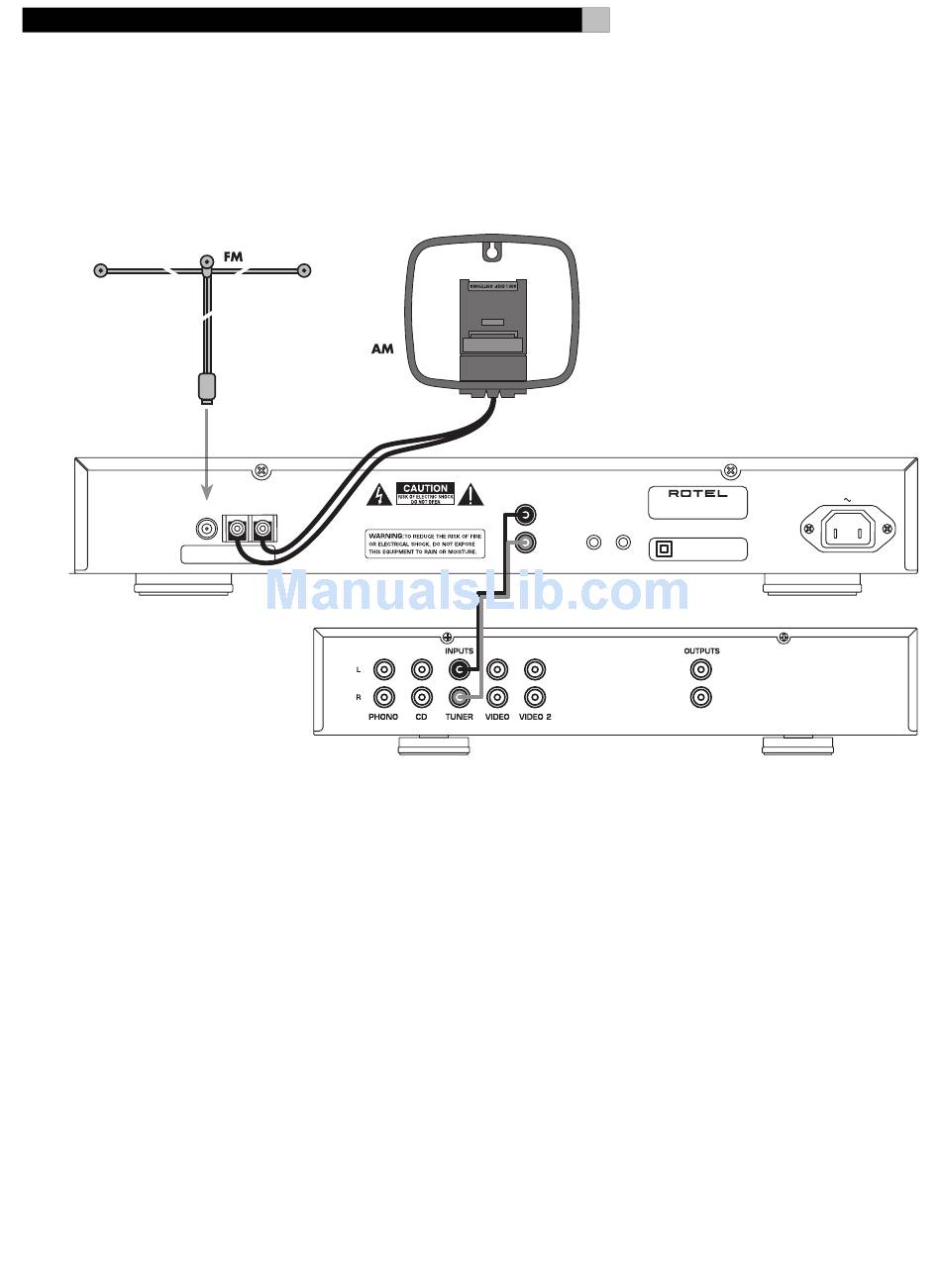

Figure 3: Hook-up Illustration

Schéma de branchement type
Anschlußdiagramm
Schema di collegamento
Ejemplo de Conexionado
Het aansluitingsschema
Anslutningsbeskrivning
DESIGN CERTIFIED TO COMPLY WITH
F.C.C. RULES, PART 15, SUBPART C.
ANTENNA
FM AM G
WARNING:
AVIS:
OUTPUT
SHOCK HAZARD – DO NOT OPEN
LEFT
RISQUE DE CHOC ELECTRIQUE – NE PAS OUVRIR
RIGHT
4
AM/FM STEREO TUNER
MODEL NO. RT-02
POWER CONSUMPTION : 10W
12V TRIG. EXT.
REMOTE
DOUBLE INSULATION
When servicing use only
IN IN identical replacement parts
Rotel RT-02
Amplifier
