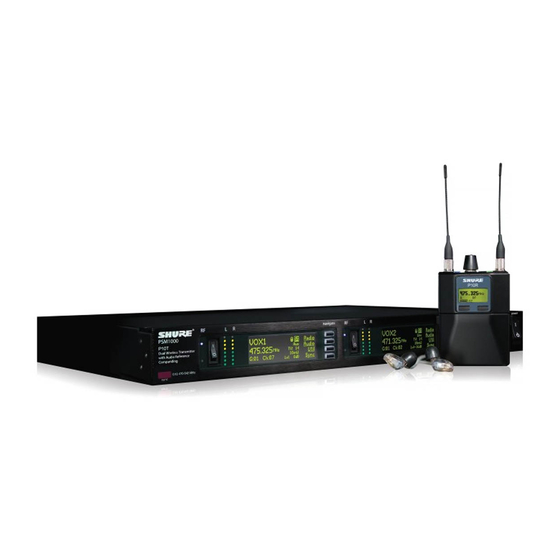

Shure PSM 1000 User Manual

Personal monitor wireless system
Hide thumbs Also See for PSM 1000:
Table of Contents

Advertisement

Quick Links

See also: Manual
PSM
1000
®
Personal Monitor Wireless System
Guide de l'utilisation du système de retour personnel
Personal Monitor System Bedienungsanleitung
Guía del usuario del sistema de monitoreo personal
Guida all'uso del sistema di monitoraggio personale
Manual do Usuário do Sistema de Monitoração Pessoal
Система личного монитора беспроволочная
© 2011 Shure Incorporated
Printed in U.S.A.
27A14811 (Rev. 2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSM 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Shure PSM 1000

Summary of Contents for Shure PSM 1000

  • Page 1 Personal Monitor System Bedienungsanleitung Guía del usuario del sistema de monitoreo personal Guida all’uso del sistema di monitoraggio personale Manual do Usuário do Sistema de Monitoração Pessoal Система личного монитора беспроволочная © 2011 Shure Incorporated Printed in U.S.A. 27A14811 (Rev. 2)

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ these instructions. 13. UNPLUG this apparatus during lightning storms or when unused KEEP these instructions. for long periods of time. HEED all warnings. 14. REFER all servicing to qualifi ed service personnel. Servicing is FOLLOW all instructions. required when the apparatus has been damaged in any way, such DO NOT use this apparatus near water.

  • Page 3: Consignes De Sécurité Importantes

    ! CONSIGNES DE SÉCURITÉ IMPORTANTES ! LIRE ces consignes. UTILISER uniquement avec un chariot, un pied, un trépied, CONSERVER ces consignes. un support ou une table spécifié par le fabricant ou vendu OBSERVER tous les avertissements. avec l’appareil. Si un chariot est utilisé, déplacer l’ensemble SUIVRE toutes les consignes.

  • Page 4: Instrucciones Importantes De Seguridad

    ! INSTRUCCIONES IMPORTANTES DE SEGURIDAD ! LEA estas instrucciones. UTILICESE únicamente con un carro, pedestal, trípode, CONSERVE estas instrucciones. escuadra o mesa del tipo especificado por el fabricante o PRESTE ATENCION a todas las advertencias. vendido con el aparato. Si se usa un carro, el mismo debe SIGA todas las instrucciones.

  • Page 5: Safety Precautions

    ACHTUNG! WARNING! LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING MÖGLICHST GERINGE LAUTSTÄRKEPEGEL VERWENDEN. DAMAGE. Längerfristiges Hören bei übermäßigen Schallpegeln kann zu Hörschäden und zu USE AS LOW A VOLUME AS POSSIBLE. permanentem, durch Lärm verursachten Gehörverlust führen. Bitte orientieren Sie sich Over exposure to excessive sound levels can damage your ears resulting in permanent noise- an den folgenden von der Occupational Safety Health Administration (OSHA;...

  • Page 6: Указания По Технике Безопасности

    AVVERTENZA ВНИМАНИЕ: L'ASCOLTO A VOLUME ECCESSIVAMENTE ELEVATO PUÒ DANNEGGIARE L'UDITO IN ПРОСЛУШИВАНИЕ ЗВУКА ПРИ ЧРЕЗМЕРНО ВЫСОКОЙ ГРОМКОСТИ МОЖЕТ MODO PERMANENTE. MANTENETE IL VOLUME AL PIÙ BASSO LIVELLO POSSIBILE. ПРИВЕСТИ К НЕОБРАТИМОМУ ПОВРЕЖДЕНИЮ СЛУХА.ИСПОЛЬЗУЙТЕ КАК МОЖНО La sovraesposizione a livelli sonori eccessivi può danneggiare l'udito provocando una perdita di udito permanente causata dal rumore.
  • Page 7 PSM1000 The PSM 1000 Personal Monitor System from Shure brings personal monitoring to its most advanced level yet. The full-rack, dual-channel, networkable transmitter is ideally suited for the demands of elite-level professional touring and installation applications, and the diversity bodypack receiver delivers pristine RF signal and audio quality.

  • Page 8: Quick Start Instructions

    Quickstart Instructions Rack Mount Transmitter 1. Connect to a power outlet using the supplied power cable. 2. Attach the supplied antennas to the antenna out BNC connectors. 3. Connect the audio source, such as the output of a mixer, to the au- dio inputs.

  • Page 9: Front Panel Controls

    Use with an IEC extension cable to supply AC power to another device. Unswitched. ⑩ Antenna (BNC) port Attach supplied antennas. If you are rack mounting, use a front panel or remote mounting kit from Shure. ⑪ loop out Sends audio signal going into the transmitter to another device.

  • Page 10: Menu Navigation

    Transmitter Menu Structure and Navigation Home Screen The home screen provides access to submenus and displays a summary of transmitter settings. ④ ⑤ ① Audio channel name ⑦ Audio Level ① ② Frequency setting ⑧ Mix-mono or stereo ③ Group and Channel ⑨ Aux/Line in ② ⑩ ④ Network Icon ⑩ Submenus ③ ⑤ Lock Icon ⑪ TV Channel ⑥ RF Power Level ⑥ ⑦ ⑧...

  • Page 11: Utility Settings

    Utility Settings UTIL Channel Name Channel Name Util > Channel Name Turn control wheel to change channel name. You Display Brightness High can set a different name for each channel on the device (this name is up- loaded to the bodypack with sync). Disp.

  • Page 12: Bodypack Receiver

    ④ IR Window For transmitting settings between bodypack and rack unit. ⑤ Battery Compartment Requires 2 AA batteries or Shure rechargeable battery. Open by pressing the latches on both sides and pulling. ⑥ Menu buttons Use in conjunction with the ▼▲ buttons to access the configuration menus.

  • Page 13: Battery Life

    Battery Life RF Settings Access the following RF settings from the RADIO menu. G: Group number. Each group contains channels selected to work well Battery Tri-Color Approximate Hours Remaining together in a single installation. Indicator Battery Alkaline Alkaline Alkaline Li-ION CH: Channel number.

  • Page 14: Multiple System Setup

    Important: Note the number of available channels. If you have more rack units than available channels, eliminate potential sources of interference and try again, or call Shure Applications for assistance. Use a frequency scan to analyze the RF environment for interference and 3.

  • Page 15: Loop Applications

    Audio Reference Conpanding EXIT sync push Use PTP mode to allow a P10T to transmit to a UHF-R receiver. This allows a transmitter and receiver setup where both units are racked and powered by AC. For more information visit: www.shure.com/americas/products/ personal-monitor-systems...

  • Page 16: Ethernet Connection

    Switch You can control and monitor all networked units through a computer running Shure Wireless Workbench software. If using the default automatic network setting, make sure your computer is configured for DHCP. Note: Some security software or firewall settings on your computer can pre- vent you from connecting to the transmitter.

  • Page 17: Message Types

    The control system sends the following command messages: Sent from the control system to the Shure device to change the value of a parameter. Used to set the parameter to a specific value. Once a SET command is sent, the Shure device sends back a REPORT string with the current resultant setting.

  • Page 18: Spectrum Scan

    Spectrum Scan Updating Receiver Firmware Use this feature to scan the full RF spectrum for potential sources of interfer- Use the following steps to update the firmware on a bodypack receiver. ence and deploy open frequencies to all receivers on the network. A graphi- 1.

  • Page 19: Specifications

    <0.5% (typical) 6.35 mm (1/4") TRS: Tip positive with respect to ring ref. ±34 kHz deviation @1 kHz Configuration Electronically balanced Companding Patented Shure Audio Reference Companding Impedance 70.2 kΩ (actual) Spurious Rejection >80 dB (typical) ref. 12dB SINAD Nominal Input Level switchable: +4 dBu, –10 dBV...

  • Page 20: Accessories And Parts

    ACCESSORIES AND PARTS BAND RANGE COUNTRY Output Power (mW) US, IA 10/50/100 Furnished Accessories 470-542 G10E UK, EU, Peru 10/50 P10R Antenna 470–530 MHz UA700 479-542 540–626 MHz UA710 596–692 MHz UA720 518-582 NZ, Korea 10/50 670–830 MHz UA730 830–952 MHz UA740 P10T Antenna US, IA...

  • Page 21: Licensing Information

    Changes or modifications not expressly approved by Shure Incorporated du Canada. could void your authority to operate the equipment. Licensing of Shure wire- Meets requirements of EMC standards EN 300 422 Parts 1 and 2 and EN less microphone equipment is the user’s responsibility, and licensability 301 489 Parts 1 and 9.
  • Page 22 United States, Canada, Latin Asia, Pacific: Europe, Middle East, Africa: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
