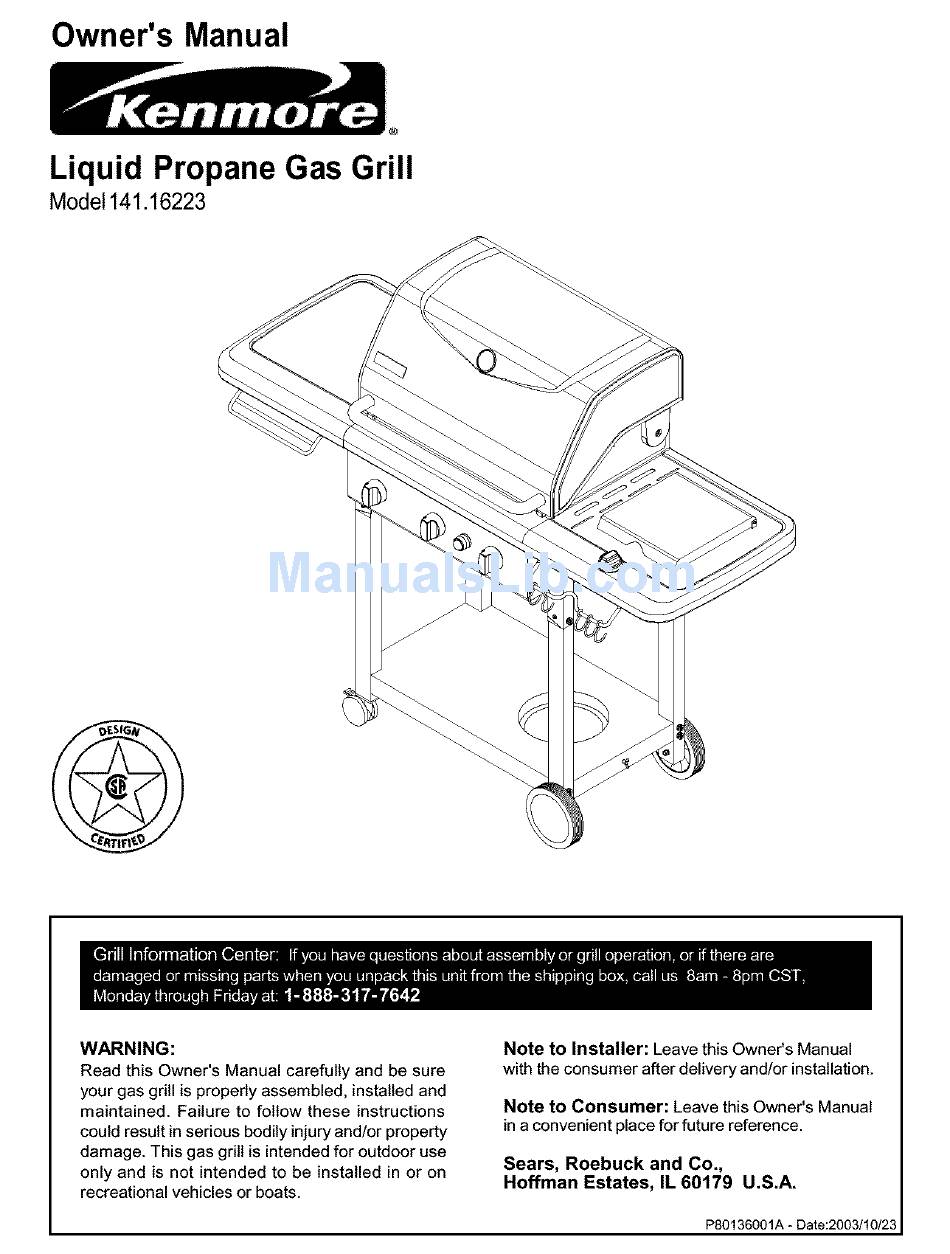

Owner's Manual
®
Liquid Propane Gas Grill
Model 141.16223
WARNING:
Read this Owner's Manual carefully and be sure
your gas grill is properly assembled, installed and
maintained.
Failure to follow these instructions
could result in serious bodily injury and/or property
damage. This gas grill is intended for outdoor use
only and is not intended to be installed in or on
recreational vehicles or boats.
Note to Installer:
Leave this Owner's Manual
with the consumer after delivery and/or installation.
Note to Consumer:
Leave this Owner's Manual
in a convenient place for future reference.
Sears,
Roebuck
and Co.,
Hoffman
Estates,
IL 60179
U.S.A.
P80136001A-
Date:2003/10/23

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 141.16223

Summary of Contents for Kenmore 141.16223

  • Page 1 Failure to follow these instructions could result in serious bodily injury and/or property damage. This gas grill is intended for outdoor use only and is not intended to be installed in or on recreational vehicles or boats. ®...
  • Page 2 "(a)" and "(b)" exactly, a fire causing death FOR YOUR SAFETY FOR YOUR SAFETY Your Kenmore LP Gas Grill cannot to use Natural Gas. Attempting hazardous and will also void the Codes 54, or CAN/ ©Sears, Roebuck and Co.
  • Page 3 Do not obstruct the flow of ventilation air around the gas gdll housing. This outdoor gas grill is not intended to be installed in or on recreational vehicles and/or boats. • Never connect an unregulated your gas grill.
  • Page 4 The location of the Burner Tube with re- spect to the Orifice is vital for safe operation. inside the Burner Tube before using your gas grill. See Fig. 2. If the Orifice inside the Burner Tube, lighting the Burner your may cause explosion...
  • Page 5 The following table illustrates a breakdown in the various stages of assembly. Ref. Component $211G06352 Wheel Bolt 3/8"x3-3/8" $431M08152 Spring Washer $313G06082 Nut 3/8" $132G04082 Pattern Head Screw 1/4"xl/2" $135G04332 Pattern Head Screw 1/4"x2-3/4" $132G04122 Pattern Head Screw 1/4"x3/4" $132G04122 Pattern Head Screw 1/4"x3/4"...

  • Page 6: Table Of Contents

    Size and Quantity Wheel Bolt 3/8"x3-3/8" Qty. 2 Ref. # S211G06352 Pattern Head Screw 1/4"x2-3/4" Qty, 8 Ref, # $135G04332 Battery/AA Wrench/No.17 Qty. 1 Qty. 1 Ref, # P05301001A Ref, # P05515101L Scale Scale Lighting Stick Qty. 1 Ref, # P05313023B Scale Control Knob...
  • Page 7 3,(L)
  • Page 8 REF# DESCRIPTION Lid Hinge Support, Right Lid Hinge Support, Left Temperature Gauge Lid Handle Name Plate Cooking Rack/Secondary Cooking Grid Flame Tamer/Steel Burner/Main with Heat-insulating Burner Bracket Gas Collector Box with Electrode Electric Wire Set Electric Ignitor, 4-port 14a, Battery/AA 15a, Bowl Panel, Front 15b,...
  • Page 9 POO73701]B P06908001C P80136001A PO6001005A E ®(1-800-469-4663) parts for your Kenmore is required to ensure you receive the correct referral and for part replacement. parts. The use of any part that is not Sears authorized gas grill, please refer to the...
  • Page 10 CAUTION: While it is possible for one person to assemble this grill, obtain assistance from another person when handling some of the larger, heavier pieces, especially the grill head. 1. During unpacking and assembly always wear work gloves and eye protection. 2.

  • Page 11: Wheel Bolt 3/8"X3-3/8" Qty

    NOTE: Before attaching located on the right side. Install the Cart Bottom Shelf between the Cart Legs. Align the holes on Cart Legs with the threaded holes at the corners screws. Pattern Head Screw 1/4"x2-3/4" Qty. 8 Ref. # S135G04332 1.

  • Page 12: Lighting Stick Qty

    Be sure bothCastersare locked,thenwith the assistance of anotherperson,turn the assembled grill upright. Installing Grease Draining Tray 1. Position Grease Draining Tray Heat Shield into slots in Grease Draining Tray. See W 2. From the back side of Grill Head install the Grease Draining Tray and Grease Draining Tray Heat Shield.

  • Page 13: Pattern Head Screw M5X8Mm Qty

    Installing Towel Rack Remove theWashers andPattern HeadScrews fromtheTowelRackandusethemto securethe TowelRackto FrontSideof LeftSideShelf. Pattern Head Screw M5x8mm Qty, 2 Ref. # $132M05082 Plain Washer Qty. 2 Ref. # $411M05136 Installing Tool Holder Remove the Washers and Pattern Head Screws from the Tool Holder. Slide the 5 Tool Hooks onto the Tool Holder with the hooks facing the Side Burner Frame.

  • Page 14: Qty. 1

    Installing Side Burner 1. Attach the Side Burner Gas Valve Assembly to the Side Burner Gas Valve Hole on the Side Burner Frame. See _ Align the 2 holes on the Side Burner Frame with the threaded Side Burner Gas Valve Bracket. Tighten securely 2.
  • Page 15 Ignitor Battery Installation 1. Remove the Ignitor Cap located on the grill Control Panel. 2. Place the manufacturer supplied AA battery into the Ignitor Slot. Be sure to place the positive pole facing toward you. 3. Place the Cap and Spring over the AA battery then tighten the Ignitor Cap onto the grill Control Panel.
  • Page 16 CAUTION: When the appliance to check gas must be turned off at the supply tank. Your Kenmore LP gas grill is now ready for use. Before the first use and at the beginning of each season (and whenever the LP gas tank has been changed): 1.
  • Page 17 Z WARNING If you smell gas: • Shut off gas supply to the gas grill. • Turn the Control Knobs to OFF position. • Extinguish any open flame such as candle, cigarette, lighter, etc., that could cause gas to ignite.
  • Page 18 Manually Lighting Your Grill by Match To light your gas grill by match, insert a match into the Lighting Stick and follow steps 1 through 6 of the Basic Lighting Procedures. Then, light the match and place Lighting Stick through the Lighting Hole on the left side of the grill as shown below.
  • Page 19 Aswithallappliances, proper c areandmaintenance willkeepyourgrillintopoperating c ondition a nd prolong itslife.Byfollowing t hesecleaning procedures onatimelybasis, y ourgrillwillstaycleanandwork properiywith m inimum effort. Important N ote:Usea sponge orwashcloth t o clean exterior g rillsurfaces. Afiberor brass cleaning brush canbeusedtoclean interior g rillparts which will accumulate foodandgrease;...
  • Page 20 The location of the Burner Tube with re- spect to the Orifice operation. inside the Burner Tube before using your gas grill. See Fig. 2. If the Burner Tube does not fit over the Valve Orifice, lighting the Burner may cause explosion and/or fire. Figure 2...
  • Page 21 Kenmore gas grill from the weather? Answer: A good quality grill cover should be used to protect your grill when not in use. A Kenmore Grill Cover is made to fit this particular grill model. See your local Sears store or Sears.com for more details.
  • Page 22 Bum-Off Before cooking on your gas grill for the first time, you will want to "bum ofF' the grill to eliminate any odor or foreign matter. Just ignite the burners, lower the Lid, and operate grill on the HIGH setting for three to five minutes.
  • Page 23 Grilling Steak and Ribs Turn the grill Burners on HIGH, close the Lid and preheat your grill 3 to 5 minutes.Open Lid and place the meat on the Cooking Grid directly above the lit Burners. Cook the meat on both sides until seared. Reduce the heat to MEDIUM and cook meat until done.
  • Page 24 Whole Fish and Whole Fillets Preheat your grill on HIGH for 2-3 minutes with the Lid down. Raise lid and turn Burners to MEDIUM heat. Place fish (skin down) on grill and cook over direct heat until done. Use cooking time as a guide or until fish is opaque but still moist.
  • Page 25 An Important Note About Heat Settings The suggested heat settings shown are approximate. There are many factors such as outside temperature, wind conditions and grill location that affect your grill performance. We offer these cooking times as a convenience, but suggest you watch the gdll thermom- eter and adjust the heat accordingly.
  • Page 26 Slow Cooking with a Rotisserie A Kenmore Rotisserie Kit is made to fit this particular model. Rotisserie cooking produces foods that are moist, flavorful and attractive. The optional rotisserie system is most commonly used for cooking meat or _,-_1. _desiqned to cook food slowly.
  • Page 27 STIR-FRYING TECHNIQUES This method of cooking is popular around the world and can be easily accomplished outdoors on your Kenmore gas grill. It's a quick and healthful way of preparing a complete meal using meat, poultry or seafood in infinite combinations with other interesting ingredients like vegetables, rice or noodles.
  • Page 28 ONIONBURGERS A honey and mustard sauce glazes the onion slices as they cook alongside these delicious burgers. For optimal sweetness, select Vidalia or Walla Walta onions. Makes 4 open face burgers. Ingredients large sweet onions, sliced (12 to 16 ounces) tablespoons margarine or melted butter teaspoons dry mustard teaspoons honey...
  • Page 29 RIB EYE STEAKS WITH GRILLED GARLIC As they cook, the garlic cloves mellow in flavor, making a delicious sauce for any gdiled meat. And for an appetizer, spread the softened cloves over toasted slices of french bread! Makes 4 servings. Ingredients whole Head of garlic tablespoons olive oil or cooking oil...
  • Page 30 ALMOND COATED TROUT This delicious recipe is unique and easy to prepare on your gas grill. Makes 4 servings. Ingredients trout cup all purpose flour...
  • Page 31 SOUTHWEST CHICKEN BREASTS This popular recipe can also be a grilled chicken saladt Slice chicken into small strips and place them on top of shredded lettuce with avocado dressing and top with cheese! Makes 6 servings. Ingredients cup dry white wine tablespoons olive oil or cooking oil teaspoons snipped fresh tarragon or 1/4 teaspoon dried tarragon, crushed...
  • Page 32 TRADITIONAL HOLIDAY TURKEY Imagine everyone's surprise when you serve your next holiday turkey--complete with dressing--delicious and tender straight from the griit! Serves 8- 10 Ingredients for Turkey 8 - 10 pound whole turkey ounces butter, softened tablespoons chopped thyme tablespoons lemon juice teaspoons grated lemon rind Ingredients for Dressing ounces butter...
  • Page 33 FRESH VEGETABLE STIR-FRY Take a trip to the Orient with this easy, and healthy vegetable recipe. Makes 4- 6 servings. Ingredients tablespoons oil onion, cut into wedges carrot, thinly sliced cups broccoli, cut into small flowerets red pepper, sliced sticks celery, thinly sliced cup snow peas cup chicken broth Preparation...
