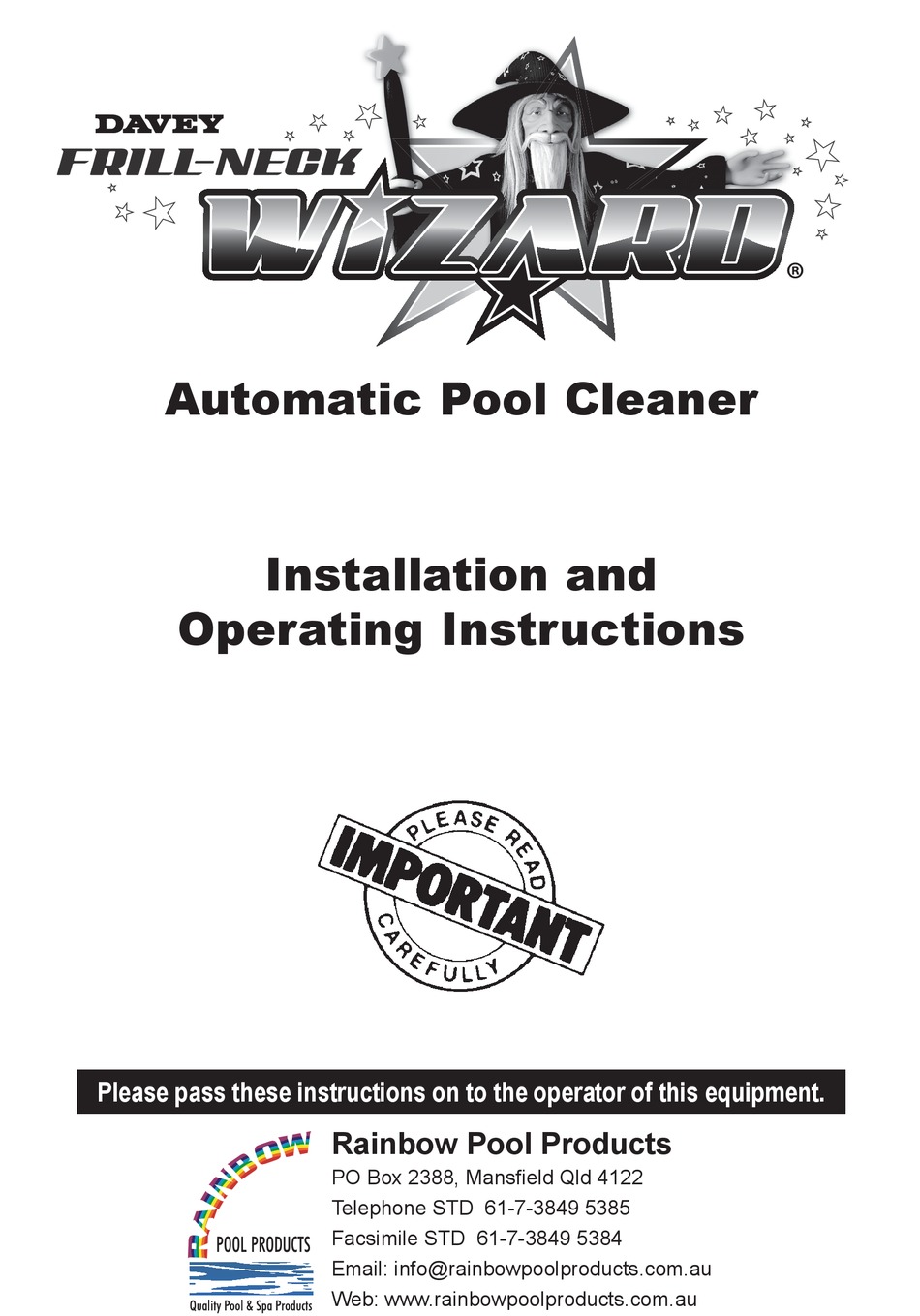

Automatic Pool Cleaner
Installation and
Operating Instructions
Please pass these instructions on to the operator of this equipment.
E-mail: sales@davey.com.au
Website: davey.com.au
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: info@rainbowpoolproducts.com.au
Web: www.rainbowpoolproducts.com.au
Advertisement
Table of Contents
Related Manuals for Davey Frill-Neck Wizard
Summary of Contents for Davey Frill-Neck Wizard
- Page 1 Installation and Operating Instructions Please pass these instructions on to the operator of this equipment. Rainbow Pool Products PO Box 2388, Mansfield Qld 4122 Telephone STD 61-7-3849 5385 E-mail: sales@davey.com.au Facsimile STD 61-7-3849 5384 Website: davey.com.au Email: info@rainbowpoolproducts.com.au Web: www.rainbowpoolproducts.com.au...
-
Page 2: Table Of Contents
Automatic Pool Cleaner Congratulations on the purchase of your Davey Frill-NeckWIZARD ® automatic pool cleaner. Your new Frill-NeckWIZARD has been designed ® for hassle-free surface maintenance of all popular above and below ground pools, so you can simply relax and enjoy swimming in a clean pool! INDEX: Packing List .................... -
Page 3: Packing List
PACKING LIST: Included with your Frill-NeckWIZARD are the following parts: ® 1. Frill-NeckWIZARD Head Unit ® 2. 12 x Hose Sections 3. Surface Cleaning Frill 5. Bumper 6. Hose Weight Ring 7. Hose protector Ring 8. Alternative ‘Slippery Surface’ Footpad 9. - Page 4 2. Surface Cleaning Frill and Footpad: Captures debris from the pool Cleaning Frill Foot Pad Assists the Frill-NeckWIZARD in negotiating steps, ® tight corners and ladders. Can be set at different heights on the bumper. 4. Bumper: Protects the extension pipe from damage whilst providing Bumper 5.
-
Page 5: Step1: Pre-Installation Of Your Frill-Neckwizard
Step 1: Pre-installation of your Frill-NeckWIZARD Pool Cleaner ® Before you begin to install the Frill-NeckWIZARD it is important you have ® of a typical pool with standard equipment showing how the water usually assistance. Step 2: Preparing your Pool for the Frill-NeckWIZARD ®... -
Page 6: Step 3: Assembling The Cleaning Head
Step 3: Assembling the Cleaning Head A. Fit the Cleaning Frill over the base and footpad of your Frill-NeckWIZARD . Ensure that the word “TOP” is facing upwards. ® Step 4: Setting Up the Hoses A. Firmly connect the hose sections together with enough lengths to reach from the skimmer box to the furthest point in the pool, plus additional (corrugation) of the male end. -
Page 7: Step 5: Setting Up The Skimmer Box Connection
C. Place the hose protector ring approximately 10cm from the female end of the last hose (closest to the skimmer box). The position can be adjusted later for best hose protection. Step 5: Setting Up the Weir (Skimmer Box Connection) A. -
Page 8: Step 7: Connecting The Frill-Neckwizard
Step 7: Connecting the Frill-NeckWIZARD ® B. Submerge the Frill-NeckWIZARD cleaner head under water and rotate ® to allow any air to escape (bubbles will be released) of the cleaner head of the Frill-NeckWIZARD ® E. Lower the cleaner head gently and gradually into the pool F. - Page 9 PERFORMANCE CAUSE CORRECTION The WIZARD is moving too fast Adjust springs on and / or is climbing above Too much suction automatic weir water level valve to Low setting The WIZARD is moving too Adjust springs on slowly and / or not climbing Not enough suction automatic weir the low walls...
-
Page 10: Caring For Your Frill-Neckwizard
Improving Suction Performance Your Frill-NeckWIZARD has been supplied with an alternative footpad ® (Dark Silver / without channels) that is designed to give better suction on better suction performance. Correcting Pool Surface Coverage All return jets should be adjusted sideways however it is sometimes Frill-NeckWIZARD away from steps, ladders and corners. - Page 11 Protect the Frill-NeckWIZARD : When not in use, store in a safe, shaded ® area with the hoses laid straight. Removing trapped debris from the Engine Unit: Removing trapped debris is simple. A. Recover the cleaner head and rotate it while still submerged in the water to show the underside and throat.
- Page 12 C. Remove the end cap. RUBBER BALL REPLACEMENT A. Pull the clear Fastening / Wear Ring down, away from the ball. Be careful not to damage the ring. B. Peel the ball off the engine unit by lifting it from the seal lip. C.
-
Page 13: Troubleshooting
Troubleshooting Problem 1: Frill-NeckWIZARD is not working/moving too slowly: ® Cause Solution / Action Pump not Check if the pump is ON and / or primed. If not, turn ON switched on and wait for it to prime Remove obstruction from engine unit. See maintenance tips on page 11 and 12 Ensure the cleaner hose is assembled tightly Adjust the automatic weir valve to medium or high... -
Page 14: Accessories
Ensure the hoses are not damaged. Accessories Part Description Davey Code Is installed on to the hose and is designed to assist the Frill-NeckWIZARD 32605 ladders in above ground Pools. Is installed on the hose line and... -
Page 15: Spare Parts
Spare Parts Part Davey Code Surface Cleaning Frill 401819 Standard Footpad (Silver) 401820 Footpad for slippery surfaces (Dark Silver) 401821 Bumper 401822 401827 Engine Unit M5958 Engine Rubber Ball M5959 Ball Ring M5970 Grey Cleaner Hose x 12 M5910ST Grey Cleaner Hose x 1... -
Page 16: Davey Water Products Guarantee
Davey Dealer from which you purchased the Davey product. Alternatively you can phone our Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
