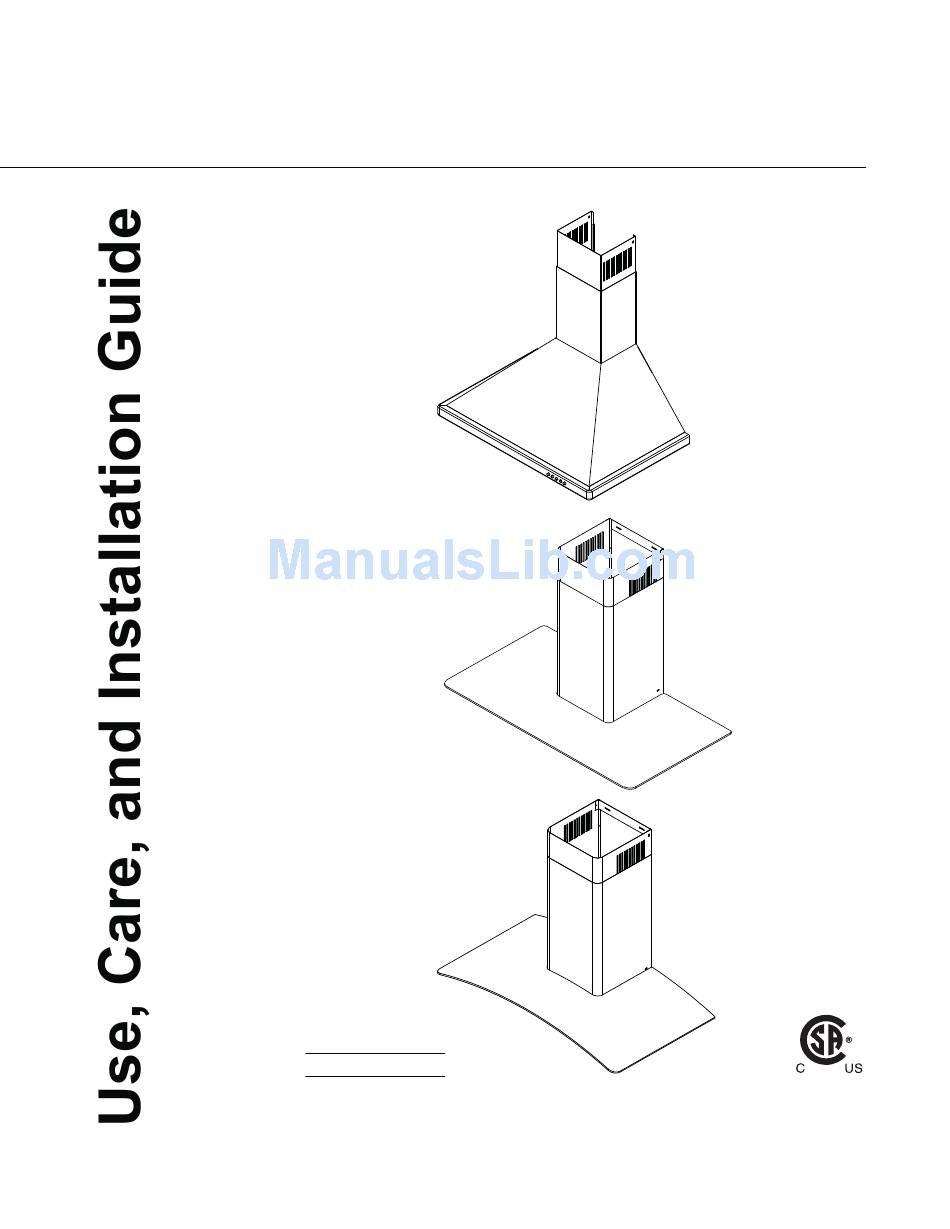

- Page 1 RH00130S RH00136S RH00230G RH00236G RH00330G RH00336G RH00336S Model number: Serial Number: DEC10.0101...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............+RRG 6SHFL¿FDWLRQV 8-10 ........... Mounting the Hood, RH001 ........Mounting the Hood, RH002 ........Mounting the Hood, RH003 ......13 Ductless Recirculating ..........
-
Page 4: Read And Save These Instructions
READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. - Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. NOT FOR USE IN OUTDOOR COOKING ENVIRONMENTS. CAUTION 7R UHGXFH ULVN RI ¿UH DQG WR SURSHUO\ H[KDXVW DLU RXWVLGH 'R QRW YHQW H[KDXVW DLU LQWR VSDFHV ZLWKLQ ZDOOV FHLOLQJV attics, crawl spaces or garages.
- Page 6 MODELS: RH001, RH002, RH003 PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs (pre-installed) 1 - Stainless steel mesh filter - RH002 &...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 34”. * Min. ducted (A) Min. recirc. (B) Max. It is important to install the hood at the proper mounting height.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. )DVWHQ DOO FRQQHFWLRQV ZLWK VKHHW PHWDO VFUHZV DQG WDSH DOO MRLQWV Z FHUWL¿HG 6LOYHU 7DSH RU 'XFW 7DSH Some Ducting Options Roof Pitch w/...
- Page 10 ” ” Min. Ducted - 27 ” Min. Recirc. - 32” Maximum - 42 ” 15/16 ” or 35 ” ” FRONT SIDE 15/16 ” ” ” 15/16 BACK...
- Page 11 ” ” Min. Ducted - 22” Min. Recirc. - 26” Maximum - 42” 11/16 ” ” 30” or 35 ” 7/16 FRONT SIDE 15/16 ” ” ” 15/16 BACK...
- Page 12 ” ” Min. Ducted - 23” Min. Recirc. - 27” Maximum - 42” 15/16 ” ” 30” or 35 3/16 ” FRONT SIDE ” 15/16 ” 15/16 ” BACK...
- Page 13 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. Duct Cover Bracket ´ PLQLPXP IURP UDQJH WRS 2. Plum and mark center line. ”...
- Page 14 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. ´ PLQLPXP IURP UDQJH WRS 2. Plum and mark center line. Duct Cover Bracket 0DUN PRXQWLQJ KHLJKW OLQH % ´...
- Page 15 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. ´ PLQLPXP IURP UDQJH WRS 2. Plum and mark center line. Duct Cover Bracket 0DUN PRXQWLQJ KHLJKW OLQH % ´...
- Page 16 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust IURP FRRNLQJ DUH GUDZQ DQG ¿OWHUHG E\ D VHW RI RSWLRQDO FKDUFRDO ¿OWHUV 7KH DLU LV WKHQ SXUL¿HG DQG UH circulated back within the home.
- Page 17 Blower Off Lights On/Off Blower Speed Selection Blower Off The blower will be powered off by pressing: Blower Speed Selection Select one of three speed levels by pressing: Lights On/Off Power lights on and off by pressing:...
- Page 18 SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
-
Page 19: Replacing Light Bulbs
REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. 5HPRYH E\ WXUQLQJ EXOE FRXQWHU FORFNZLVH 1RWH %XOE GRHV QRW XQVFUHZ LW WXUQV GHJUHHV stops and falls out. - Page 20 TROUBLESHOOTING PROCEDURES Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 21 RH00130S/136S 3.3A RH00230G/236G 3.3A RH00330G/336G/336S 426W 326W...
- Page 22 DESCRIPTION PART# Replacement Parts /LJKW %XOE *8 : HDFK =% Optional Accessories 5HFLUFXODWLQJ .LW 5+5.6 IRU 5+ 5+5.6 IRU 5+ 5+5.6 IRU 5+ Replacement Charcoal Filter Z0F-C002 'XFW &RYHU ([WHQVLRQ XS WR ¶ FHLOLQJ 5+(;6 IRU 5+ 5+(;6 IRU 5+ 5+ To order parts, visit us online at www.ventingservices.com or call us at 1.888.750.1698...
