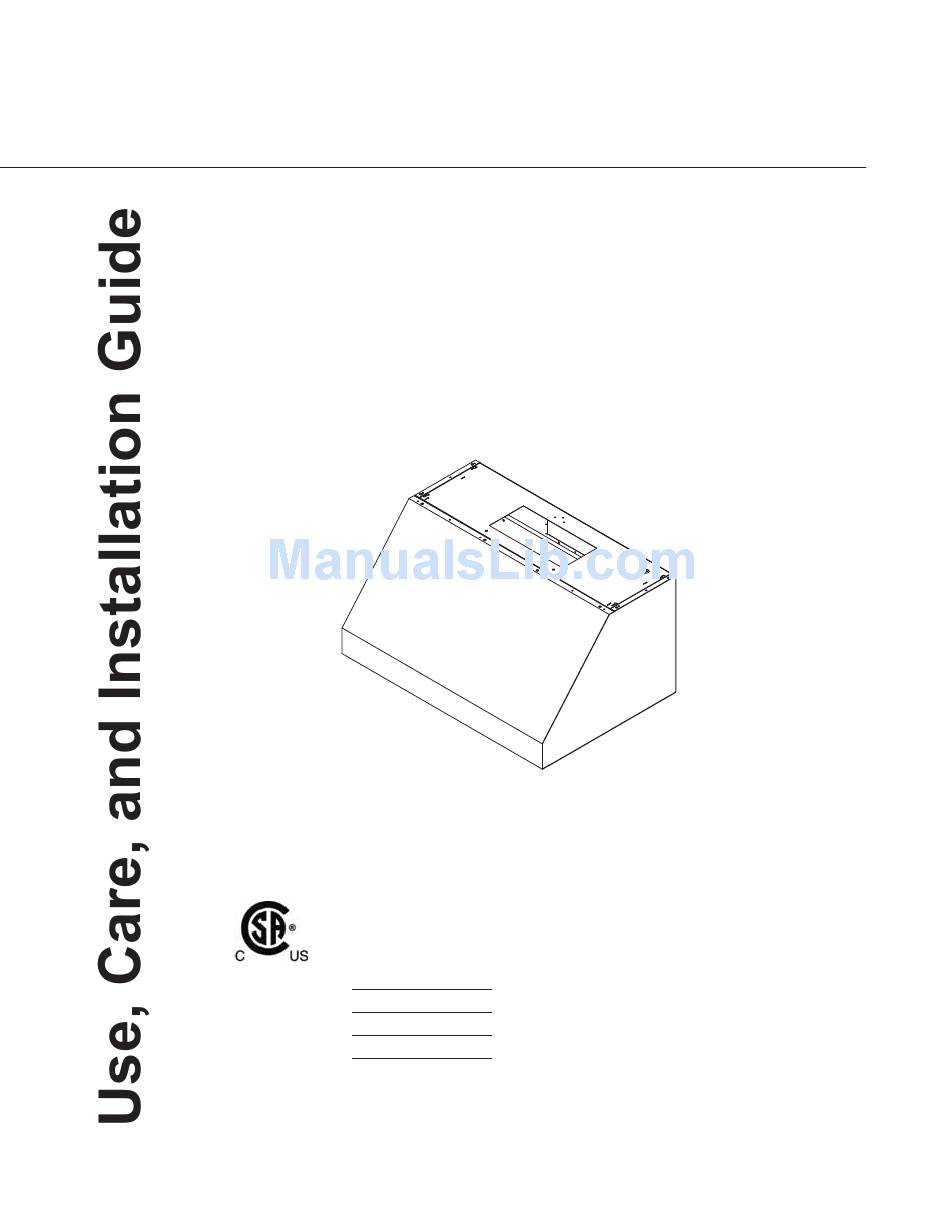

- Page 1 RH70230AS RH70236AS RH70248AS Model number: Serial Number: Date of Purchase: Sales Dealer: AUG13.0201...
-
Page 3: Table Of Contents
SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifi cations ............... Electrical ................. Mounting the Range Hood ........Horizontal Ducting Conversion ......FEATURES & CONTROLS Rotary Dial ..............MAINTENANCE Cleaning and Filter Removal ........ - Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi...
-
Page 6: Installation
MODELS: RH70230AS, RH70236AS, RH70248AS PARTS SUPPLIED 1 - Hood 3 - Baffl e fi lters (2 for RH70230AS) 2 - Halogen light bulbs (pre-installed) 1 - 10” round transition adapter 1 - Top Ducting Cover Plate 1 - Hardware package... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
- Page 8 Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 12" 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could 18"...
-
Page 9: Ducting Options
WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape. Some Ducting Options Roof Pitch w/ Flashing &... - Page 10 Top View Side View 2 3/4” 14 3/16” 10 3/8” 1 3/4” 4 5/16” 6” 8 9/16” 12” 10 3/8” 18” 1 1/16” 11 9/16” 4” 9 15/16” 24” 29 7/8” (30”) 35 7/8” (36”) 47 7/8” (48”) Back View Back View Ducting &...
- Page 11 ELECTRICAL WARNING All Electrical work must by performed by qualifi ed electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances.
-
Page 12: Specifi Cations
5. Mark center line of wood board. Center and align top of board with line B. Secure wood board to studs using (4) M4 wood screws. Wood Board Dimensions: (W x D x H) RH70230AS - 27” x 1/2” x 4” RH70236AS - 33” x 1/2” x 4” 26”... - Page 13 1. Disconnect both blower plugs. 2. Remove (4) screws attaching dual blower plate to top of interior body of hood. Remove dual blower from hood body. 3. Remove knock out plate A from back of hood 4. Position dual blower at back of hood. Tuck dual body using fl...
-
Page 14: Lights
1 Blower On/Off/Speed Selection 2 Lights Dim/Bright/Off 1 Blower On/Off/Speed Selection Rotate dial to change speed levels, (1) for low speed, (2) for medium speed and (3) for high speed 2 Lights Dim/Bright/Off Rotate dial to change light settings, (1) for dim light and (2) for bright light... - Page 15 SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser. After cleaning, you may use non-abrasive stainless steel polish/ cleaners, to polish and buff out the stainless luster and grain.
- Page 16 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
-
Page 17: Troubleshooting
TROUBLESHOOTING PROCEDURES FOR RH702 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2. - Page 18 RH70230AS/RH70236AS/RH70248AS...
- Page 19 DESCRIPTION PART # Replacement Parts Light Bulb MR16 (GU10) 50W (each) Z0B-0020 Optional Accessories Back Splash (30”) AK0710 Back Splash (36”) AK0716 Back Splash (48”) AK0718 12” Duct Cover (30”) AK0720 12” Duct Cover (36”) AK0726 12” Duct Cover (48”) AK0728 To order parts, please call us at 1.888.750.1698...
-
Page 20: Warranty
STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
