Summary of Contents for Yale RH10836AS

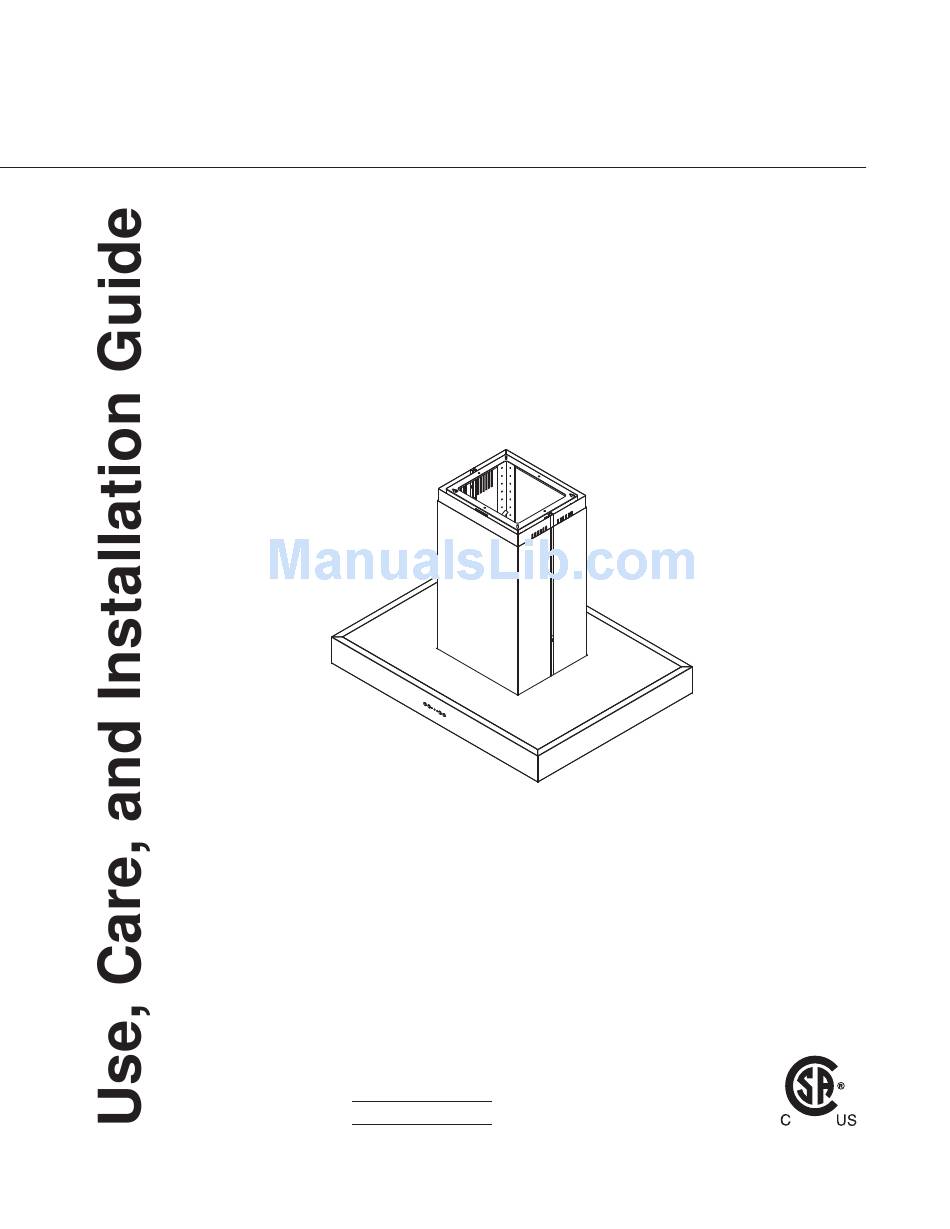

- Page 1 RH10836AS RH10842AS Model number: Serial Number: JUN15.0101...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ......................Mounting the Hood 9-10 ............. Ductless Recirculating ..........FEATURES & CONTROLS Electronic Controls ............. MAINTENANCE Hood and Filter Cleaning .........
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 Electrical Diagram on product. and install appropriate connector if necessary. RH10836AS, RH10842AS - 500 Watts, 4.2 Amps Power consumption shown above is the default power specs. Hoods with CFM Selector Technology enabled will consume less power. See wiring diagram at the end of this manual for more information.
- Page 6 MODELS: RH10836AS. RH10842AS PARTS SUPPLIED (2) Thick Trim Pieces (2) Top Duct Covers (1) Top Support Frame Front of Hood Cut-Out Shaded Area (1) Paper ceiling template (2) Thin Trim Pieces (1) Bottom Support Frame (2) Bottom Duct Covers (1) 6” round damper (pre-installed) (4) 3/16 *1/2”...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces T otal length x used length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
- Page 8 ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6” to 7” or 8”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.
- Page 9 and installer. WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 Side Front 12” 14” ” 1/16 STANDARD min. ducted - 28” min. recirc. - 30” max. - 41” RHEX108S EXTENSION min. ducted - 50 1/2” min. recirc. - 54 1/2” max. - 79” , 41 ” 7/8” ” " 3/16...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. Ceiling Joists Wood Blocking Top Support Frame Support Frame Arm FIG. B Bottom Support Frame Top Support Frame Bottom Support Frame (secures to top of blower housing) back Key Holes Blower Housing...
- Page 12 Cable Lock Top Support Frame by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. Top Duct Covers Thick Trim Piece Cable Lock Thin Trim Piece Bottom Duct Covers FIG. E Bottom Support Frame FIG.
- Page 13 We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct is not possible should you recourse to converting the hood into a recirculating hood. RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED) Hood Models Part No. Filters & Brackets in pkg. RH10836AS RHRK108S RH10842AS RHRK118S Air Diverter Plate 1.
- Page 14 Blower On/Off Lights Bright/Dim/Off Blower Speed Selection Delay Off Timer Blower On/Off Press to turn blower on and off. If lights are on they will also switch off when this button is pressed. CFM Selector Verification CFM Selector allows the installer to set the maximum fan CFM to align with local codes and regulations.
- Page 15 SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
- Page 16 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. stops and falls out.
- Page 17 TROUBLESHOOTING PROCEDURES FOR RH108 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 18 RH10836AS/RH10842AS CFM Selector 390 CFM - Fan Max. 289W @ 2.6A CFM Selector 290 CFM - Fan Max. 281W @ 2.4A...
- Page 19 DESCRIPTION PART# Replacement Parts Optional Accessories Recirculating Kit, RH10836AS RHRK108S Recirculating Kit, RH10842AS RHRK118S Extension Duct Cover RHEX108S Order replacement parts from us by calling 1.888.750.1698...
- Page 20 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
