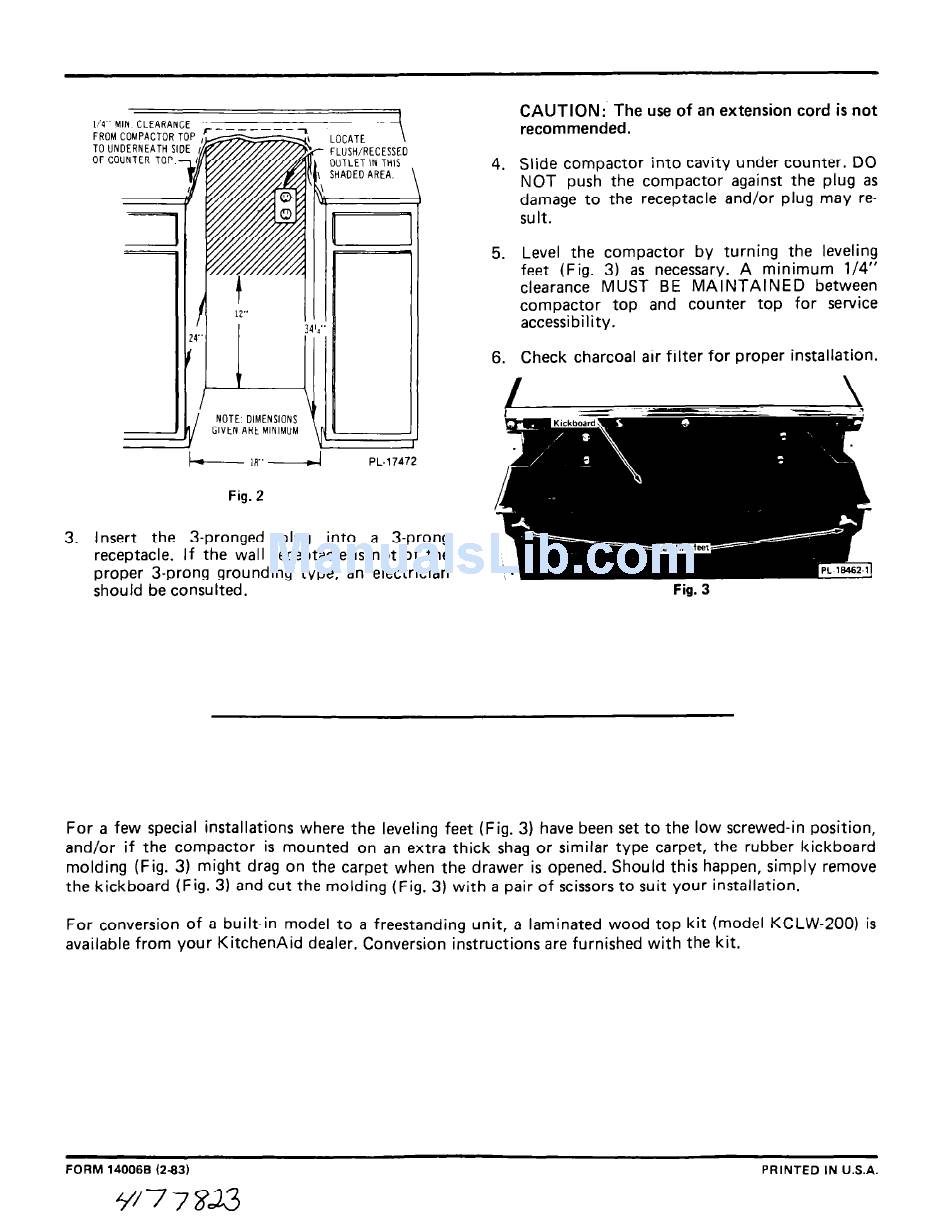

KitchenAid KCS-200 Installation Instructions page 3

Hide thumbs

Advertisement

NOTE: DIMENSIONS
GIVEN ARE MINIMUM
- IF' -
Fig. 2
PL-17472
3.
Insert
the
3-pronged
plug
into
a 3-prong
receptacle.
If the wall receptacle
is not of the
proper
3-prong
grounding
type,
an electrician
should be consulted.
CAUTION:
The use of an extension
cord is not
recommended.
4. Slide compactor
into cavity under counter.
DO
NOT
push the compactor
against the plug as
damage to the receptacle
and/or
plug may re-
sult.
5.
Level the compactor
by turning
the leveling
feet (Fig.
3) as necessary.
A minimum
l/4"
clearance
MUST
BE MAINTAINED
between
compactor
top
and counter
top
for
service
accessibility.
6.
Check charcoal air filter for proper installation.
For a few special installations
where the leveling
feet (Fig. 3) have been set to the low screwed-in
position,
and/or
if the compactor
is mounted
on an extra thick
shag or similar
type carpet, the rubber kickboard
molding
(Fig. 3) might drag on the carpet when the drawer
is opened. Should this happen, simply
remove
the kickboard
(Fig. 3) and cut the molding
(Fig. 3) with a pair of scissors to suit your installation.
For conversion
of a built-in
model to a freestanding
unit, a laminated
wood top kit (model KCLW-200)
is
available from your KitchenAid
dealer, Conversion
instructions
are furnished
with the kit.
FORM
140068
(283)
PRINTED
IN U.S.A.
