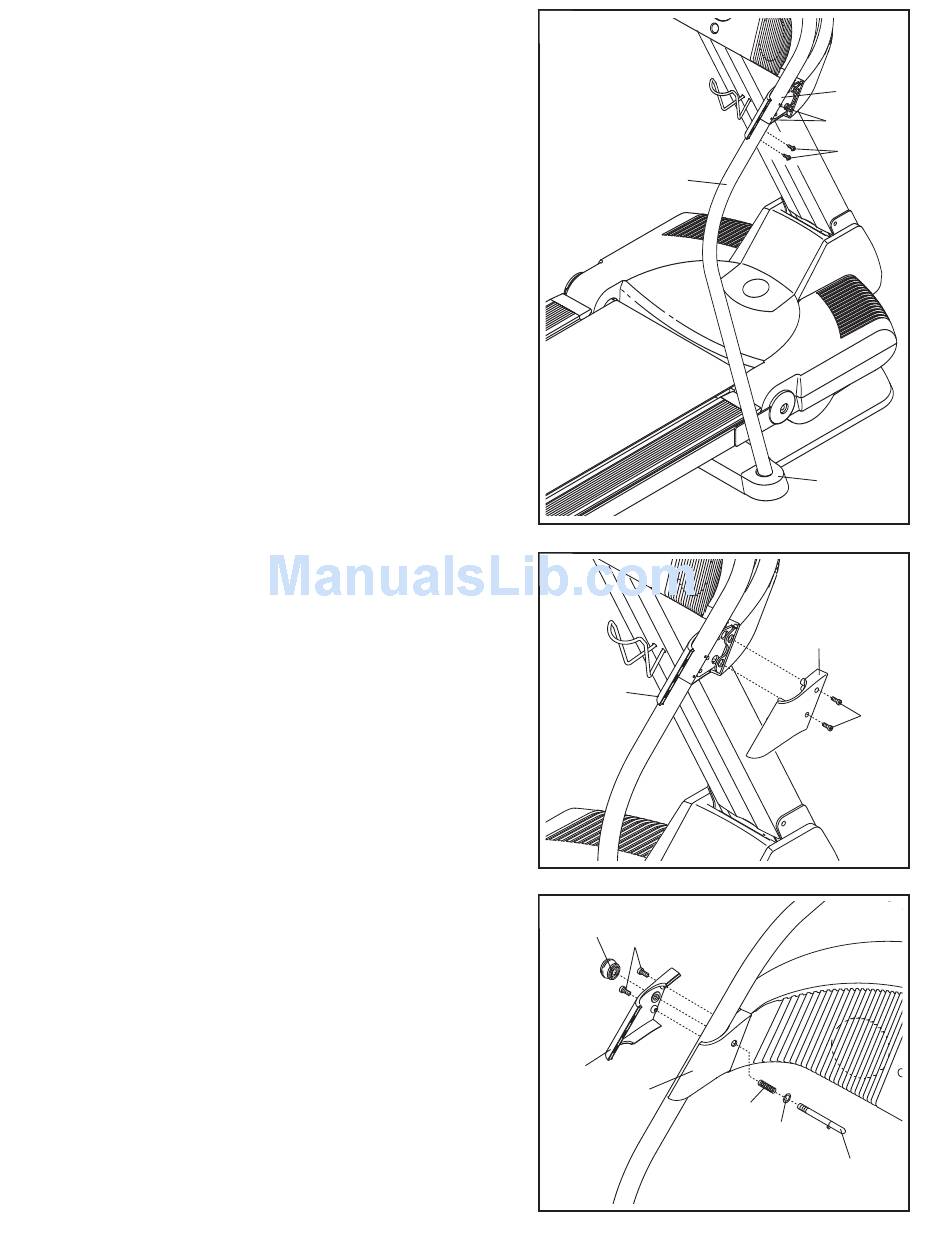

2. Insert a Handrail (67) into the Upper Handrail (68) as
shown. The lower end of the Handrail should sit on the
Base Hood (105) as shown. (Note: It may be necessary to
twist the Handrail as you insert it. It may also be neces-
sary to loosen the two Screws [3] several turns.) Next,
tighten two 3/4" Screws (66) into the Handrail. If you
loosened the Screws, retighten them.
Attach the other Handrail (not shown) to the left side of
the Incline Trainer in the same way.
3. Interlock the tabs on the Right Outer Cover (88) with the
tabs on the Right Inner Cover (65). Attach the Right Outer
Cover with two 3/4" Bolts (60) as shown
4. Interlock the tabs on the Left Outer Cover (61) with the
tabs on the Left Inner Cover (106). Attach the Left Outer
Cover with two 3/4" Bolts (60).
Remove the knob from the pin. Make sure that the col-
lar and the spring are on the pin. Insert the threaded
end of the pin through the hole in the Left Inner Cover
(106) and the hole in the Left Outer Cover (61). Tighten
the knob back onto the pin.
