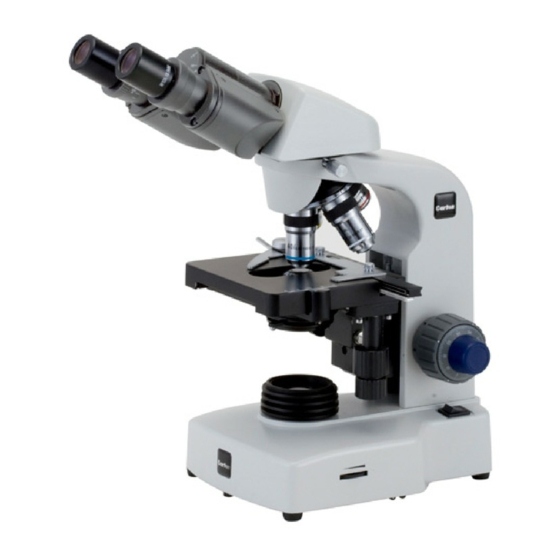

CN Series Microscopes
Instruction Manual

Advertisement

loading

Related Manuals for Carton CN Series

Summary of Contents for Carton CN Series

  • Page 1 CN Series Microscopes Instruction Manual...
  • Page 2 COMPONENTS Model CN-A DESCRIPTIONS Interpupillary Scale Right eyepiece tube Adjustable from 48mm through 75mm Right and Left Housings Eyepieces Revolving Nosepiece WF10x supplied as standard. Inward-faced (reversed) quadruple WF15x & WF20x are available revolver accepting objectives options. Objectives Left eyepiece tubes with dioptic 4x,10x, 40x and 100x provided, adjustment ring and 40x and 100x retractable and...
  • Page 3 DESCRIPTIONS Substage Condenser 21. Mechanical stage control knob With iris diaphragm and swing-out Coaxial drive control on right filter holder hand. Swing-out Filter holder 22. On-Off switch for illuminator For white diffusion filter provided “I”=On, ”0”=Off 10. Locking screw for substage 23.
  • Page 4 SETTING UP YOUR MICROSCOPE After opening the styroform container, check that you have the following parts and accessories. Microscope stand complete ● Binocular or Trinocular Viewing head ● WF10x Eyepiece(s) (pair for Binocular or Trinocular head) ● Objectives in plastic container ●...
  • Page 5 Make the left eye adjustment without moving the focusing handle. The CN series has Siedentopf type binocular or trinocular head is designed to leave the mechanical tube length of 160mm unchanged when the interpupillary distance is adjusted.
  • Page 6 Objectives: DIN acrhomatic objectives are corrected for chromatic(colour) aberration. Your microscopes may be equipped with Semi-plan or Plan achromatic objectives which minimize the effects of curvature of field and produce flatter images. The 4 objec- tives will be parfocal when properly fix to the nosepiece so it should not be neces- sary to make large adjustments in focus when changing objectives.
  • Page 7 Field Number of eyepiece Magnification of objective So, the larger Field Number of eyepiece makes wider field of view for the objective. WF15x with retainer for micrometer disc and WF20x without retainer are available as option. Mechanical Stage: The long coaxial drive control mechanical stage is provided and makes the operation much easier.

  • Page 8: Iris Diaphragm

    Substage Condenser: Abbe type substage condenser (NA 1.25) focusable with rack and pinion mechanism is provided. The top lens of the condenser is sealed to prevent damage from contact with oil. The condenser is replaceable with phase turret condenser. The functions of the condenser are to bring the light rays to a focus in the plane of the specimen and to furnish a suitable cone of light to the objective.

  • Page 9: Maintenance Of Microscope

    MAINTENANCE OF MICROSCOPE Model CN series microscope is designed such that only a minimum maintenance work is necessary. Nevertheless proper care will extend the life of the instrument considerably. There are five important rules you should observe.
  • Page 10 PHASE CONTRAST SYSTEM Phase contrast is a form of illumination which alters the normal path of light waves from an object to a wavelength shifted diffraction pattern thus allowing visualization of transparent or low contrast specimens. This allows living cells and suspensions to be viewed without the need for staining procedures.
  • Page 11 10. Using the focusing control of the Centering Telescope only, focus the rings to maximum clearness. 11. To achieve optimum performance, the bright ring must be positioned concen- tric with the darker ring at the center of view. This is done by using the knurled ring holding the illumination annulus located underneath the turret housing.
  • Page 12 TV MICROSCOPY Direct Focus Trinocular model provides the C-Mount tube as a standard accessory. Through the C-mount tube, the image produced by objective can be sent directly to CCTV cam- era. Compared with the secondary image produced with the TVA-45 camera adapter, the direct image becomes sharper and clearer, while the field of view be- comes narrower.
  • Page 13 Indirect Focus Model TVA-45 adapter is optionally available, allowing a CCTV camera to be con- nected with photo tube of microscope. The TVA-45 adapter has a built-in reducing lens to make the field of view wider and also make the magnification smaller than the direct focused image.
  • Page 14 PHOTOMICROGRAPHY WITH DIGITAL STILL CAMERA You can take photomicrographs with your SLR digital camera using optional accessories Model DG adapter and various kinds of T-mount adapter available according to your camera. How to mount SRL digital camera onto microscope Remove the mounted lens from your camera. Attach a T-mount adapter to the DG adapter.

  • Page 15: Optional Parts And Accessories

    OPTIONAL PARTS AND ACCESSORIES Heads: CNA471 Trinocular head, Siedentopf type, w/photo tube and C mount tube, without eyepiece CNA472 Binocular head, Siedentopf type, without eyepiece CNA473 Monocular head, without eyepiece Eyepieces: M9261-100 DIN Wide Field 10x FN18 , with retainer for reticle M9261-101 DIN Extra Wide Field 10x FN20 M9261-150 DIN Wide Field 10x, with retainer for reticle M9261-200 DIN Wide Field 20x...

  • Page 16: Standard Specifications

    Sealed NA1.25 DIN Plan Phase 10x, Siedentopf Abbe, Rack & Mechanical 3W LED with CN-PH WF10X(pair) 20x,40xR(sealed), binocular Pinion w/Phase stage Dimmer 100xR Oil turret Carton Optical Industries, Ltd. 27-11 Higashi Ueno 1-chome, Taito-ku, Tokyo 110-0015, Japan Email: im-ex@carton-opt.co.jp CN 110311...
