Datapath The VisionAV-SDI User Manual page 8

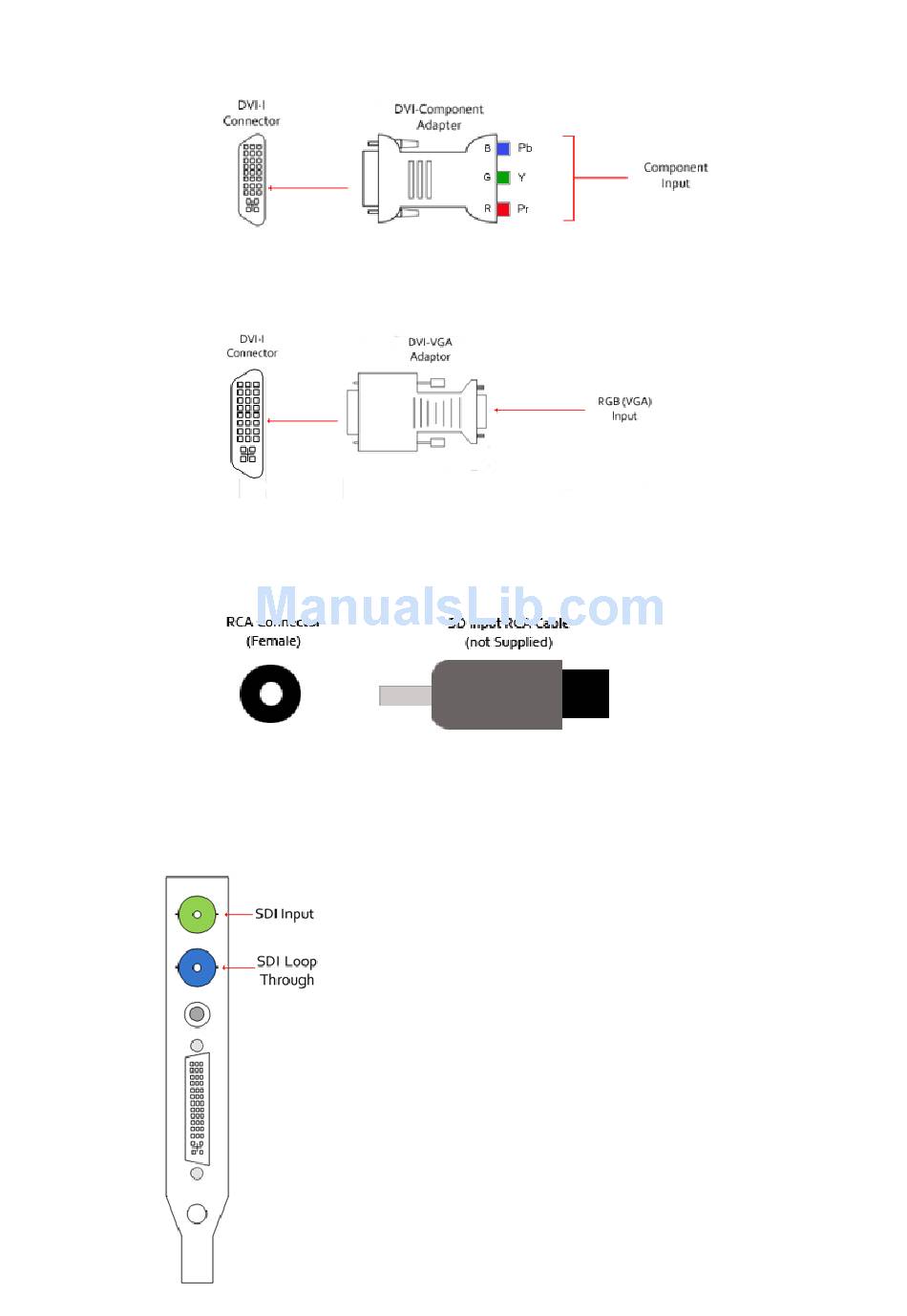

A Component input is connected to the DVI-I connector using the supplied DVI-Component Adapter:
An RGB (VGA) input is connected to the DVI-I connector using the supplied DVI-VGA Adapter:
A Standard Definition input is connected directly into the RCA (female) connector on the VisionAV-SDI
card:
SDI input is connected to the VisionAV-SDI using the BNC connector (cable not supplied):
Cable Length
The VisionAV-SDI supports cable lengths
of up to 150m. for 3G-SDI. This figure
is based on using low loss co-ax cable
(Belden 1694A).
6
