Summary of Contents for HIBLOW hp-40
-

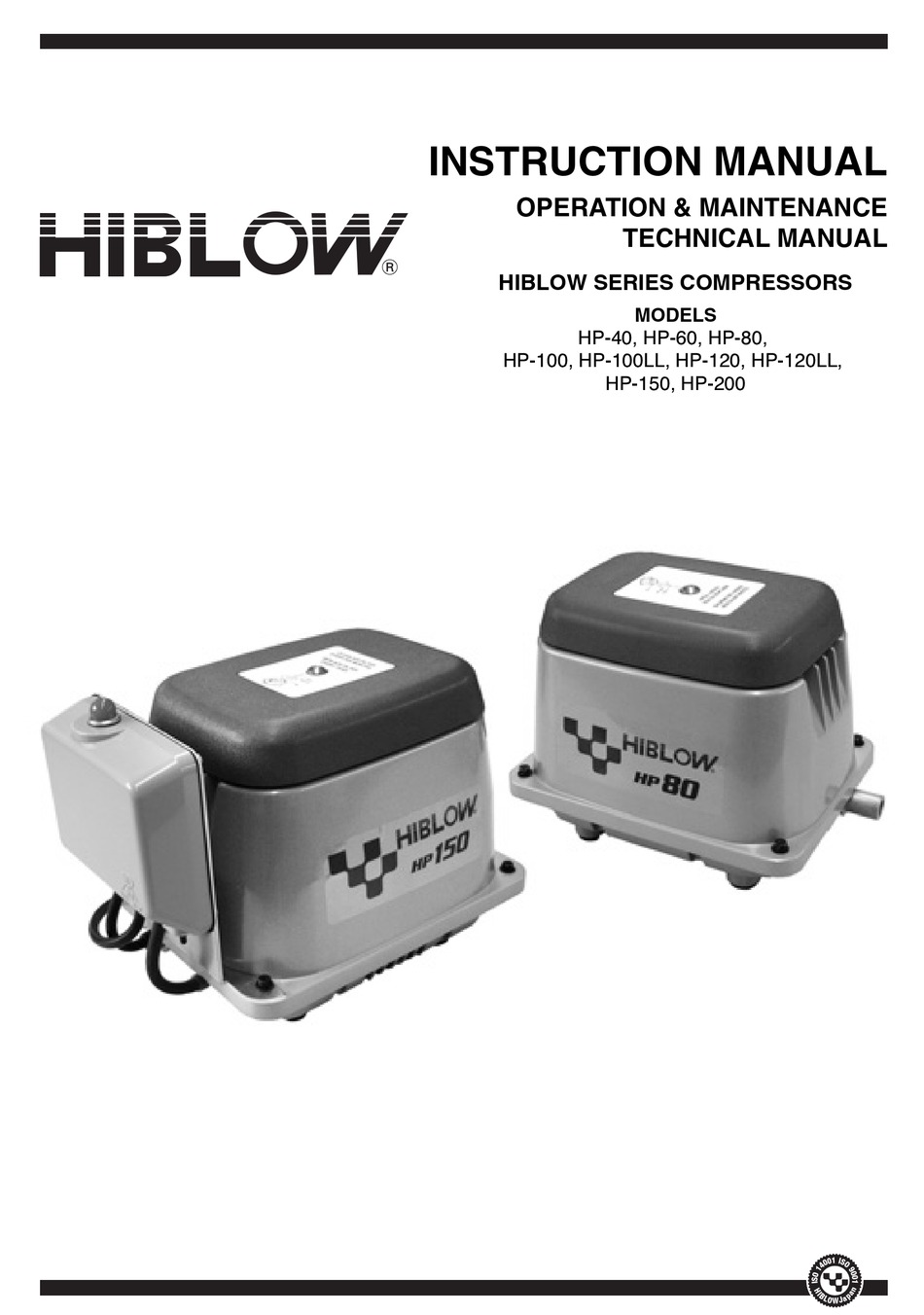

Page 1: Instruction Manual
INSTRUCTION MANUAL OPERATION & MAINTENANCE TECHNICAL MANUAL HIBLOW SERIES COMPRESSORS MODELS HP-40, HP-60, HP-80, HP-100, HP-100LL, HP-120, HP-120LL, HP-150, HP-200... -
Page 2: General Information
This is a hazard alert symbol: When you see this symbol, be aware that personal injury or property damage is possible. The hazard is explained in the text following the symbol. Read the information carefully before proceeding. The following is an explanation of the three different types of hazards: Severe personal injury or death will occur if hazard is ignored. -
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS FOR ALL GROUNDED, CORD-CONNECTED PRODUCTS This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This is equipped with a cord having a grounding wire with an appropriate grounding plug. -
Page 4: Extension Cords
EXTENSION CORDS Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current that your product will draw. A cord no longer than 100 feet, No.16 AWG extension cord should be used. - Page 5 Reinstall the Upper housing Reinstall the 4 screws holding the Frame cover on. (For HP-100/120, Refer to Fig.4- ) Reinstall the Sound absorber (except for HP-40, HP-100LL, HP-120LL). Reinstall the Upper housing and tighten corner screws. (Refer to Fig.4- )
- Page 6 OPERATION WARNING: Lower housing and pump surfaces can become very hot during operation. Do not touch these surfaces until unit has been shut off and allowed to cool. CAUTION: Carefully examine the air pump after installation. It should not be plugged in if there is water on parts not intended to be wet.
- Page 7 Upper housing, and gently pry apart. Remove the Sound absorber. (Refer to Fig.4- , except for HP-40, HP-100LL, HP-120LL) Remove the screws from all the corners of Frame cover for subsequent removal of the Frame cover.
- Page 8 Fig. 4 Screw Upper housing Screwdriver L-tube inserting position Screw Head (Casing) block Sound absorber Screw Hose band L-tube Frame cover Screw Head (Casing) A Valve chamber packing Head (Casing) B (Refer to Fig.5) Replacing Diaphragm mounting block After removing Head (Casing) block, remove one of the hex nut (U-lock nut) and washer in the center of the diaphragm.
- Page 9 Operation of Compressor Alarm Module General Information Do not attempt to open the alarm module. If the unit is connected to electricity, Danger: opening of the alarm module can result in a risk of electric shock. Service of the alarm module should only be done by a qualified electrician or Danger: serviceman.
-
Page 10: Troubleshooting
TROUBLE SHOOTING Symptom Possible cause Point to check up Remedy Electrical connection Plug and outlet Plug securely into outlet Change power cord, electromagnet Pump fails to work Wire cut inside the cord Check with tester or lead wire SP switch Check activated Safety Screw... -
Page 11: Your Warranty
(30) days after discovery of the defect to Hiblow USA, Inc., 1300 Tefft Court Suite 8, Saline Michigan USA 48176. Buyer is responsible for freight charges both to and from Hiblow in all cases. - Page 12 8-16 HATCHONISHIMACHI, TAKATSUKI, OSAKA, JAPAN 569-0095 TEL +81-72-684-0805 FAX +81-72-684-0807 1300 Tefft Ct. Suite 8, Saline, MI 48176 TEL 734-944-5043 FAX 734-944-5163 http://www.hiblow-usa.com...
